Diagram
Mavic 2 Enterprise Advanced (L1TE)
2
3
1
4
5
A
B
6
7
8
9
10
11
12
15
13
16
14
17
18
19
19
21
22
20

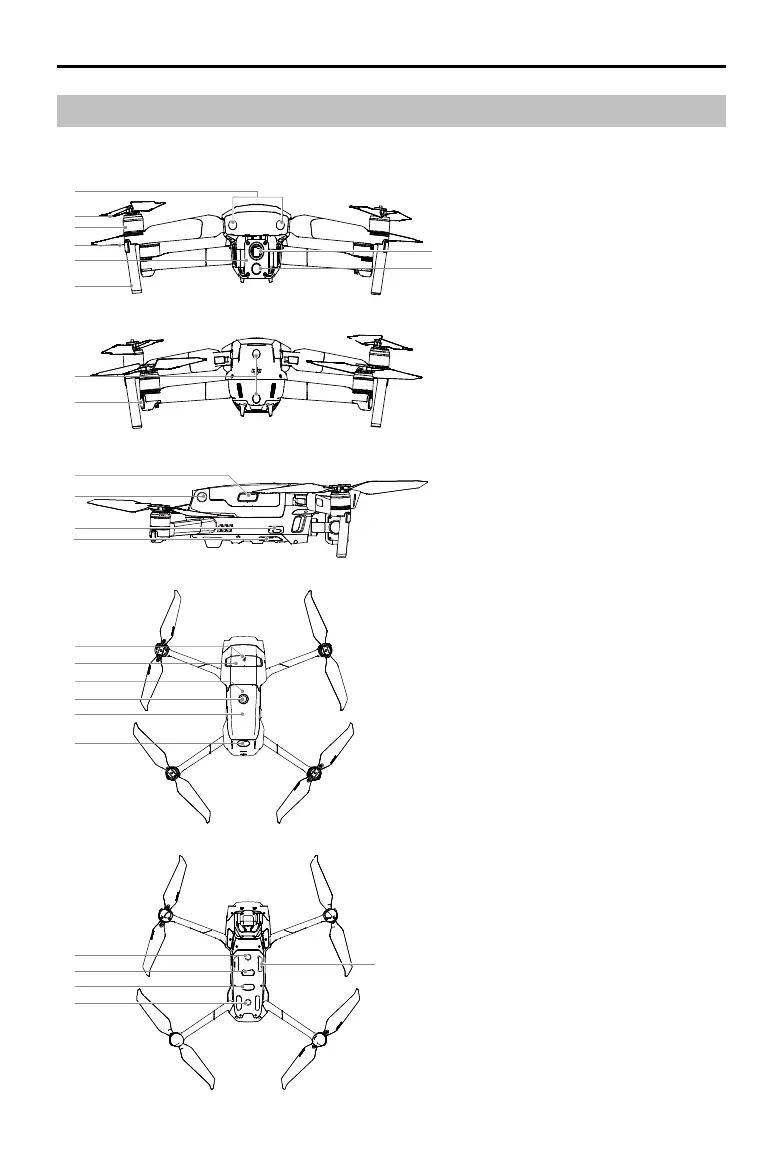

1. Forward Vision System
2. Propellers
3. Motors
4. Front LEDs
5. Gimbal and Camera
A. Thermal Camera
B. Visual Camera
6. Antennas
7. Backward Vision System
8. Aircraft Status Indicator
9. Battery Buckles
10. Lateral Vision System
11. USB-C Port
12. Link Button/Linking Status
Indicator
13. Extended Port (can be used to
connect accessories)
14. Extended Port Cover
15. Battery Level LEDs
16. Power Button
17. Intelligent Flight Battery
18. Upward Infrared Sensing
System
19. Downward Vision System
20. microSD Card Slot
21. Downward Infrared Sensing
System
22. Auxiliary Bottom Light (can be
used as a beacon in low light
conditions)
