Vision Systems and Infrared Sensing Systems
The Mavic 2 Pro/Zoom is equipped with Forward, Backward, Downward, and Lateral Vision Systems,
and Upward and Downward Infrared Sensing Systems, providing omnidirectional obstacle sensing (if
lighting conditions are adequate).
The main components of the Forward, Backward, and Downward Vision Systems are six cameras
located on the nose, rear side, and the underside of the aircraft. Lateral Vision Systems are two cameras
located on either side of the aircraft.
The main components of the Upward and Downward Infrared Sensing Systems are two 3D infrared
modules located on the upper and underside of the aircraft.
The Downward Vision System and Infrared Sensing System helps the aircraft maintain its current
position and hover in place more precisely and to y indoors or in other environments where a GPS
signal is unavailable. In addition, the Auxiliary Bottom Light located on the underside of the aircraft
improves visibility for the Downward Vision System in weak light conditions.
Detection Range

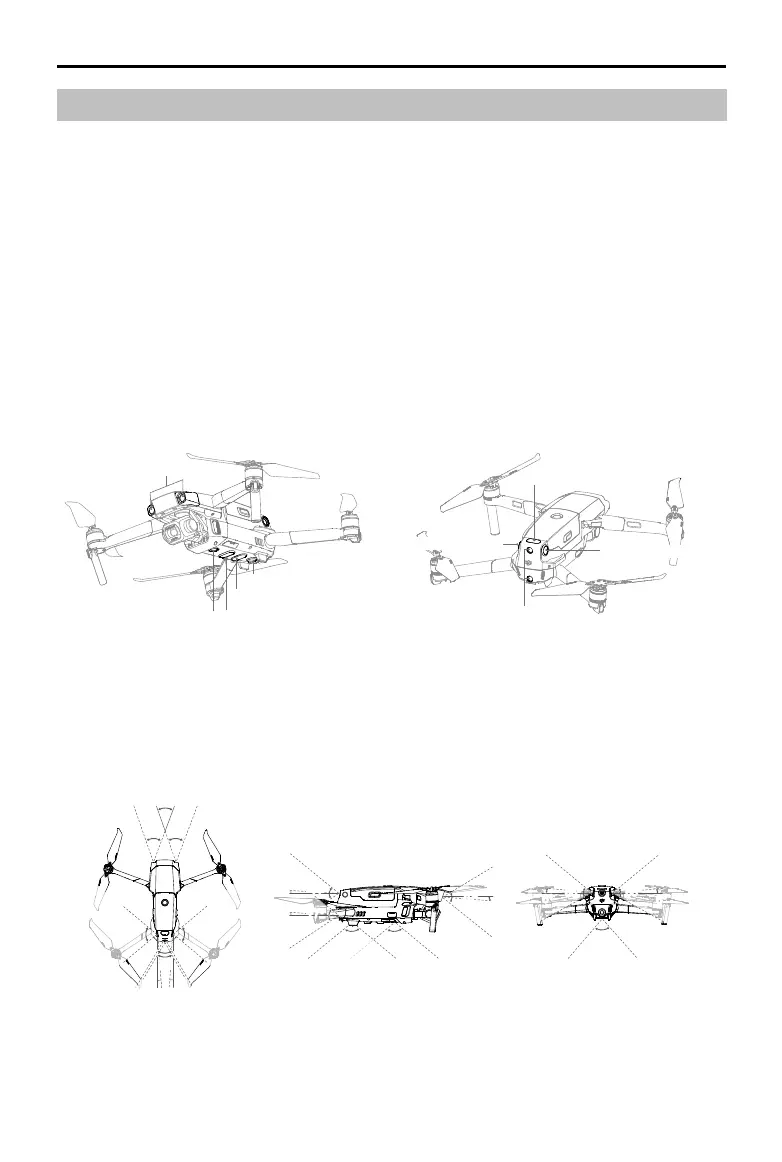

The detection range of the Vision Systems is depicted as followed. Please note that the aircraft cannot
sense or avoid the obstacles that are not within detection range.
83°
65°
6°
65°
6°
40° 40°
40°
80°
4°
80°
4°
60°
100°100°
5°
70°
77°
3°
77°
3°
Forward Vision System
Downward Vision System
Downward Vision System
Downward Infrared Sensing System
Auxiliary Bottom Light
Upward Infrared Sensing System
Backward Vision System
Lateral Vision System
Lateral Vision System
