Remote Controller
Built into the remote controller is DJI’s long-range transmission technology OcuSync 2.0, offering a
maximum transmission range of 5 mi (8 km) and displaying video from the aircraft to DJI GO 4 on your
mobile device at up to 1080p. Easily control the aircraft and camera using the onboard buttons. An
onboard LCD screen gives real-time aircraft data information and the detachable control sticks make
the remote controller easier to store.
In a wide-open area with no electromagnetic interference, OcuSync 2.0 smoothly transmits video links
at up to 1080p, no matter how the ight attitude is changed. The remote controller works at both 2.4
GHz and 5.8 GHz, automatically selecting the best transmission channel. OcuSync 2.0 reduces the
latency to 120-130 ms by improving the camera performance through the video decoding algorithm and
the wireless link.
Auto Focus is supported during shooting even in low light conditions. The Mavic 2 Pro supports
aperture and shutter adjustment and the Mavic 2 Zoom supports zoom in/out by using the Zoom
Adjustment Dial.
The built-in battery has a capacity of 3950 mAh and a maximum run time of 2 hours and 15 minutes.
The remote controller charges the mobile device with a charging ability of 500 mA@5V. The remote
controller automatically charges Android devices. For iOS devices, rst be sure that charging is enabled
in DJI GO 4. Charging for iOS devices is disabled by default and needs to be enabled each time the
remote controller is powered on.

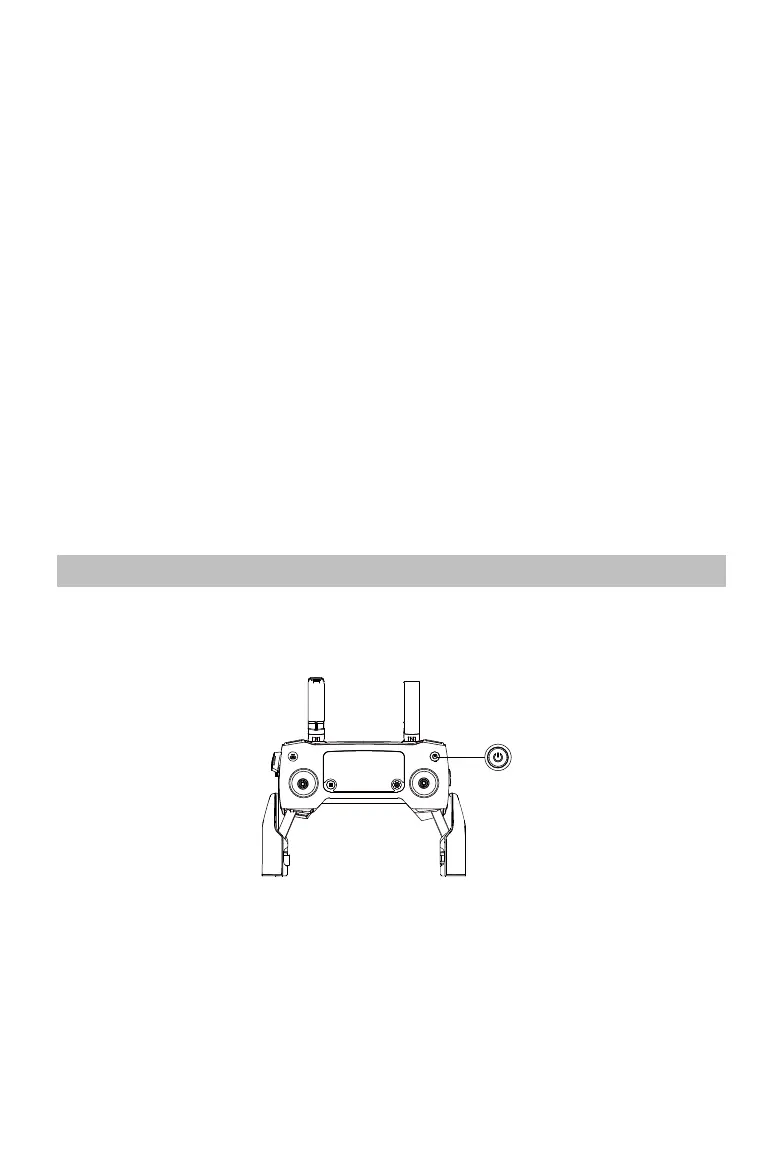

Using the Remote Controller
Press the Power button to display the current battery level on the LCD screen. Press once, then again,
and hold to turn the remote controller on or o.

dji MAVIC 2 ZOOM Specifications

General

Megapixel	12 MP
Sensor type	CMOS
Video resolutions	1920 x 1080, 3840 x 2160 pixels
Maximum frame rate	120 fps
Optical sensor size	1/2.3 \
Camera shutter speed	8 – 1/8000 s
Streaming capability	Yes
Supported video modes	1080p, 2160p
Image formats supported	DNG, JPEG, RAW
Video formats supported	AVC, H.264, H.265, HEVC, MOV, MP4
Maximum image resolution	4000 x 3000 pixels
Maximum video resolution	3840 x 2160 pixels
Field of view (FOV) angle	83 °
Bitrate at maximum video resolution	100 Mbit/s
Built-in processor	-
Type	Quadcopter
Product color	Gray
Construction type	Ready-to-fly (RTF)
Moving control functions	Backward, Downward, Forward, Turn left, Turn right
USB ports quantity	1
Operating frequency	2400 - 2483, 5725 - 5850 MHz
Maximum device width	160 mm
Maximum speed	20 m/s
Frequency band	2.400 - 2.483, 5.725 - 5.850 GHz
Number of axis	3
Number of rotors	4 rotors
Maximum tilt angle	35 °
Hovering time (max)	29 min
Maximum flight time	31 min
Maximum ascent speed	5 m/s
Maximum descent speed	3 m/s
Maximum weight capacity	- kg
Maximum wind resistance	10 m/s
Vertical hover accuracy	0.5 m
Horizontal hover accuracy	1.5 m
Maximum operating distance	8000 m
Maximum pitch angular velocity	200 °/sec
Battery voltage	15.4 V
Battery capacity	3850 mAh
Transmitter battery capacity	3950 mAh
Output power	60 W
AC adapter power	80 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.41 A
AC adapter output voltage	17.6 V
Equivalent Isotropically Radiated Power (EIRP)	26 dBmW
Operating temperature (T-T)	-10 - 40 °C
Cables included	Lightning, Micro-USB, USB Type-C
Internal memory	8 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB

Weight and Dimensions

Depth	322 mm
Width	242 mm
Height	84 mm
Weight	905 g
Battery weight	297 g
