Product Prole
Introduction
The DJI Mavic 2 Pro/Zoom features omnidirectional Vision Systems and Infrared Sensing Systems.
Effortlessly capture complex shots using signature DJI technologies such as Obstacle Sensing and
Intelligent Flight Modes like Hyperlapse, Point of Interest, ActiveTrackTM 2.0, TapFly, QuickShots, and
Advanced Pilot Assistance Systems (APAS).
The Mavic 2 Pro features a fully stabilized 3-axis gimbal with a 1" CMOS sensor camera (jointly
developed by DJI and Hasselblad) that shoots 4K video, 20-megapixel photos, and supports lters.
The Mavic 2 Zoom features a fully stabilized 3-axis gimbal camera that shoots 4K video, 12-megapixel
photos, supports 2x optical zoom, and 24-48 mm lens, and supports lters.
The Mavic 2 Pro/Zoom uses the latest technology to increase stability and footage quality, reducing the
Mavic 2 Zoom angle vibration range to within ±0.005° and Mavic 2 Pro angle vibration range to within
±0.01°.
Built into the remote controller is the DJI’s long-range transmission technology OCUSYNC
TM
2.0, oering
a maximum transmission range of 5 mi (8 km) and displaying video from the aircraft on to DJI GO 4 on
your mobile device at up to 1080p. The remote controller works at both 2.4 GHz and 5.8 GHz, and it
can select the best transmission channel automatically without any latency. The aircraft and camera can
easily be controlled using the onboard buttons. An onboard LCD screen gives real-time aircraft data
information, and the detachable control sticks make the remote controller easier to store. The maximum
run time is 2 hours and 15 minutes. The Mavic 2 Pro/Zoom boasts a maximum ight speed of 44.7 mph
(72 kph) and a maximum ight time of 31 minutes.
The major difference between the Mavic 2 Pro and Mavic 2 Zoom is the camera. The general
descriptions in this manual apply to both Mavic 2 Pro/Zoom.
Maximum flight time was tested in an environment with no wind while flying at a consistent 15.5
mph (25 kph) and the maximum flight speed was tested at sea level altitude with no wind. These
values are for reference only.
The remote controller reaches its maximum transmission distance (FCC) in a wide-open area
with no electromagnetic interference at an altitude of about 400 ft (120 m). The maximum
runtime was tested in a laboratory environment. This value is for reference only.
5.8 GHz is not supported in some regions. Please observe the local laws and regulations.
Preparing the Mavic 2 Pro/Zoom
Preparing the Aircraft

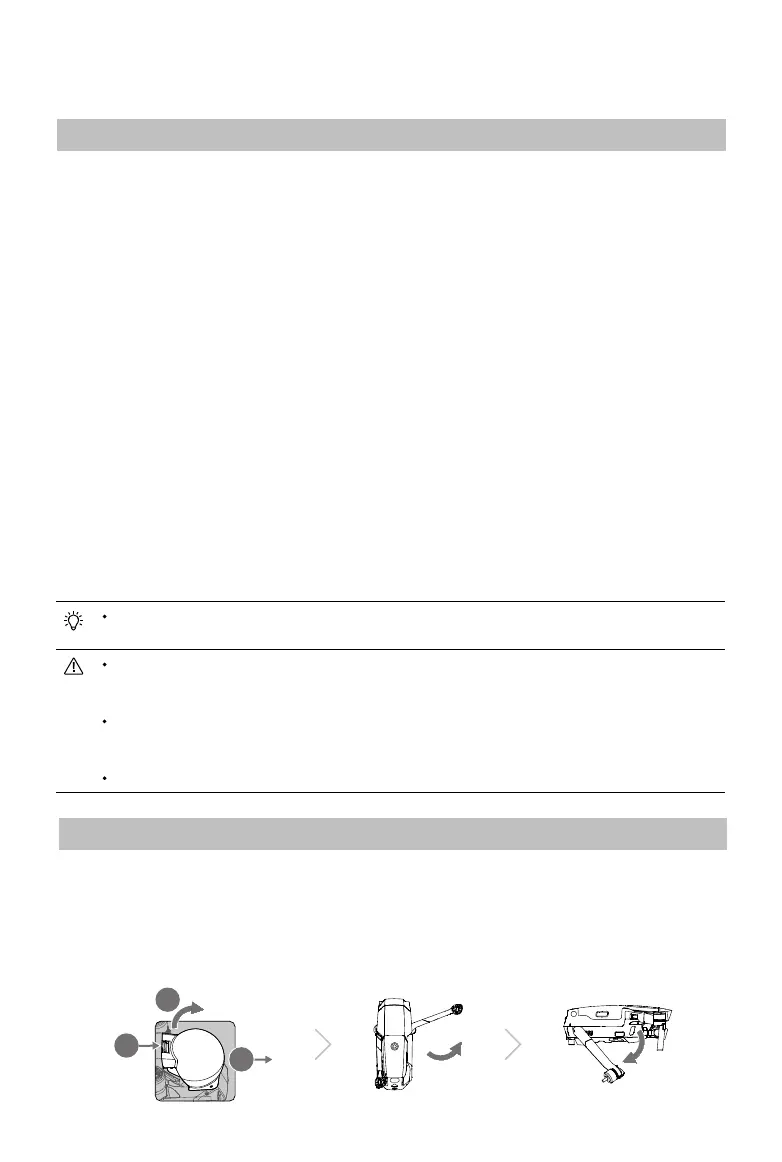

All aircraft arms are folded before the aircraft is packaged at the factory. Follow the steps below to
unfold the aircraft.
1. Remove the gimbal cover from the camera.
2. Unfold the front arms, and then unfold the rear arms.
1
2
3

dji MAVIC 2 ZOOM Specifications

General

Megapixel	12 MP
Sensor type	CMOS
Video resolutions	1920 x 1080, 3840 x 2160 pixels
Maximum frame rate	120 fps
Optical sensor size	1/2.3 \
Camera shutter speed	8 – 1/8000 s
Streaming capability	Yes
Supported video modes	1080p, 2160p
Image formats supported	DNG, JPEG, RAW
Video formats supported	AVC, H.264, H.265, HEVC, MOV, MP4
Maximum image resolution	4000 x 3000 pixels
Maximum video resolution	3840 x 2160 pixels
Field of view (FOV) angle	83 °
Bitrate at maximum video resolution	100 Mbit/s
Built-in processor	-
Type	Quadcopter
Product color	Gray
Construction type	Ready-to-fly (RTF)
Moving control functions	Backward, Downward, Forward, Turn left, Turn right
USB ports quantity	1
Operating frequency	2400 - 2483, 5725 - 5850 MHz
Maximum device width	160 mm
Maximum speed	20 m/s
Frequency band	2.400 - 2.483, 5.725 - 5.850 GHz
Number of axis	3
Number of rotors	4 rotors
Maximum tilt angle	35 °
Hovering time (max)	29 min
Maximum flight time	31 min
Maximum ascent speed	5 m/s
Maximum descent speed	3 m/s
Maximum weight capacity	- kg
Maximum wind resistance	10 m/s
Vertical hover accuracy	0.5 m
Horizontal hover accuracy	1.5 m
Maximum operating distance	8000 m
Maximum pitch angular velocity	200 °/sec
Battery voltage	15.4 V
Battery capacity	3850 mAh
Transmitter battery capacity	3950 mAh
Output power	60 W
AC adapter power	80 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.41 A
AC adapter output voltage	17.6 V
Equivalent Isotropically Radiated Power (EIRP)	26 dBmW
Operating temperature (T-T)	-10 - 40 °C
Cables included	Lightning, Micro-USB, USB Type-C
Internal memory	8 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB

Weight and Dimensions

Depth	322 mm
Width	242 mm
Height	84 mm
Weight	905 g
Battery weight	297 g
