dji MIC 2 User Manual

DJI Mic 2 User Manual
12
©
2024 DJI All Rights Reserved.
Method 2: Link manually
1. When the system status LED on a transmitter blinks green slowly, press the linking button of
the transmitter for two seconds, after which the transmitter will start to search for nearby
receivers.

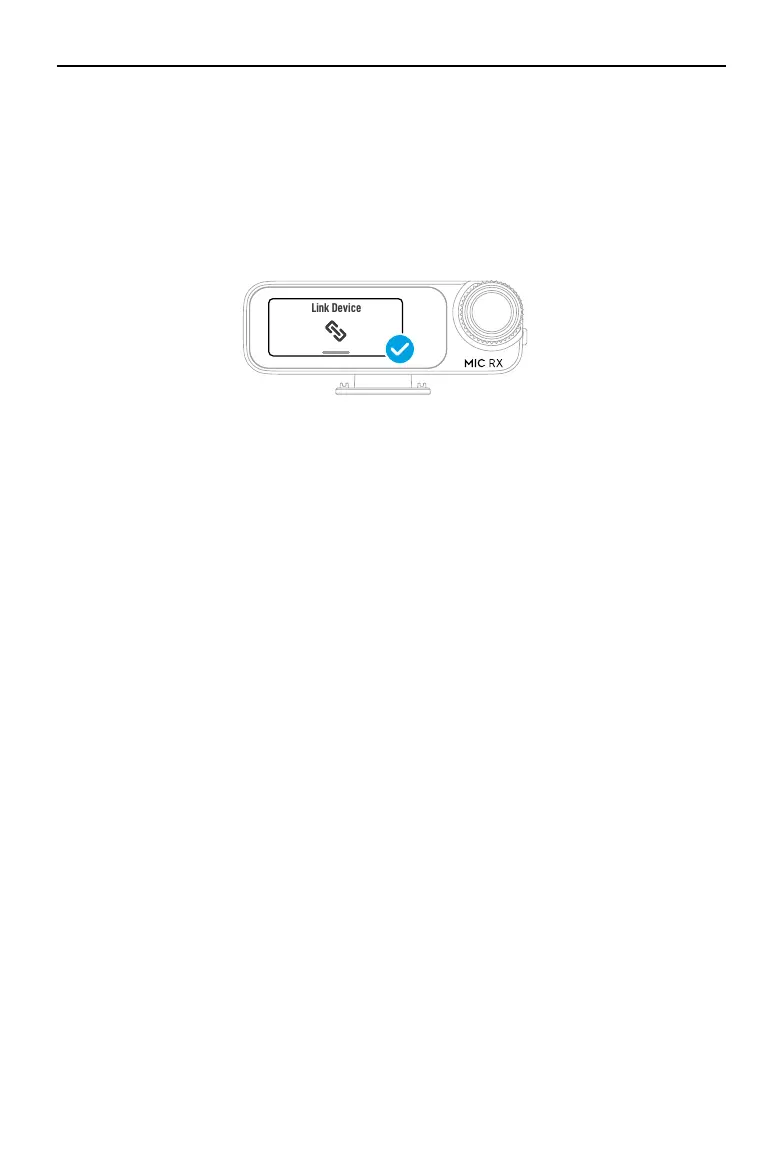

2. Swipe down on the receiver screen, select Receiver Settings > Link Device, and tap Link to
start linking. The transmitter is linked with the receiver when the system status LED is solid
green. Users can view the status of the transmitter on the receiver interface.
Link Device

dji MIC 2 Specifications

General

Type	-
Noise reduction	Yes
Microphone frequency	50 - 20000 Hz
Equivalent noise level	21 dB
Microphone direction type	Omnidirectional
Maximum sound pressure level (1kHz)	120 dB
Device interface	Bluetooth
Connectivity technology	Wireless
Maximum operating distance	250 m
Product color	Black
Battery type	Built-in battery
Power source	Battery
Battery voltage	3.87 V
Battery capacity	360 mAh
Battery life (max)	6 h
Number of products included	2 pc(s)

Weight and Dimensions

Depth	30.96 mm
Width	46.06 mm
Height	21.83 mm
Microphone weight	28 g
Receiver dimensions (WxDxH)	54.2 x 28.36 x 22.49 mm
