12 7800 Series Installation and Programming Guide | Digital Monitoring Products, Inc.
Model 333
Supressor
Normally Closed
– +
Magnetic Door Lock
Power Supply
Green/White – D0
White – D1
Orange – N/O
Gray – C
Violet – N/C
N/O
C
N/C
Common
Keypad
5-Wire Harness

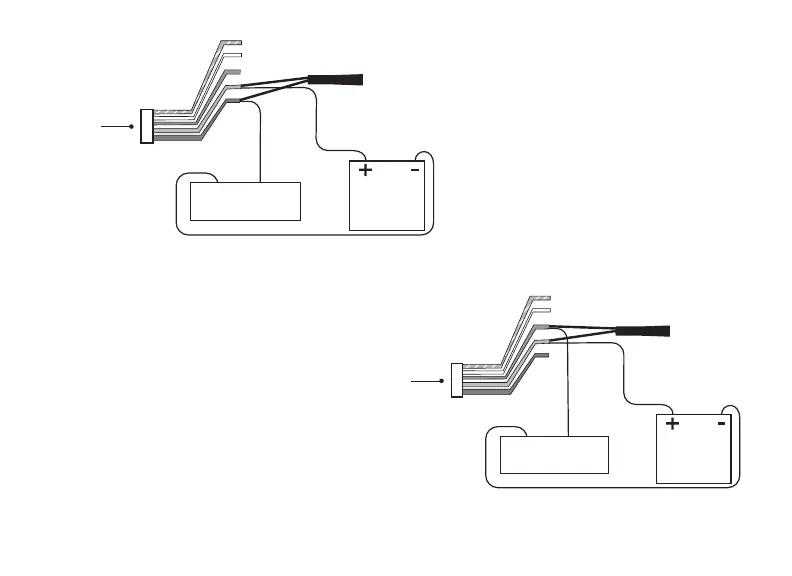

Figure 8: Typical Magnetic Lock Wiring
Model 333
Supressor
Normally Open
– +
Door Strike Relay
Power Supply
Green/White – D0
White – D1
Orange – N/O
Gray – C
Violet – N/C
N/O
C
N/C
Common
Keypad
5-Wire Harness
Figure 9: Typical Door Strike Wiring
