Ademco/Honeywell ECP Connection
The communicator can be connected to the ECP Bus of an Ademco/Honeywell panel. See Table3 and Figure9 for the
necessary wiring connections for DualCom to communicate with the Ademco/Honeywell ECP Bus
Communicator to ECP Wiring
Communicator Ademco/Honeywell ECP Bus Ademco/Honeywell Terminal
‑DC Keypad GND 4
+DC Keypad Power 5
Z4‑ Data In 6
Z4+ Data Out 7
Table 3: Communicator to Ademco/Honeywell Wiring
S
N
+DC- Z1 Z2 Z3 G +Z4- 01 02 T1 R1 T2 R2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
+ +-
HI
HI
HI
LO
LO
LO
LO
HI
HI
LO
LO
HI
HI
LO
LO
HI
TIP
(BROWN)
RING
(GRAY)
TIP
(GREEN)
RING
(RED)
+
-
BLACK
RED
SYNC
COM
DATA
Use SA4120XM-1 Cable
1 2 3 4 5 6 7 8
OUT 17
+12 AUX
GND
OUT 18
VISTA 20P ONLY
Ademco Vista 20P

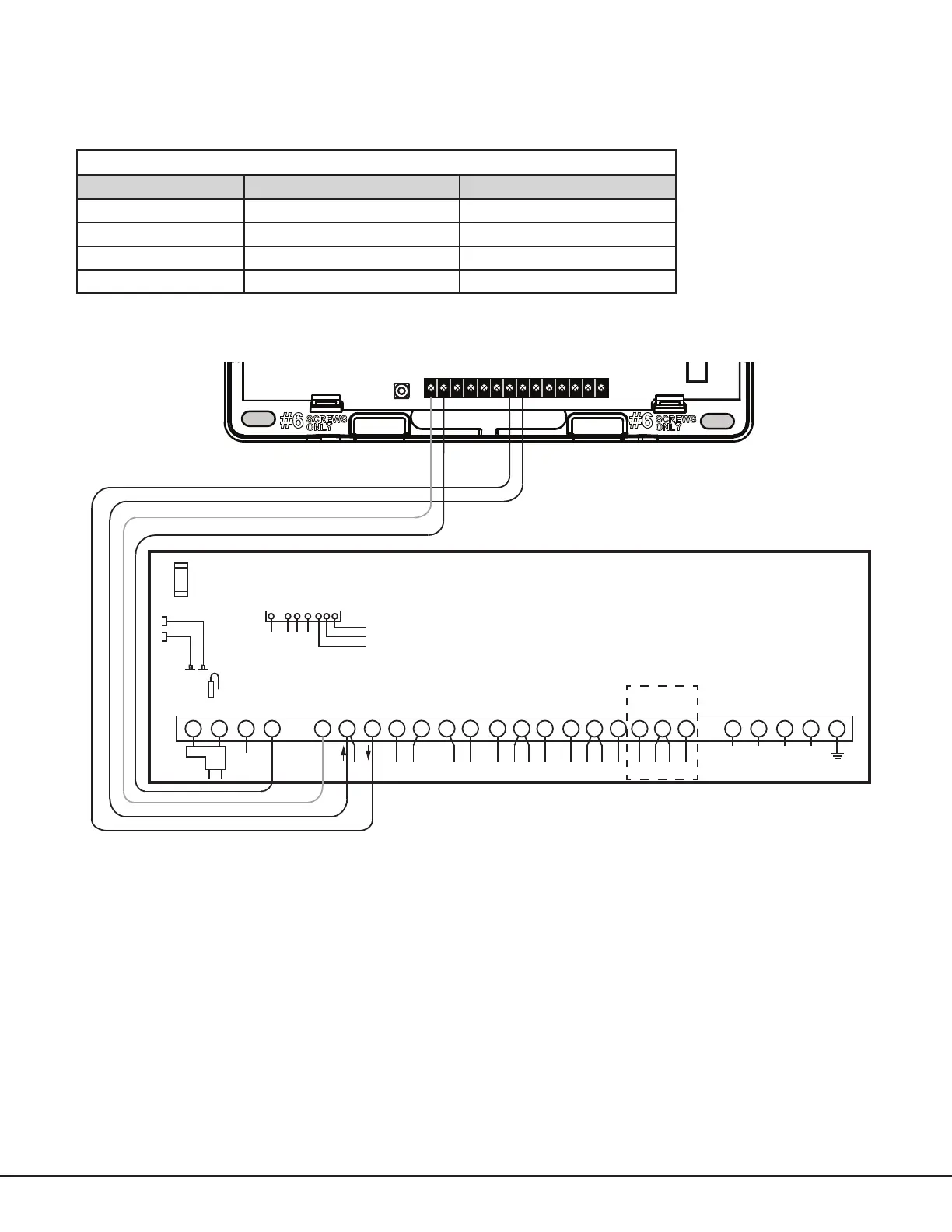

Figure 9: Communicator to Ademco Vista 20P ECP Wiring
ECP operation must be enabled when programming the communicator. See Keypad Input in System Options. When
connected as shown in Figures9, the communicator provides the following operations:
• Arm and disarm the Ademco/Honeywell panel for Stay/Away systems using the VirtualKeypad™app and
VirtualKeypad.com.
• Receives alarm, trouble, and opening/closing messages from the panel and sends them to the central station.
• Add, delete, and change user codes in the Ademco/Honeywell panel.
