7000 Series Installation and Programming Guide | Digital Monitoring Products 17
END USER TRAINING
This section covers 7063/A, 7073/A, 7163, and 7173 keypads and contains three sections:
▶ Keypad Arming and Disarming
▶ Keypad Access Control
▶ Keypad Entry Delay
All of the examples displayed assume that CLOSING CODE is YES in panel programming.
Figures 9 through 12 show the user presenting a card to the keypad. When an external reader is connected to a
7073/A and a 7173 keypad, the user presents a card to the reader rather than to the keypad.
Keypad Arming and Disarming
Area System Type
1. Press CMD until the keypad displays ARM DISARM.
2. Press the select key under the preferred option.
3. The keypad displays ENTER CODE: -. The user presents their card to the reader.
Once validated by the system, all areas assigned to that code arm or disarm automatically and the 7073/A and 7173
keypad door strike relay activates. See Figure 9.
ABC SECURITY
ARM DISARM
ABC SECURITY
ENTER CODE: –
ABC SECURITY
ALL? NO YES
Select NO to arm or disarm individual areas.
Select YES, or simply wait, to automatically arm or disarm all areas for which you are authorized.

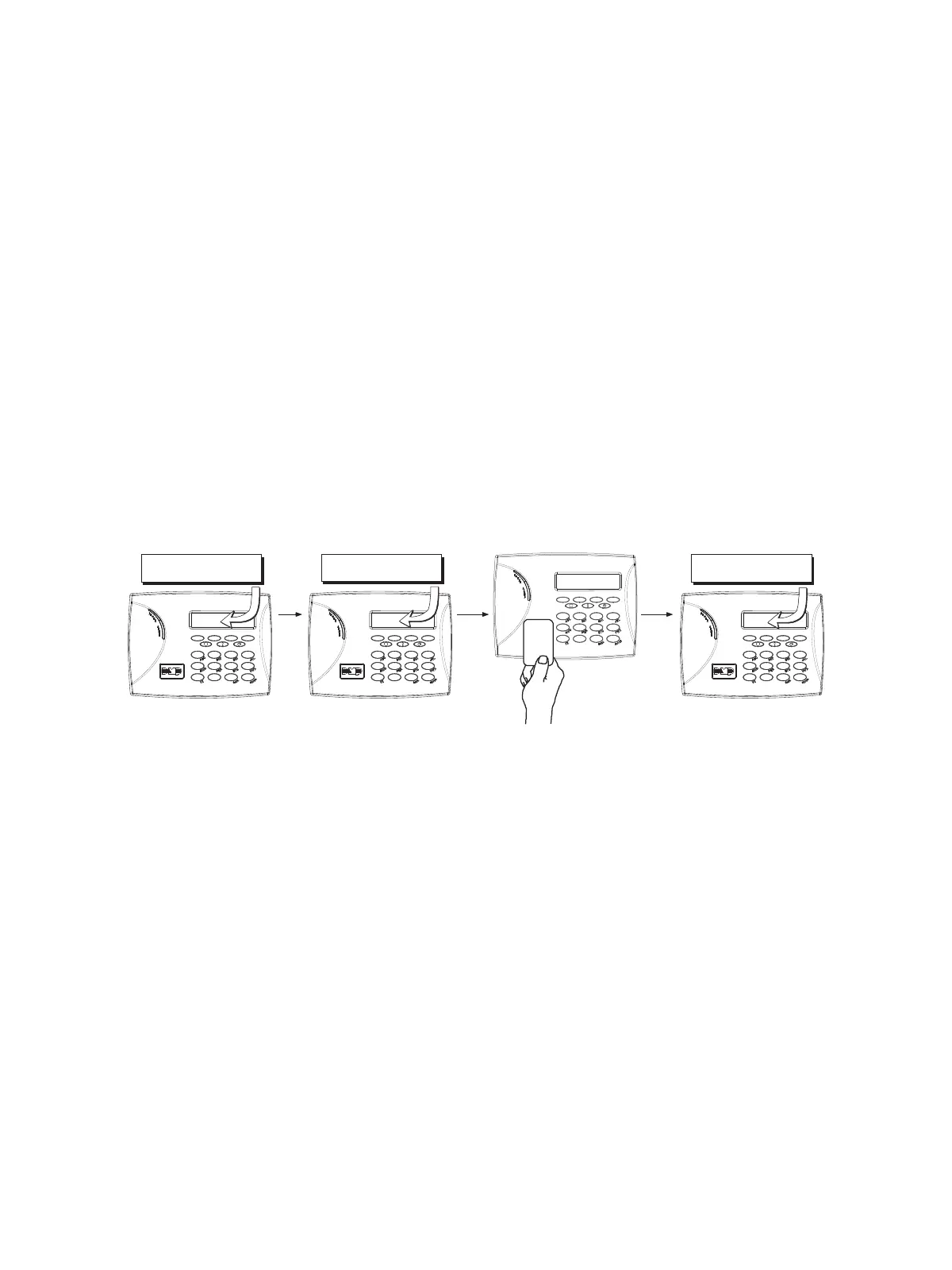

Figure 9: Area Arming and Disarming
All/Perimeter System Type
Present the card to the reader or press CMD, the keypad displays DISARM? or PERIM ALL (when arming). Press
the select key under the desired option. The keypad displays ENTER CODE: -. Present the card to the reader. Once
validated by the system, the selected areas arm or disarm automatically. On 7073/A and 7173 keypads, the Door Strike
relay then activates.
