Home/Away System Type
Present your card to the reader. If the system is armed, once the card is validated, all areas are disarmed and the
keypad displays ALL SYSTEM OFF. If the system is disarmed when you present your card, once the card is validated,
HOME SLEEP AWAY displays. Manually select HOME, SLEEP, AWAY or after a short time-out, all areas automatically
arm in the AWAY mode.
Keypad Access Control
Area and All/Perimeter Door Strike
From the Status List, present your card to the reader. Once the system validates the card, the Door Strike relay
activates. Home/Away systems only activate the 7073/A and 7173 Door Strike relay when arming and disarming.
Entry delay starts.
The System disarms the area and activates the Door Strike Relay.
ABC SECURITY
ENTER CODE: –

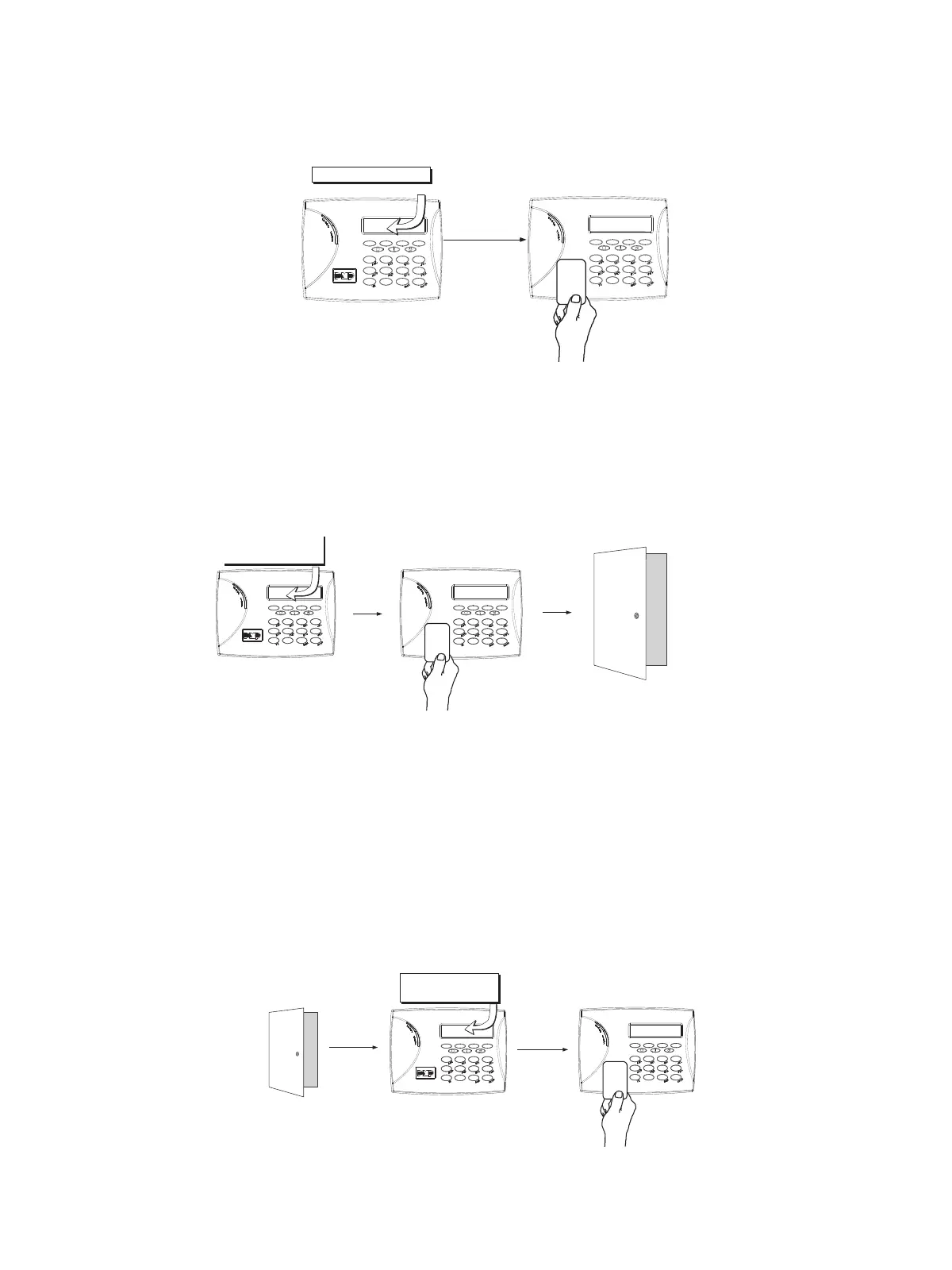

Figure 12: Present Access Card
ABC SECURITY
MON 10:20 AM
While the keypad displays the
Status List, present your access card.
Typically, the relay activates for 5 seconds during which
time you can open the door. Once you open the door,
you have 40 seconds to exit and close the door before
the Zone 2 Bypass expires.
Figure 11: Present Access Card
PERIM ALL
The system arms or disarms the areas and
activates the door strike relay on the 7073 or
7073A keypad.
Figure 10: All Perimeter Arming and Disarming
Keypad Entry Delay
All Systems
Once the entry delay starts, the keypad sounds an entry tone and displays ENTER CODE: - . Present your card to the
reader. Once validated, the system disarms all areas accessible by you and activates the 7073/7073A/7173 Door Strike
relay. Area systems provide a delay to allow selected areas only to be disarmed. See Keypad Arming and Disarming.
