5
Navigation Buttons: The front panel control buttons labeled with an up arrow p , down arrow q, left arrow
t , right arrow u and asterisk * are used to move through the options that appear on the 2x20 LCD. The
asterisk * button is similar to the ENTER button on a keyboard and is used to select menu options from the
Control Panel menu system.

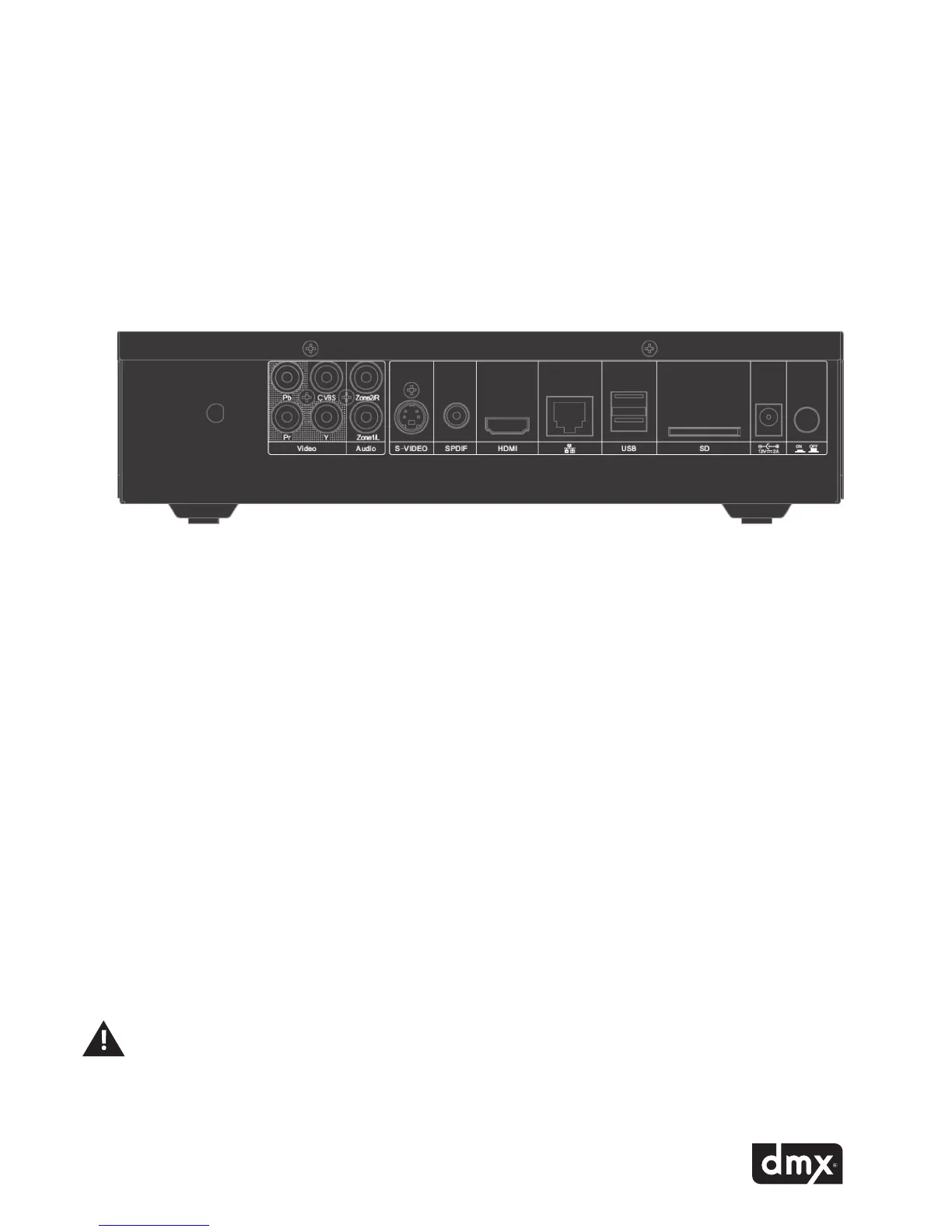

Rear Panel
The rear panel of ProFusion iS has a variety of connections that are used to integrate it with your existing
amplification equipment and Ethernet network.
(From left to right)
If a (optional) WiFi module is inserted inside the iS, the first connector on the far left of the iS is for the WiFi
antenna.
Pb is 1 of 3 component video out.
Pr is 2 of 3 component video out.
CVBS is the composite video out.
Y is 3 of 3 component video out.
Zone2/R in the Audio section is the right RCA audio out.
Zone 1/L in the Audio section is the left RCA audio out.
S-Video is the S-Video video out.
SPDIF is the SPDIF coax digital audio out for stereo audio (if desired over RCA).
HDMI is the HDMI video out.
The Ethernet Port is used to connect ProFusion iS to your network in order to receive configuration, content
and software updates.
USB: The two USB ports on the back of the iS are not currently used.
SD: The SD card slot holds an SD storage card that stores music channels and audio messaging content.
The iS should never be operated by anything other than an approved power supply provided by DMX.
On/Off: This is the main power switch for the ProFusion iS. This button must be in the ‘On position for the
ProFusion iS to operate. All functions stop immediately in the ‘Off position.
