DOG BONE LOCKSMART - Installation Process

A
C2
B
G
F
F
H
K
E
C1
D

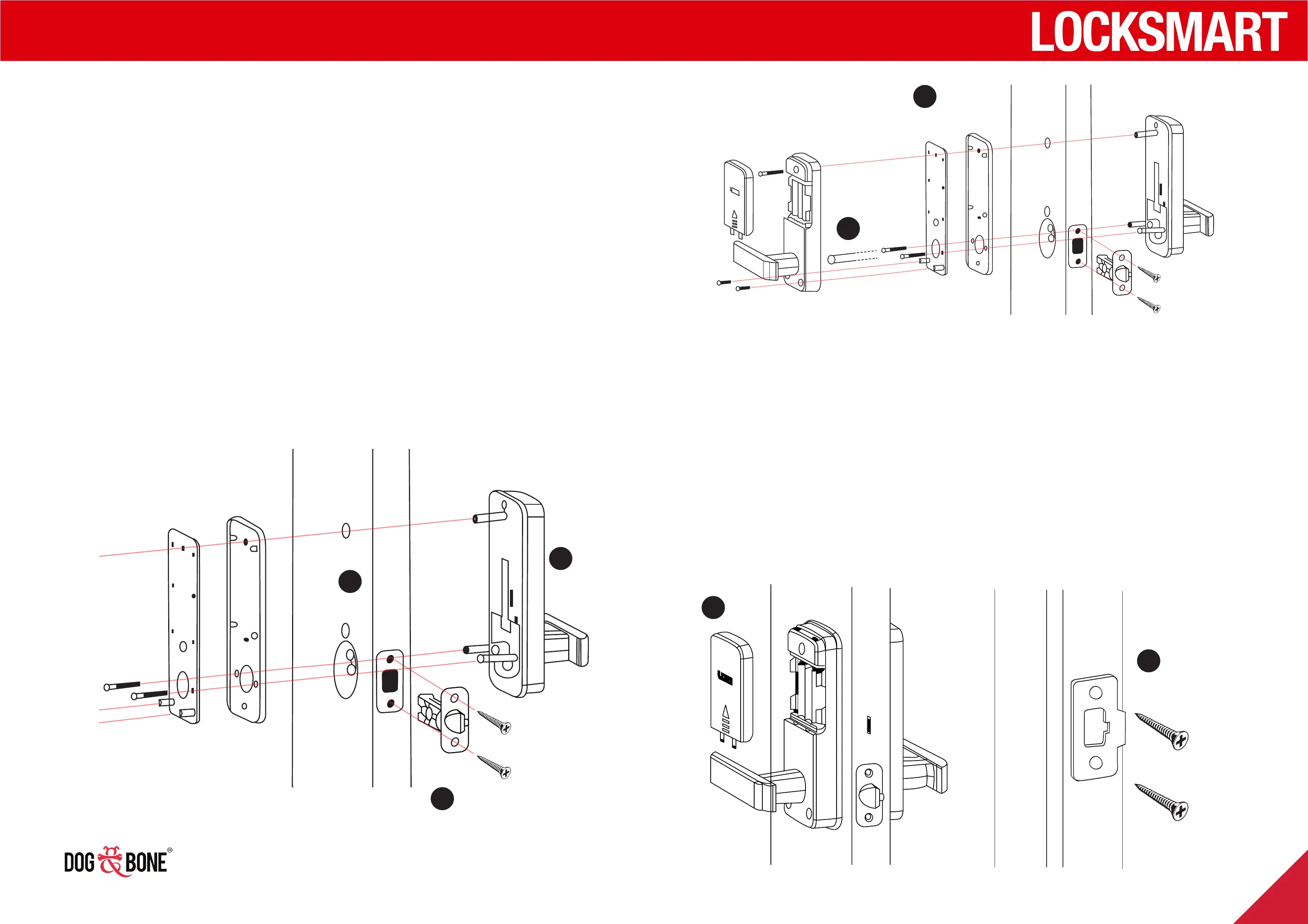

Installation process
Step 1: Drill two holes with the template using a 10mm
drill
Step 2: Install the lock latch (E) using supplied screws
(H). (Suits Australian standard door latch sizing)
Step 3: Install the front lock panel (A) with the rubber
gasket (C2) and fix them with screws (F) through the
and gasket (C1) and backplate (D)
Step 4: Thread cable through centre hole and connect to
cable in back panel and gasket
Step 5: Install the back panel (B), fix with screws (2xG,F)
Step 6: Install 4 x AA batteries. Replace battery cover
Step 7: Use existing latch plate, if suitable. If required,
attach supplied latch plate (J, K) to door frame
A
C2
B
G
F
F
H
K
E
C1
D
2
3
1
5
4
6
7
J/K
H
For install video go to www.dogandbonecases.com/abode
