CAUTION: Before doing any work on the Multi Function Power Head, always
stop the engine and pull the spark plug connector off the spark plug.
Always wear protective gloves!
CAUTION: Start the Multi Function Power Head only after having assembled it
completely.

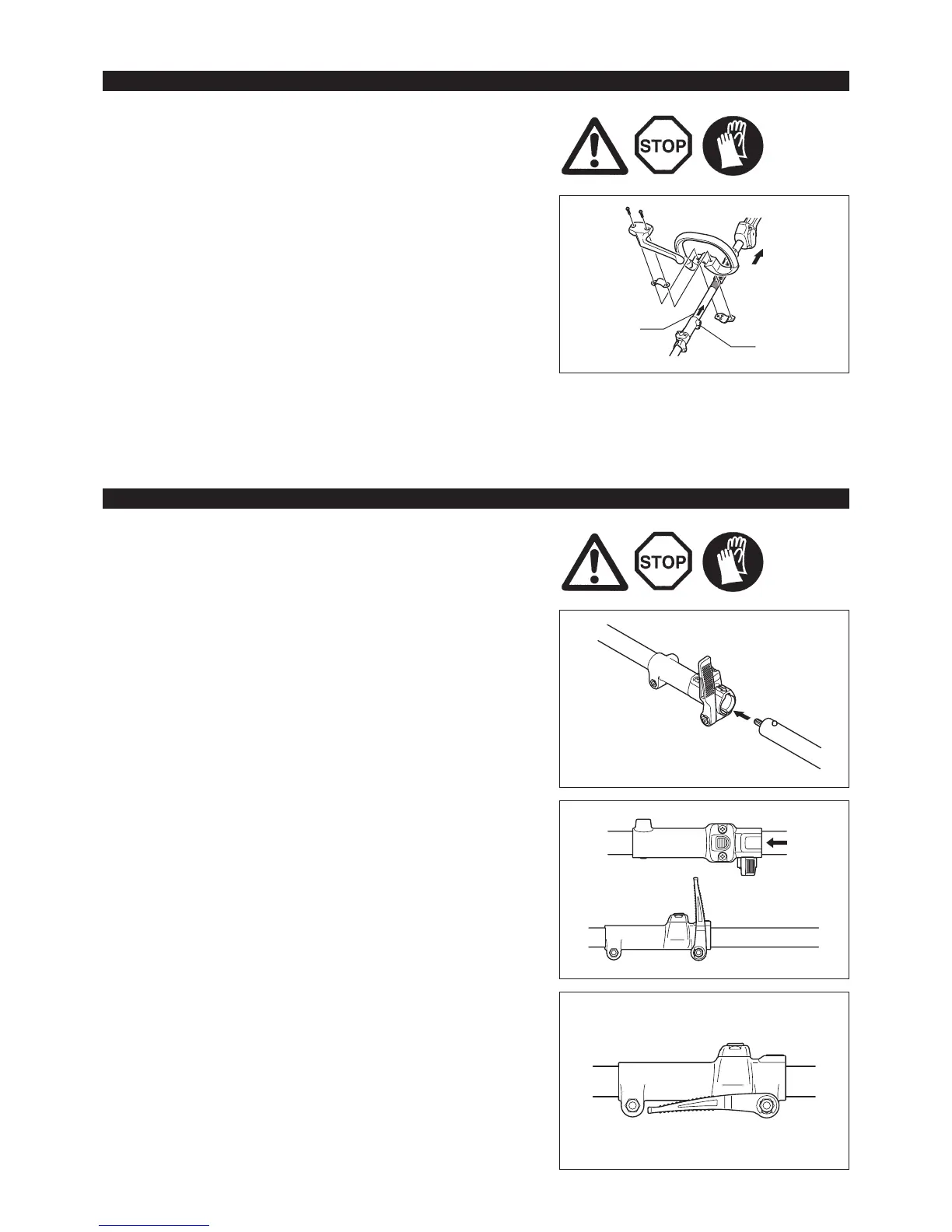

Assembly
Loosen lever. -
Align the attachment’s pin with the joint’s groove and insert pin. -
Insert attachment up to the arrow position of attachment. -
And, check to see that button has risen.
Tighten lever. -
(See diagram on right for guideline.)
MOUNTING OF HANDLE
MOUNTING ATTACHMENT
CAUTION: Before doing any work on the Multi Function Power Head, always
stop the engine and pull the spark plug connector off the spark plug.
Always wear protective gloves!
CAUTION: Start the Multi Function Power Head only after having assembled it
completely.
Assembling loop handle
Securely t the barrier and grip onto the shaft pipe with two screws and -
clamps. At this time, put the barrier on the left side of the machine as
illustrated.
Make sure that the grip/barrier assembly is located between the spacer and -
the arrow mark. Do not remove or shrink the spacer.
Once assembled, do not remove the barrier. -
CAUTION: Never install the grip on the label or joint.
Note: In some countries, the barrier and arrow mark are not provided with the
tool.
Engine
Joint
Arrow mark
