16Repair Manual PS-6400/PS-7300/PS-7900
(55,0 Nm ± 2,5)
(10,0 Nm + 1,0)
1
2
3
4
04 CLUTCH

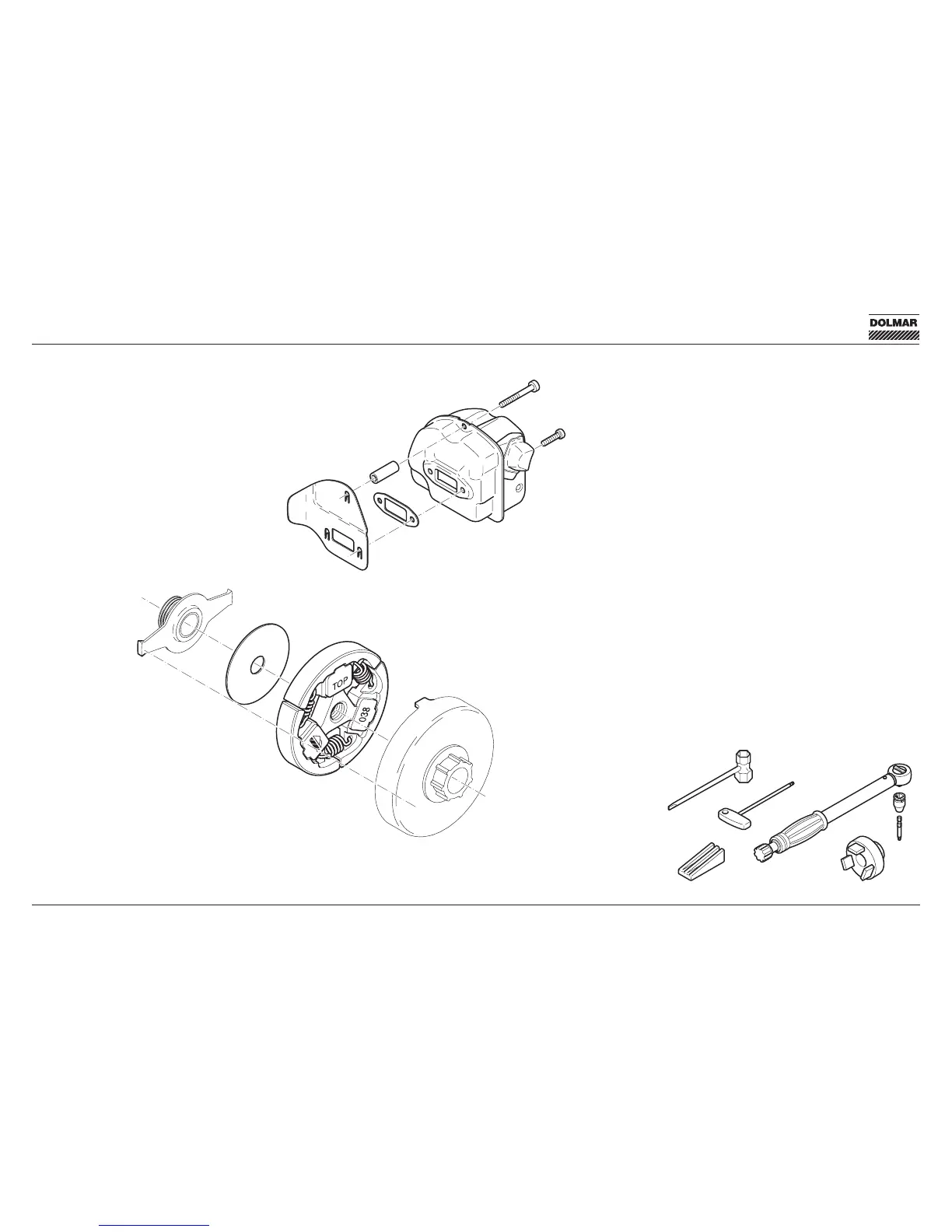

Replacing the springs
If the chain moves at engine speeds below 3200 rpm,
replace the springs (024.184.021).
Remove and replace the springs with needle-nose
pliers.
Insert the centrifugal weights with the “TOP” lettering
towards the outside.
Careful! The springs can fly out and cause injury.
Assembly note: Disassemble the starter assy to
prevent a damage of the starter ratchets.
Push the disc washer 1 into the clutch.
Use the assembly wrench (944.500.570) to tighten
the clutch.
The lug 3 of the clutch drum should not be on the
arms of the oil pump drive 2.
Replace the muffler gasket 4 (965.531.130).
Tool
(10.0 Nm + 1.0)
(55.0 Nm ± 2.5)
