25Repair Manual PS-6400/PS-7300/PS-7900
1
2
3
(1,5 Nm ± 0,2)
07 IGNITION SYSTEM
Cable harness

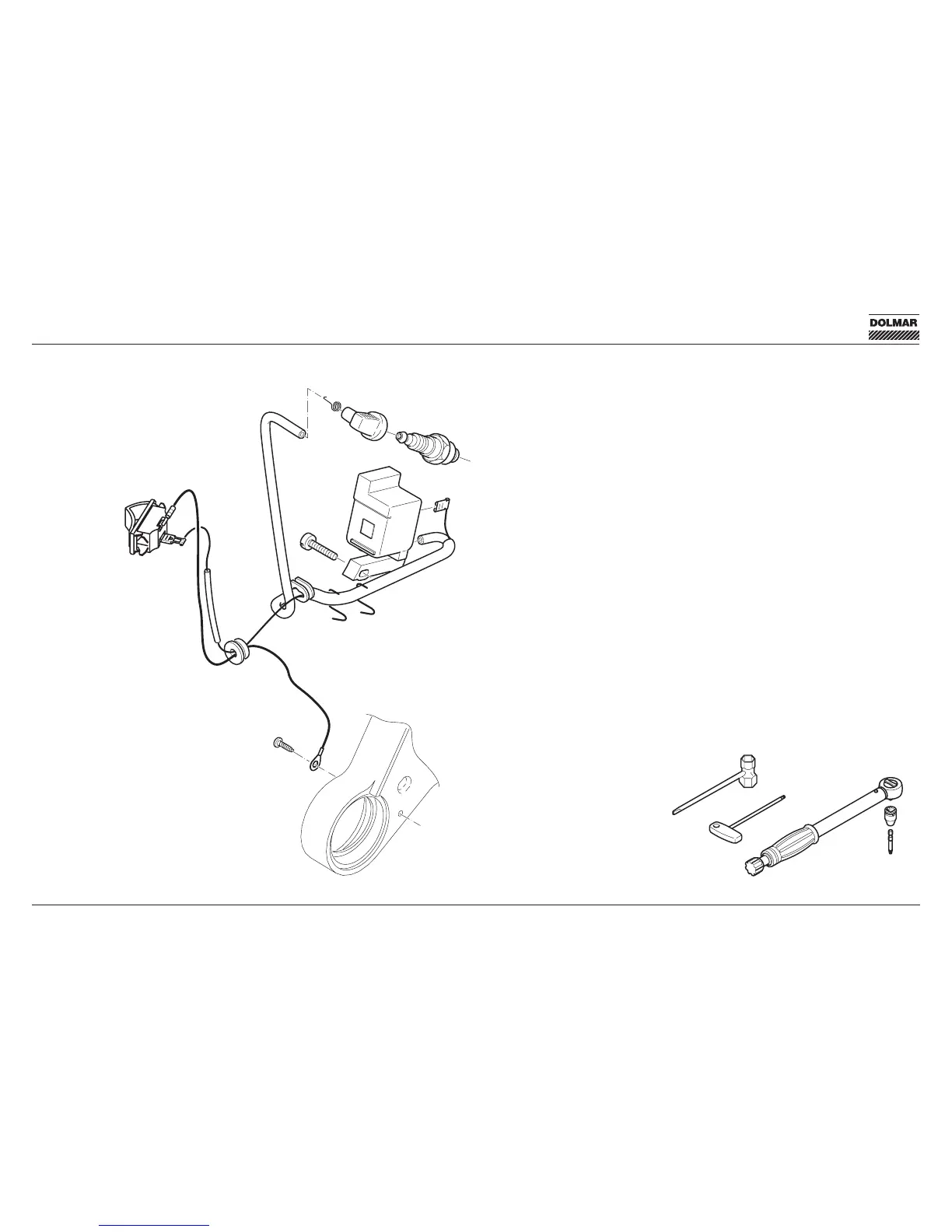

The high tension lead and short curcuit wire are
supplied as a wiring harness.
Before turning the high tension lead into the ignition
coil, fill the in-screw-hole with silicone paste.
NOTE: Make sure that switch 1 is in the correct
position, with the stop arrow in direction to the
starter!
Use clamp 2 just once. Push it into the hole in the
crankcase with a screwdriver.
Ground connection with slotted screw 3 (3.5 x 9.5
mm).
Always make sure there is a good ground connection!
Spark plug
NGK BPMR 7 A (965.603.021)
BOSCH WSR 6F (965.603.014)
Electrode gap 0.5 mm
Tool
(1.5 Nm ± 0,2)
