26Repair Manual PS-6400/PS-7300/PS-7900
1
(27,0 Nm ± 2,0)
3
(5,0 Nm - 0,5)
2
07 IGNITION SYSTEM

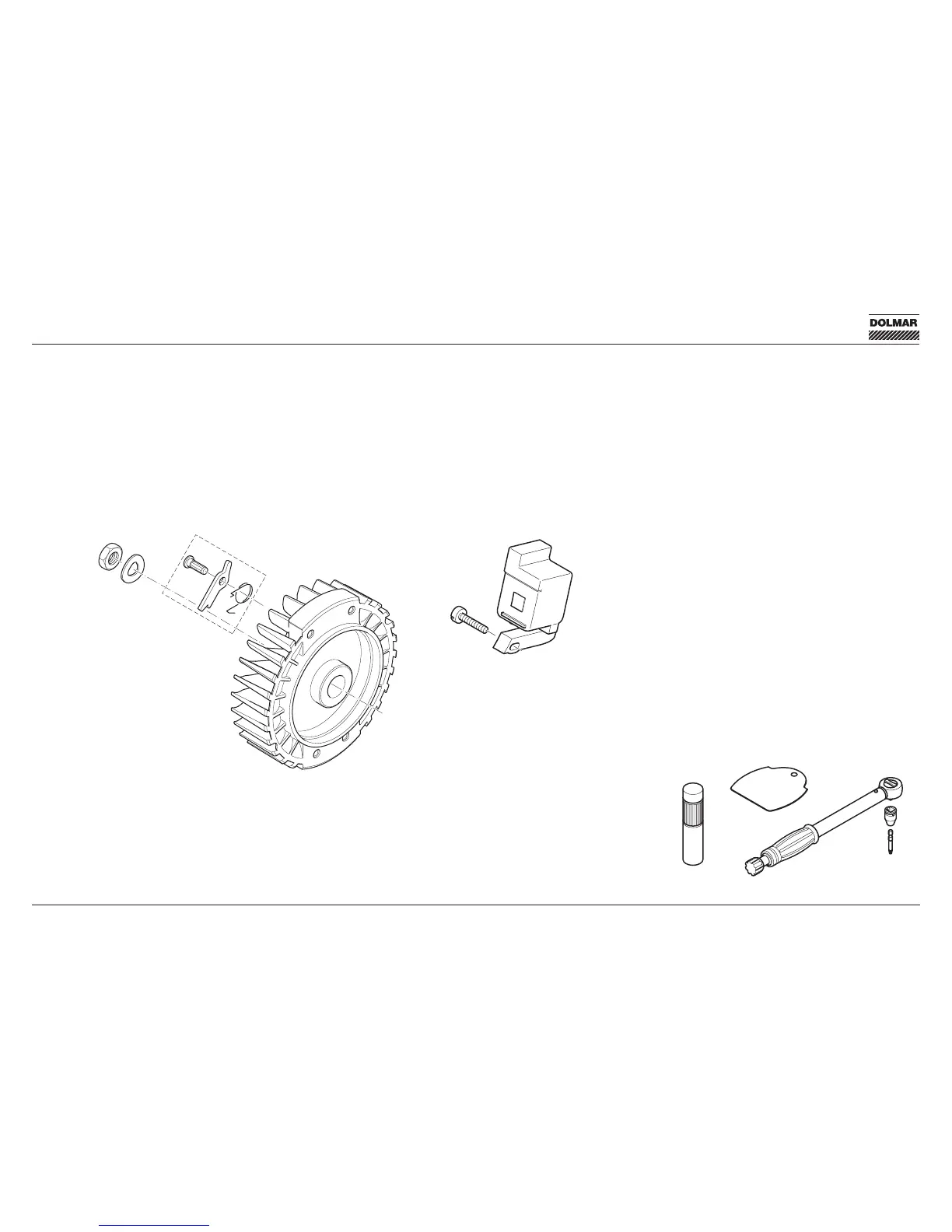

Flywheel
Disassembly
Loosen the flywheel flat nut 1 (M8 x 1). Block the
engine (see page 15).
Screw mandrel onto crankshaft. Leave about 2 mm
interval between the flywheel and the mandrel.
Hold engine in your hand or place it on a soft surface,
and loosen the flywheel with a hammer blow on the
disassembly mandrel.
Use pawl set (108.166.051) with pin 2 for
replacement.
The woodruff key is cast into the flywheel.
CAUTION: Watch for the right fitting of the flywheel.
Clean the cranksahft cone well.
Tighten flat nut 1 (M8 x 1) with torque wrench.
Set gap to 0.3 mm
Place gap gauge (944.500.891) between the flywheel
magnets and the ignition coil.
Push the ignition coil against the flywheel and tighten
screws 3 (M4 x 20).
Tool
(27.0 Nm ± 2.0)
(5.0 Nm - 0.5)
