27Repair Manual PS-6400/PS-7300/PS-7900
(6,0 Nm ± 0,5) 5
1
2
5
3
4
2

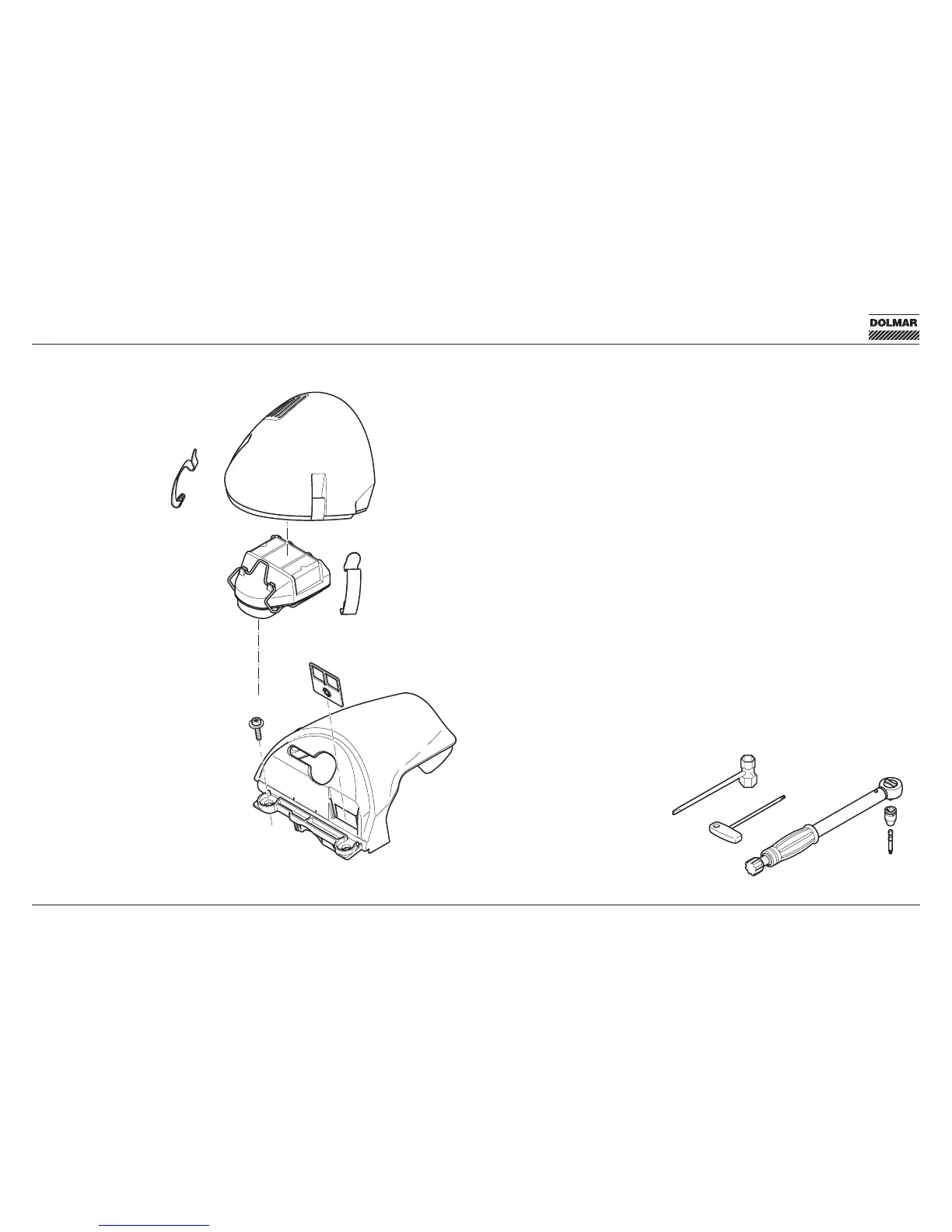

08 CARBURETOR
Air filter system
Combustion air is inducted at the top left through the
filter hood 1 (or out of the cylinder chamber for winter
operation 5).
The clamps 2 must be tight enough to require a tool
for loosening.
Air filter
Clean the air filter 3, see Instruction manual.
Protective hood
Disassamble hand guard (see page 14).
The protective hood 4 and carburetor base are
fastened to the crankcase with 2 Torx screws 5 (M5
x 20) with loss-proof washers.
Tool
(6.0 Nm ± 0.5)
