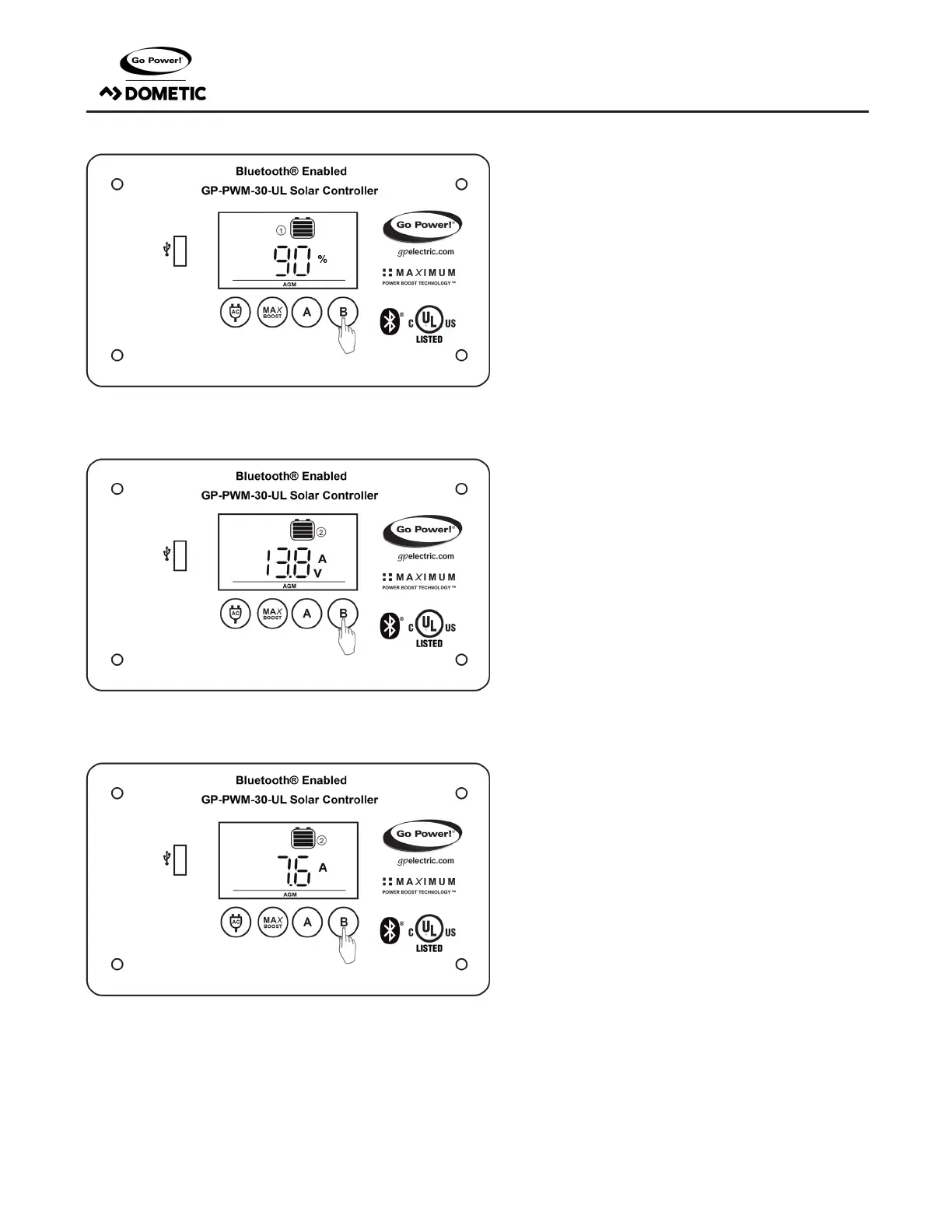

The battery state of charge is shown as a percentage.
Icons Displayed: Battery SOC, Percent Symbol (%), Symbol 1
A value of 100% will only be displayed after a Boost or Equalize
charge completes.
Battery 2 Status Values
Push the B Button to show the battery 2 voltage.
Icons Displayed: Battery SOC, Volt Symbol (V),
Symbol 2
This will only be displayed if there are two battery banks con-
nected and battery bank 2 is connected with correct polarity.
Push the B Button to show the PV charging current for battery
2. The GP-PWM-30-UL will begin to limit the current as the
battery 2 reaches a full charge.
Icons Displayed: Arrow, Ampere Symbol, Battery SOC, Symbol 2
OPERATING INSTRUCTIONS
