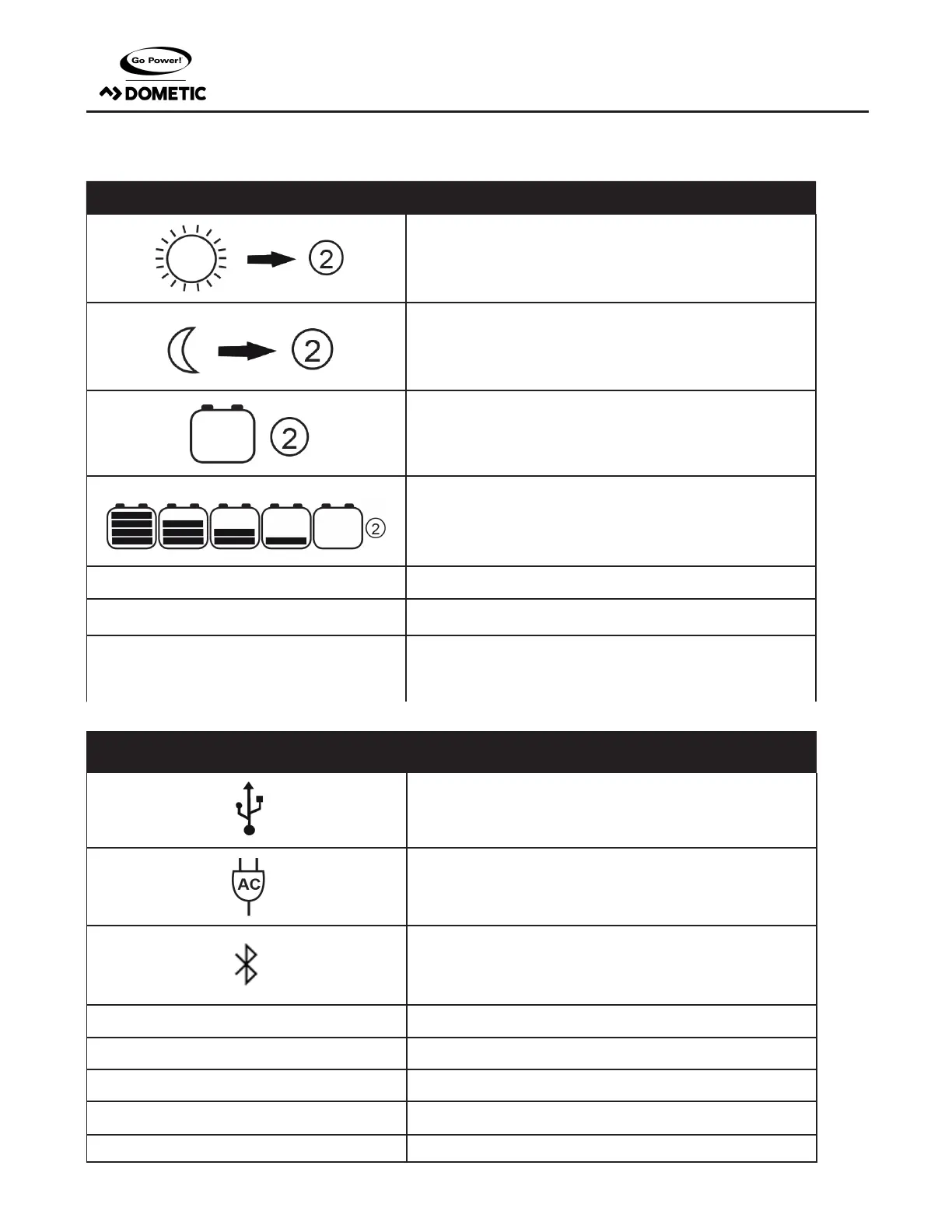

BATTERY 2
SYMBOLS INDICATOR FOR
Day Time: PV Charge Current
Night Time
Battery Voltage
Battery State of Charge
SEALED Sealed/Gel
AGM AGM/LFP
FLOODED Flooded
LFP Lithium Iron Phosphate
OTHER SYMBOLS
USB charger ON
(when charger is OFF, no symbol will show)
Inverter on
(Can only be used when an inverter is hardwired. See Section 10.
When inverter is off, no symbol shows)
Flashing: Controller ready to pair
Steady-on: Controller and mobile device connected via Bluetooth®
communication
BOOST Max Power Boost activated, Boost charge incomplete
LOW Battery 1 / 2 voltage is lower than 11.0 VDC
Whole display will start to blink Battery 1 voltage > 15.5 VDC
No Symbol Battery 2 voltage >15.5 VDC
POL Battery 1 reverse polarity
DISPLAY SYMBOLS
