4 General Information
This section provides reference information on the
tooling, model identification, components, and
terminology associated with the different refrigerator
models.
4.1 Tools and Materials
Dometic recommends that the following tools and
materials be used while servicing the refrigerator:
Recommended Tools
Multimeter Needle Nose Pliers
18-Gauge Alligator Clip
Jumper Wire
#1 and #2 Phillips-Head
Screwdrivers
12 VDC Battery
1
Control Module (Secop)
1
Dometic does not recommend the use of a power supply or AC/DC
power converter, unless it is supplied by Dometic.
4.2 Model Identification
Each refrigerator is manufactured with a data plate
that indicates the model number, product number, serial
number, and other useful information, as shown in
Figure 1.
To locate the data plate, open the door of the
refrigerator and look inside. The data plate is located
near the top of the refrigerator interior cabinet.
Bruttoinhalt/Gross Volume:
Contains flourinated greenhouse gases covered by the Kyoto Protocol.
Type and amount of refrigerant see product label. Hermetically sealed.
Eingangsspannung/Input Voltage:
Manufactured in China by Dometic Group
Nutzinhalt/Storage Volume:
Klimaklasse/Climatic Class:
Kältemittel/Refrigerant:
Treibmittel/Insulation Blowing Gas:
Max. Druck/Max. Pressure:
47L
45L DC 12/24V
Leistungsaufnahme/Power Rating:
5.0A at DC 12V 2.6A at DC 24V
T
R134a/0.038kg
C
5
H
10
ND 11 bar/HD 25 bar
MOD.NO.
CRX0050 936001487
9105306035 54602906
1546 F3
5375
10 R-04 3115
SKU NO.
PROD.NO.
SER. NO.
www.dometic-waeco.de
E
4

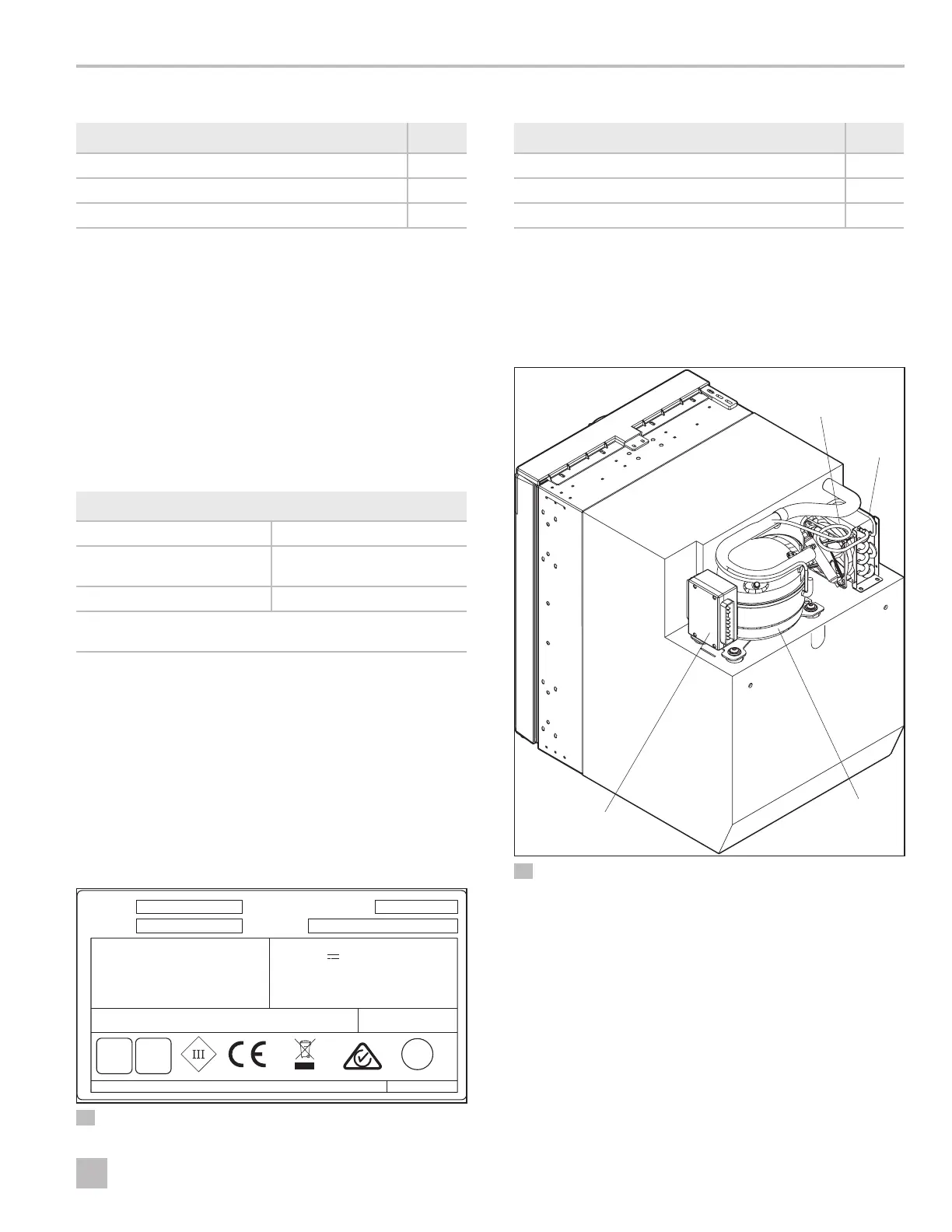

1 CRX Data Plate Example
4.3 Component Locations
Figures 2 and 3 show the locations of the major
components on the CR and CRX series refrigerators.
I
The CD series models vary.
q
r
w
e
2 General CR/CRX Component Locations (Rear View)
q
Control Module
w
Compressor
e
Condenser Fan
r
Condenser
