Passport I/O Digital Controls Specifications

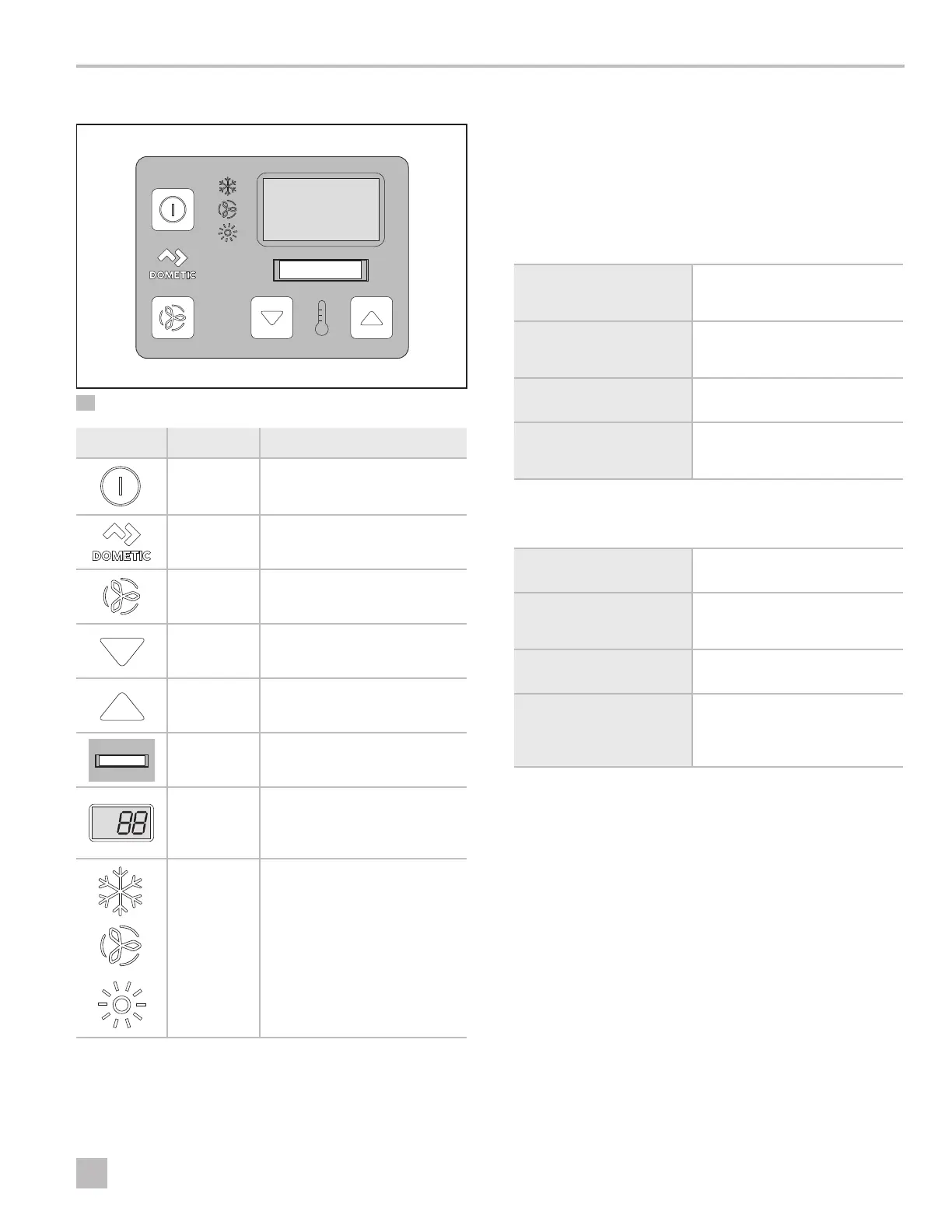

3.2.2 Compact Passport Control Display
2 Compact Passport Control Display
Feature Name Function
Power
Toggles between the ON and
OFF modes
Dometic
Brand identification. No
operational function
Fan
Cycles through the different
fan speeds
Down
Lowers the temperature set
point by 1°F (0.6°C)
Up
Raises the temperature set
point 1°F (0.6°C)
Temperature
Sensor
Built-in temperature sensor. No
operational function
Digital
Display
Displays the inside, set
point, outside, and water
temperatures, program
information, and fault codes
Mode
Indicator
Indicates the current mode
4 Specifications
The following table lists the dimensions, cable lengths,
system inputs, and operational specifications for the
Passport controls.
4.1 Product Dimensions
Display Panel
Dimensions for the
Legacy Models
4.5 in. x 3.9 in.
(114 mm x 99 mm)
Display Panel
Dimensions for the
Compact Models
3.2 in. x 2.5 in.
(81 mm x 64 mm)
Cut-Out Dimensions
for the Legacy Models
3.4 in. x 2.9 in.
(86 mm x 74 mm)
Cut-Out Dimensions
for the Compact
Models
2.5 in. x 1.9 in.
(64 mm x 48 mm)
4.2 Cable Length
Display Cable 15.0  (4.6 m) Standard
Alternate Air
Temperature Sensor
(Optional)
7.0  (2.1 m) Standard
OAT Sensor (Optional) 15.0  (4.6 m) Standard
All Custom Cable
Lengths are Supplied
In Standard 5  (1.5 m)
Increments
75.0  (22.9 m) Maximum
I
The maximum length for the display and sensor
cables is 75  (22.9 m).

Dometic Passport I/O Legacy Specifications

General

Brand	Dometic
Model	Passport I/O Legacy
Category	Marine Equipment
Language	English
