Passport I/O Digital Controls Wiring Diagrams
5 Wiring Diagrams

WARNING: ELECTRIC SHOCK HAZARD.
Turn power off before performing any electrical
installation or maintenance activities. Failure to obey
this warning could result in death or serious injury.

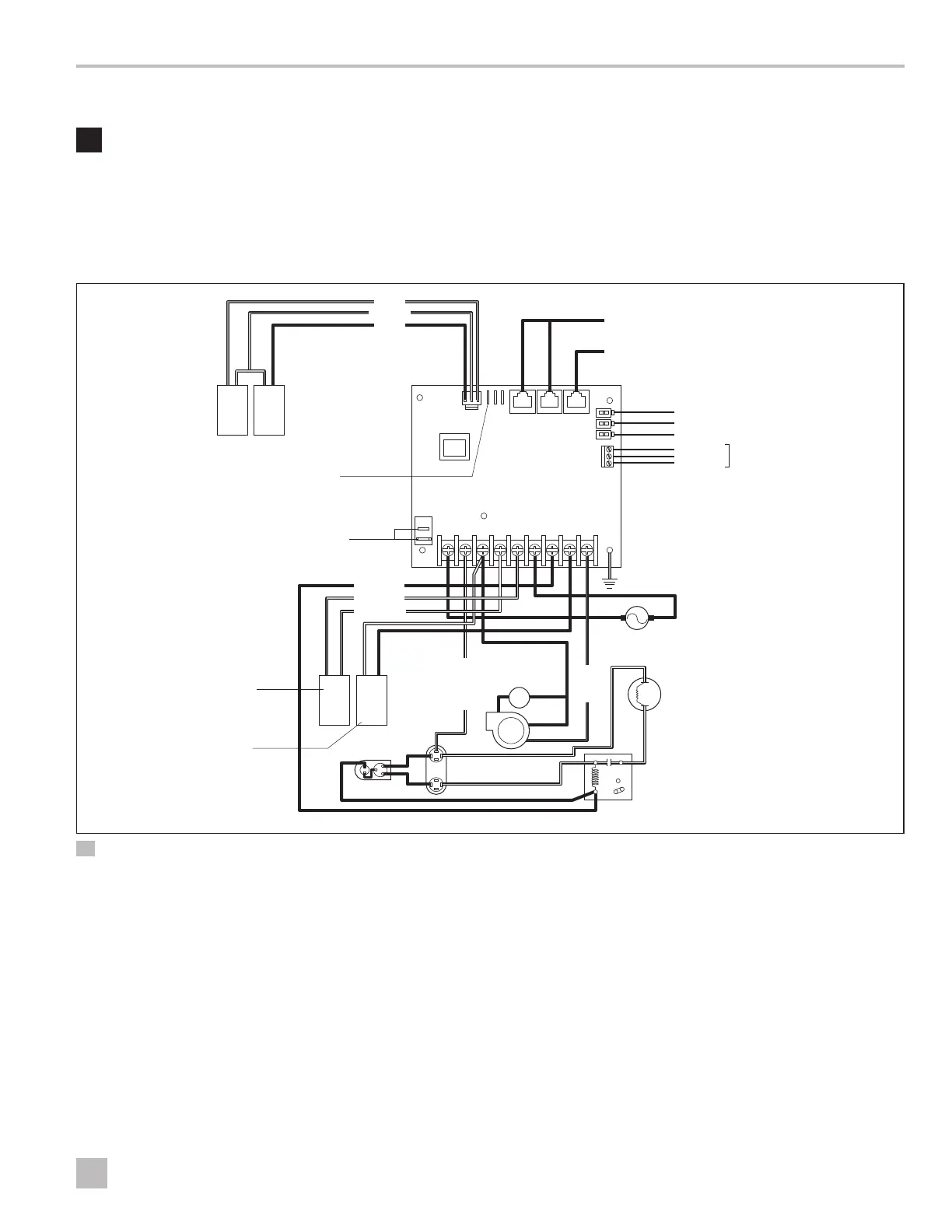

Figure 3 and Figure 4 provide examples of the DX and
CW wiring for the Passport controls.
Run Capacitor
Low-Pressure
Switch
High-Pressure
Switch
Comp L1
Pump L1
Pump L2
Blue
Orange
Black
Fan L1
Comp L2
Compressor
Display Jacks
Inside Temperature Sensor Jack
Not Active
GND
0-10VDC
+10VDC IN
Optional Water-Out Temperature Sensor
Optional Outside Air Temperature Sensor
Optional DC Blower
Ground
Start
Capacitor
Start Relay
1
64
5
2
L2
AC
Fan
Fan Run
Capacitor
L1
L1
L2
Pump or Pump Relay Panel
Aux Electric Heat Terminals
Low-Pressure
Switch Jumper
Reversing Valve or Electric Heat
3 DX Wiring Diagram
