Domino D320i Red User Manual

INSTALLATION INSTRUCTIONS
2-26 L025317 Issue 5 July 2014

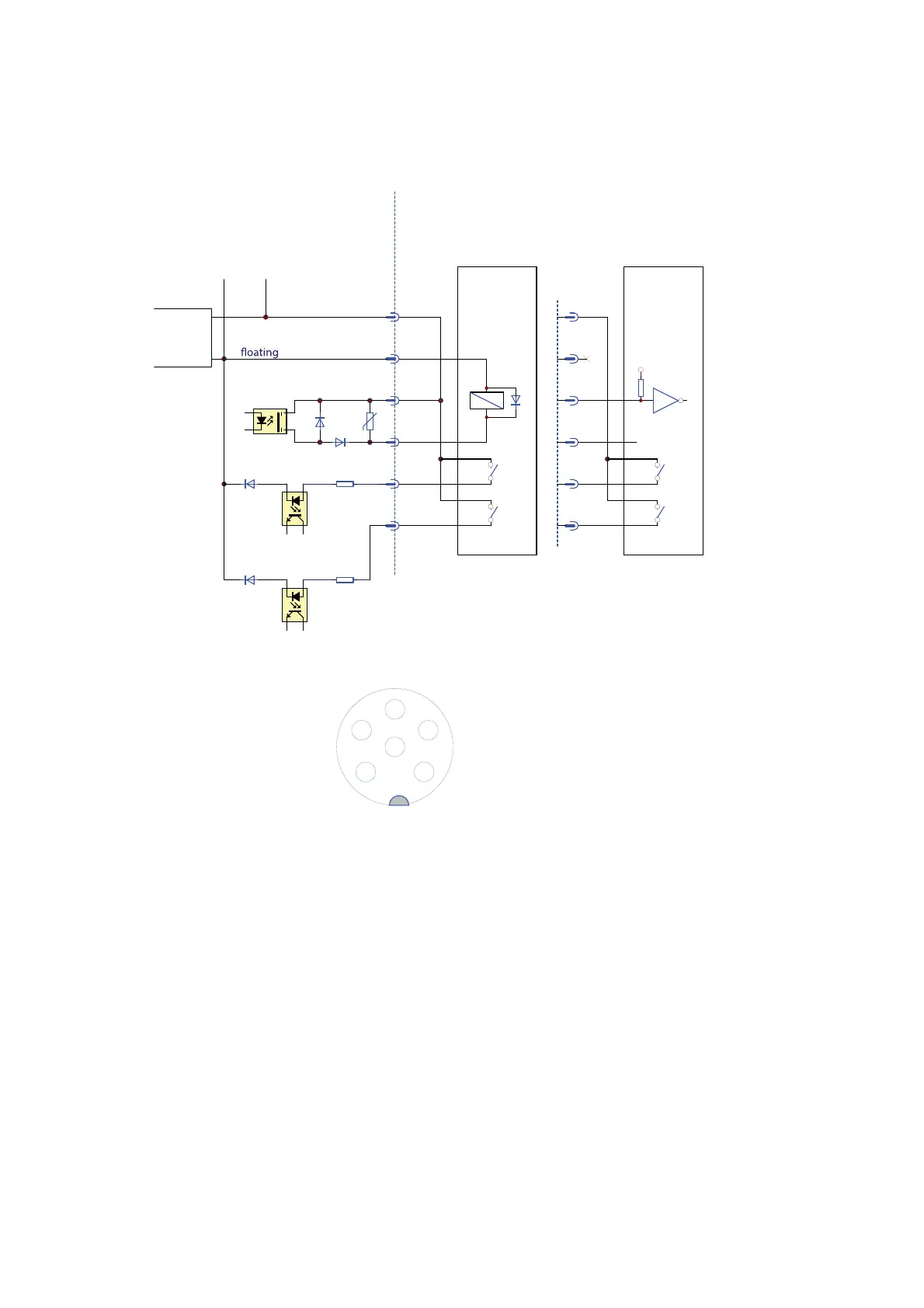

X7 Connector Schematic - Fume Extraction
1
vak OK
2
3
Filter OK
4
com
5
out
6
Logic Input
Relay
with
Laser - Controller Customer
Exauster
with
Exauster
OK
OK
Filter
GND
+
(12V)
Source
24V
to the other connector s
Sum Load max 500mA
Input Vacuum OK
Input Filter OK
1
2
3
4
5
6
X7 female plug solder side
1
2
4
3
Output Exhauster ON
1
vak OK
2
3
Filter OK
4
com
5
out
6
4k4
4k4
together with X3 and X6

Domino D320i Red Specifications

General

Print Technology	Thermal Transfer
Operating Temperature Range	5°C to 40°C
Ribbon Width	4.33" (110mm)
Ribbon Length	300 m (984 ft)
Connectivity	USB, Ethernet, Serial
