INSTALLATION INSTRUCTIONS
L025317 Issue 5 July 2014 2-47
D320i
All curves are recorded with the original D-Series air kit. The maximum hose
length when an air chiller is used is 4 meters from the chiller to the laser
head. In this case the air kit is installed between air chiller and laser head.
An air chiller type SMC (Model: IDFA8E) has been used as reference.The
actual pressure depends on the installed length of the hose.

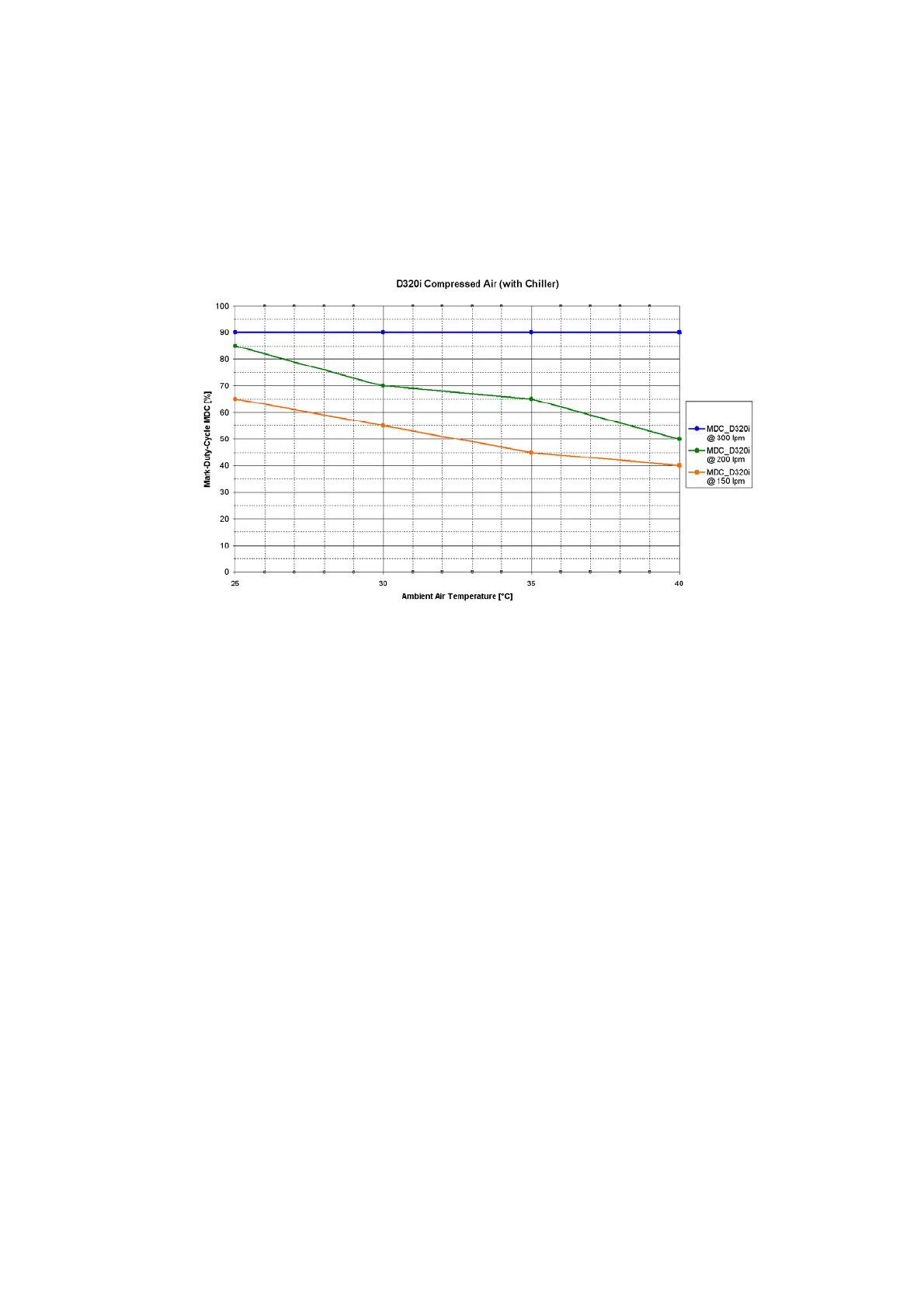

D320i Ambient temperature (in °C) vs. maximum mark duty cycle (in %)
depending on airflow (in LPM)
With air chiller
