PSS5000/INGU/805799/09 13 of 27
PSS 5000 – Installation Guide
2 Installing the PSS 5000 Forecourt Controller
To assign an IP address to Port 41 (via Local Service Panel)
This procedure describes how to use the Local Service Panel (LSP) on the
CPB539 to set an IP address for Port 41. This is used to connect the PSS
5000 to the LAN.
Note: This procedure describes how to assign a static IP address. If you
need to use a dynamic address, select "YES" when you see "USE
DHCP?".
1. Obtain a valid IP address for the connected LAN from the System Ad-
ministrator.
2. Locate the local service panel and navigation buttons.

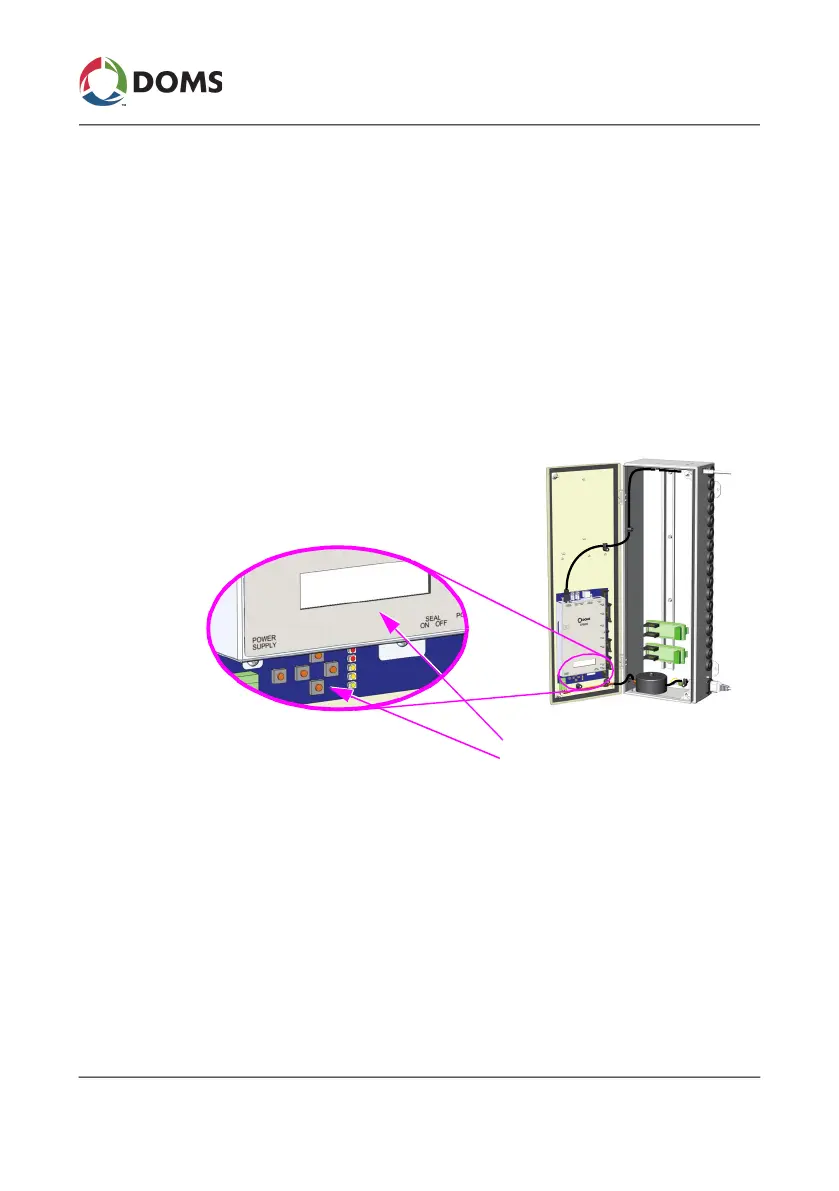

Local Service Panel display
and Navigation buttons
Illustrated with a Standard cabinet
To Next Page
