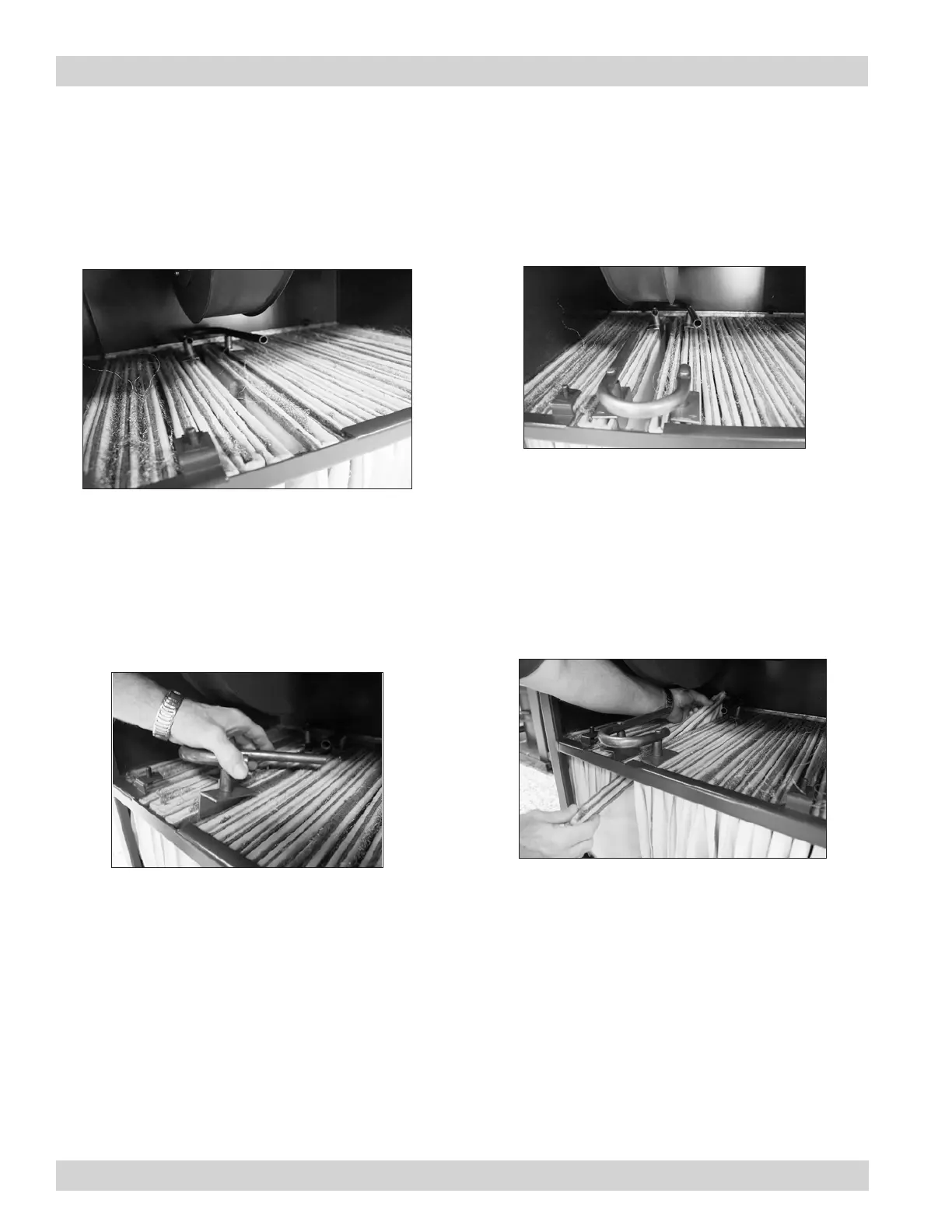

4. Swing the long arm of the filter inserter from left
to right to open a space around the filter that the
inserter is straddling. Make sure the inserter is
pushed all the way to the back of the bags.
5. Install the front filter inserter with the long arm
towards the back as shown and the angle brackets
inserted into the spaces created by the rear filter
inserter.
6. Swing the long arm of the filter inserter from right
to left while keeping the inserter tight to the front of
the bags. This will create a space that will allow the
installation of the last bag.
7. Insert the final filter in the space created by filter
inserters. When done with the final filter, release the
filter inserters and rest them on top of the bags so
they are easy to locate for future use
Step 4
Step 5
Step 6
Step 7
