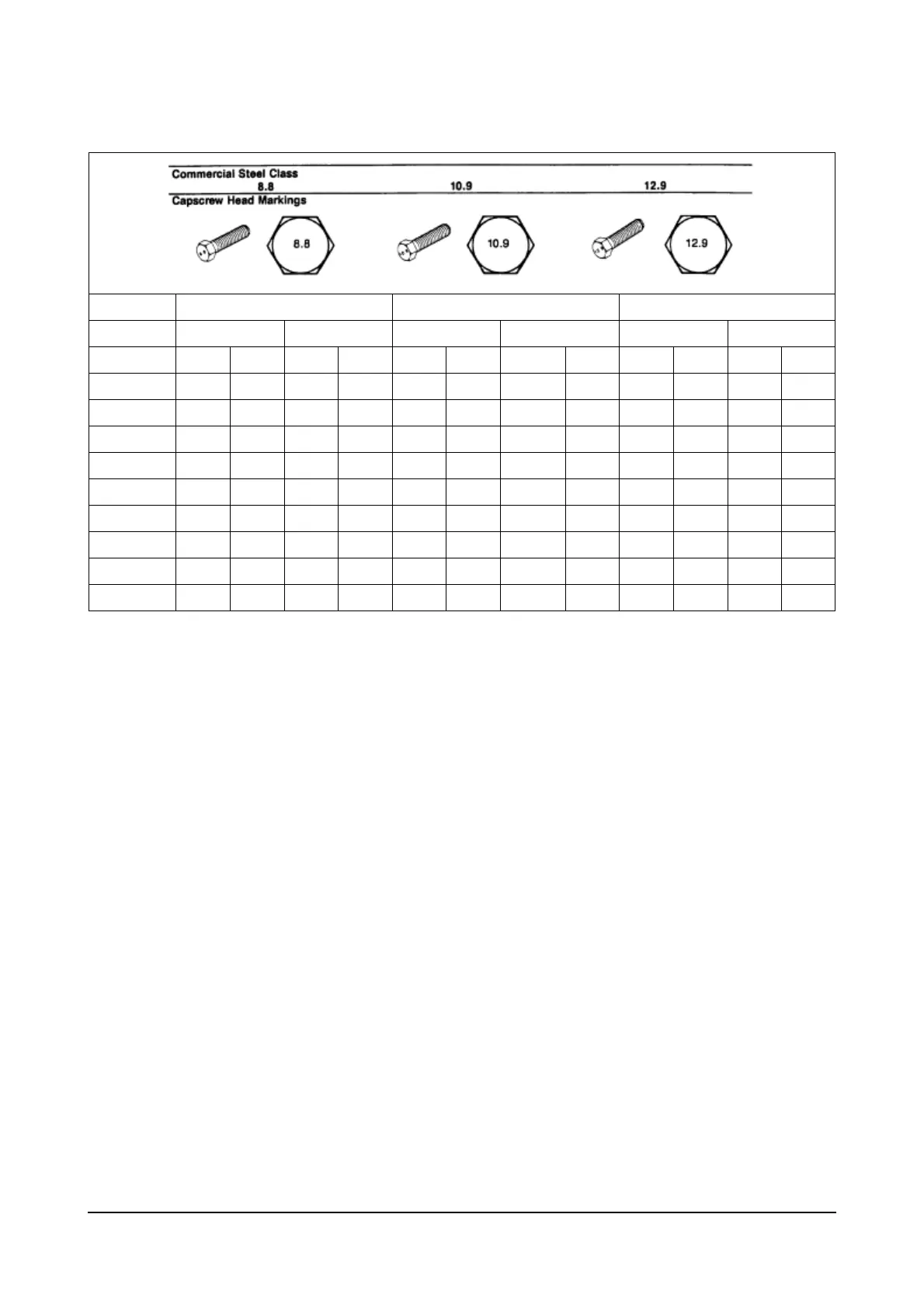

Capscrew Markings and Torque Values – Metric
Body Size Torque Torque Torque
Diameter Cast Iron Aluminum Cast Iron Aluminum Cast Iron Aluminum
mm N•m ft-lb N•m ft-lb N•m ft-lb N•m ft-lb N•m ft-lb N•m ft-lb
6 9 5 7 4 13 10 7 4 14 9 7 4
7 14 9 11 7 18 14 11 7 23 18 11 7
8 23 17 18 14 33 25 18 14 40 29 18 14
10 45 33 30 25 65 50 30 25 70 50 30 25
12 80 60 55 40 115 85 55 40 125 95 55 40
14 125 90 90 65 180 133 90 65 195 145 90 65
16 195 140 140 100 280 200 140 100 290 210 140 100
18 280 200 180 135 390 285 180 135 400 290 180 135
20 400 290 — — 550 400 — — — — — —
