D439E Service Manual 5. Service Tool
212
Basic Usage of G-scan
Power supply
1. Supply external power
There are 4 methods for supplying external DC power to G-scan.
• With DLC cable(P/No: 150109 - 00050)
• From the cigar lighter terminal in Center Facia with cable-cigar
• From the battery of vehicle through cable-battery
• From the AC/DC adapter
CAUTION

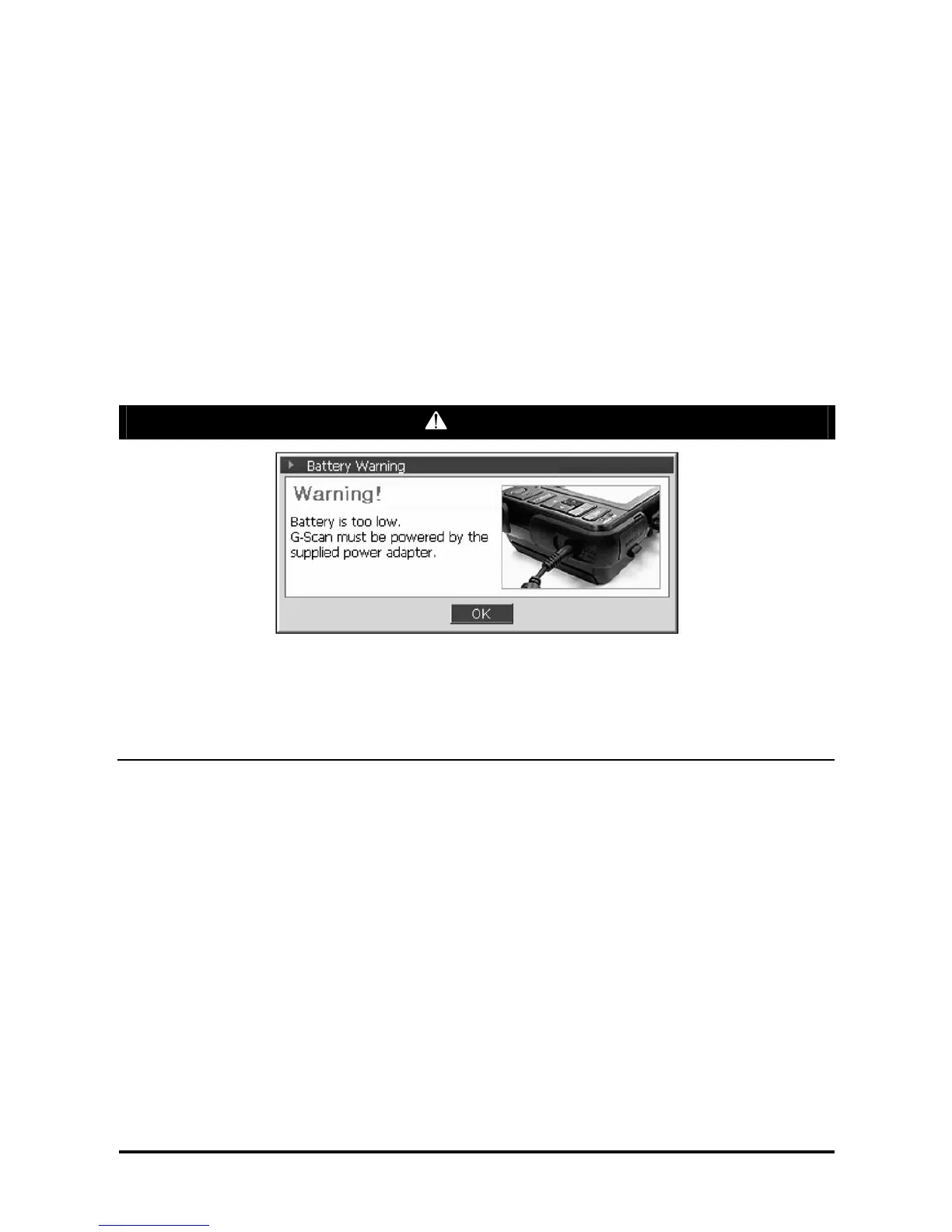

<Figure 1: Low Voltage Warning for Rechargeable Battery>
<Figure 1> is the message warning the low battery. If you see this message, supply the external power
immediately.
Otherwise, G-scan will be turned OFF automatically.
