Description for Main Components of H/W
Even G-scan is operated through the touch screen, for more fluent operation, please be familiar with the
functions and positions of the buttons, connecters and LEDs.
Touch Screen and Hardware Buttons

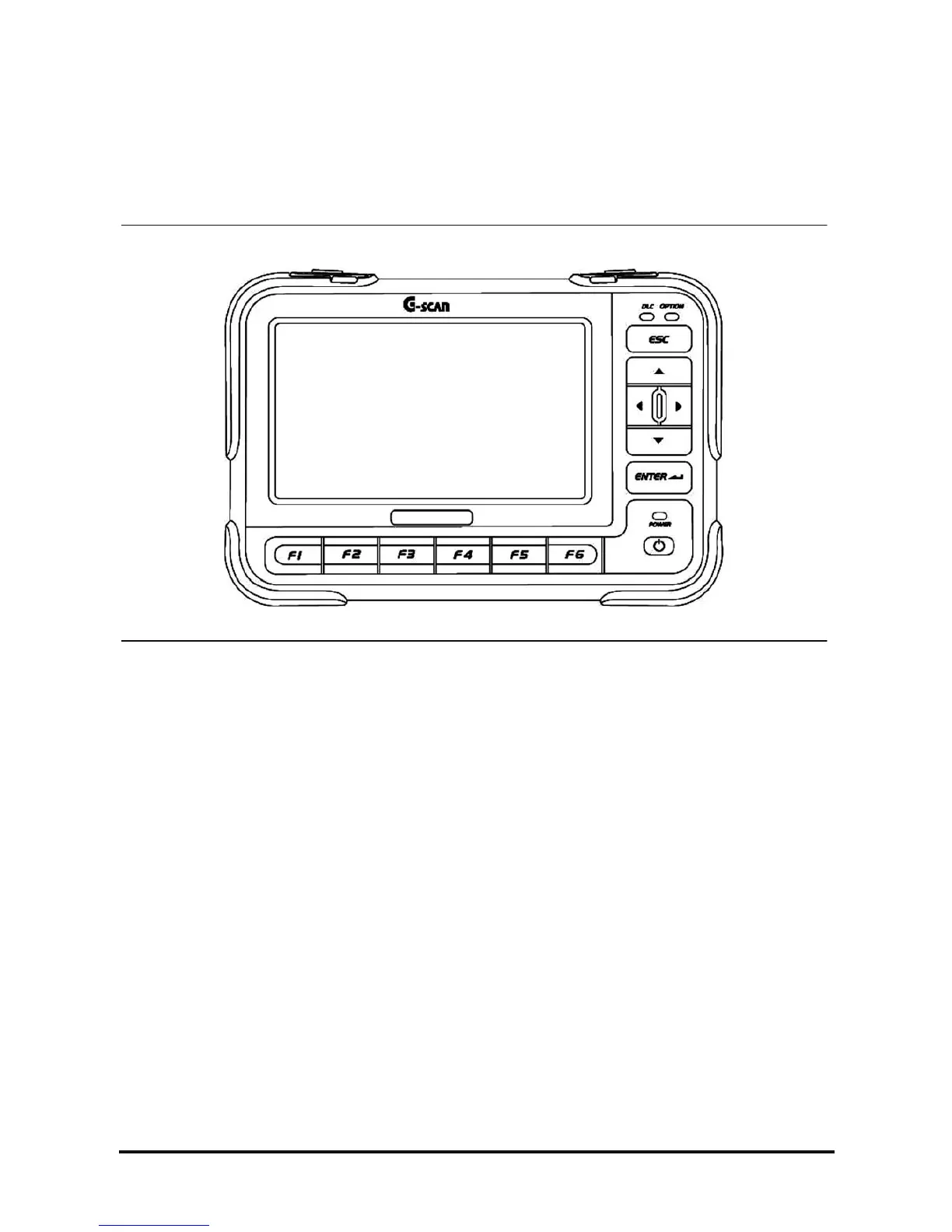

<Figure 1: Front view of G-scan>
