D439E Service Manual 2. Engine Mechanical System (D439E)

Crankcase

Flywheel

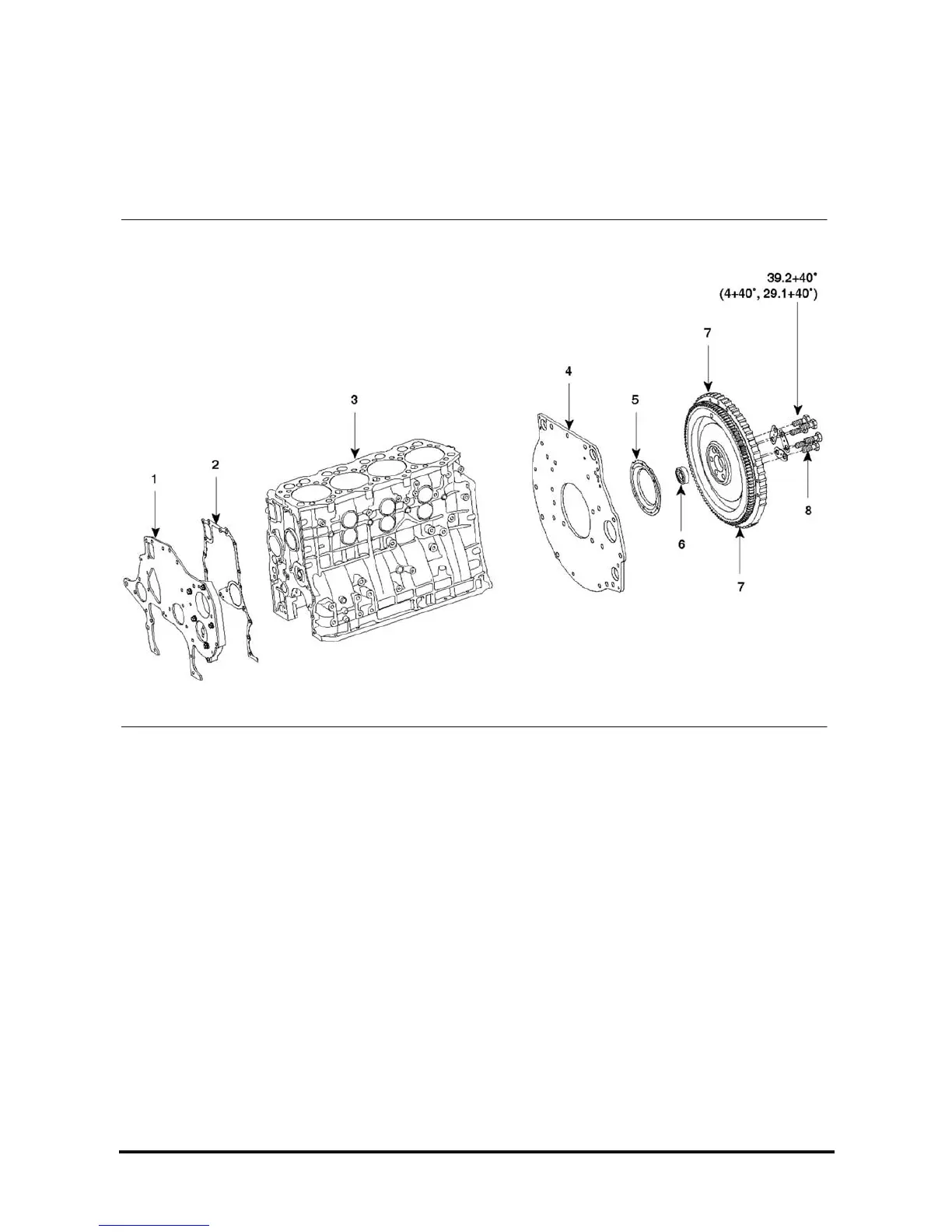

Components

1. Front plate

2. Gasket

3. Crankcase

4. Rear plate

5. Rear oil seal

6. Pilot bearing

7. Flywheel

8. Flywheel mounting bolt

Tightening Torque : Nm(kgf.m, Ib-ft)
