D439E Service Manual 5. Service Tool

289

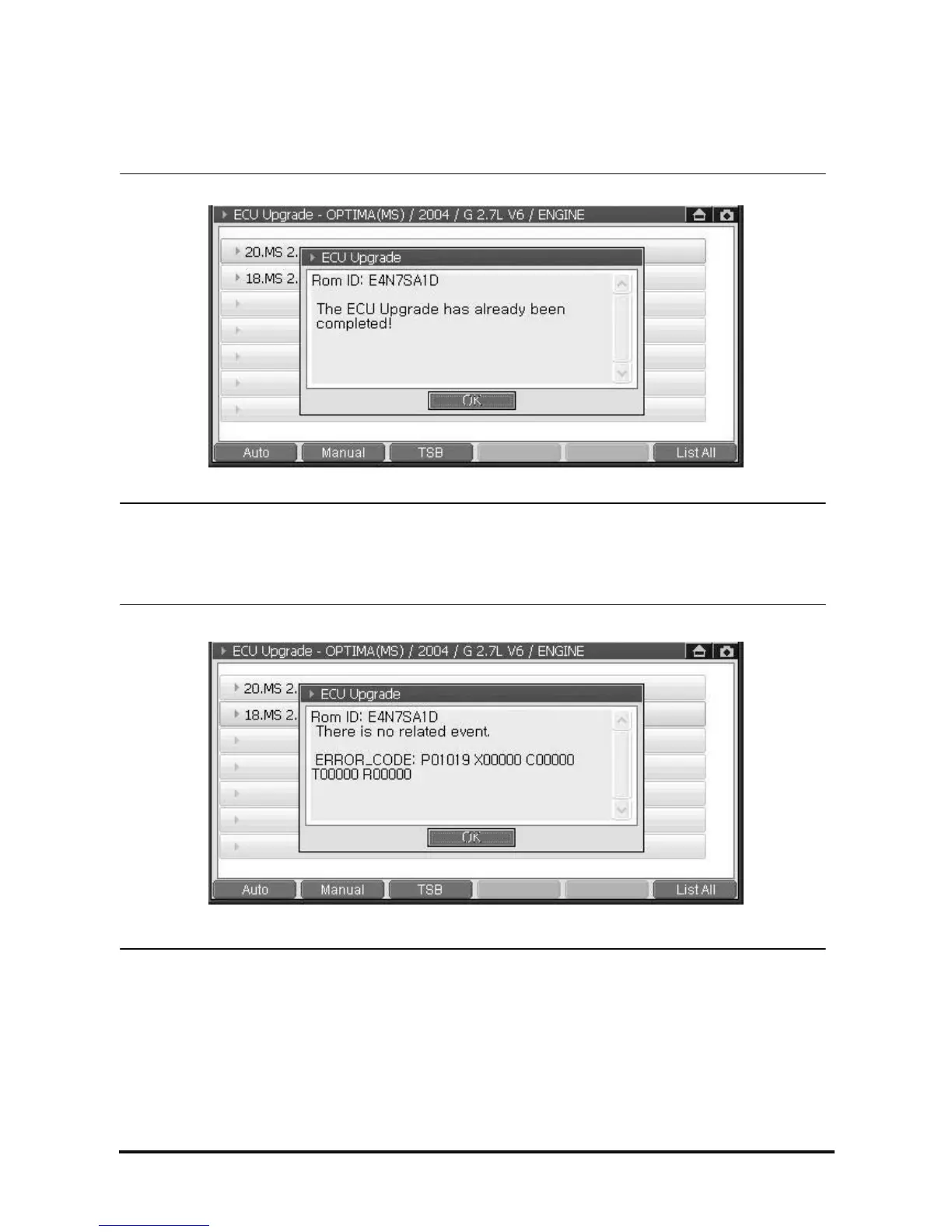

Error or Information Message:

When the vehicle was upgraded already with selected event

Wrong event is selected and applied.
