D439E Service Manual 5. Service Tool
355
Exchanging the Cigar-Cable Fuse

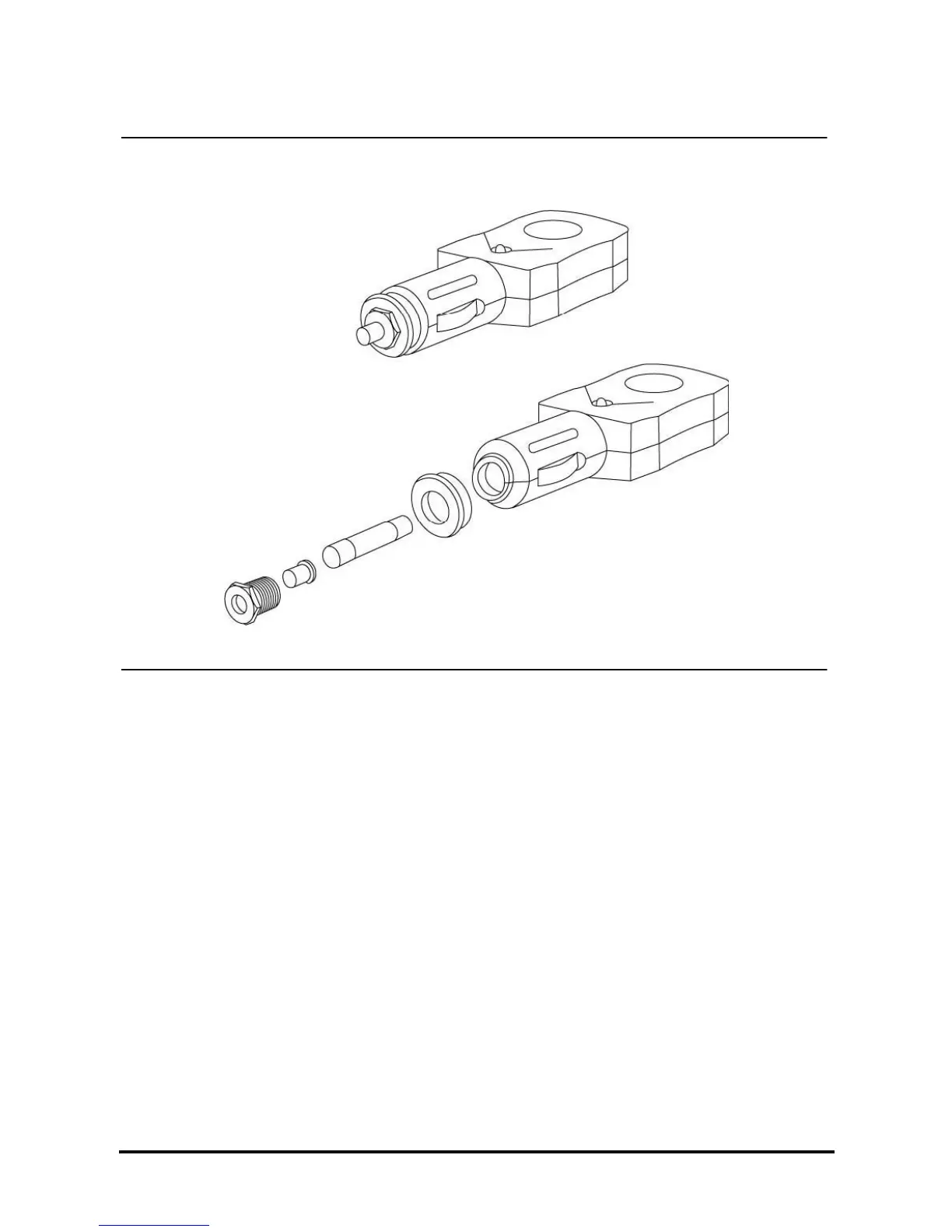

<Figure 5: Disassemble the Cable . Cigar>
1. Turning the portion marked in the <Figure 5> to the counter clockwise direction with the 10mm Hexagonal
wrench, it is disassembled as shown in <Figure 5>.
2. After exchanging the fuse (250V, 4A), assemble it in reversed order of disassemble.
