Operation Section
164
NOTICE
The transmission of your lift truck may be reversed
under full power up to a travel of 6.0 km/h (3.73
mph). But the Inhibit Speed of Auto Shift is set by
the factory at 4~5 km/h (2.5~3.2 mph) because
reversing the transmission at lower travel speeds
prolongs the lift of the transmission, axle shafts and
tires.
Diagnostics Features

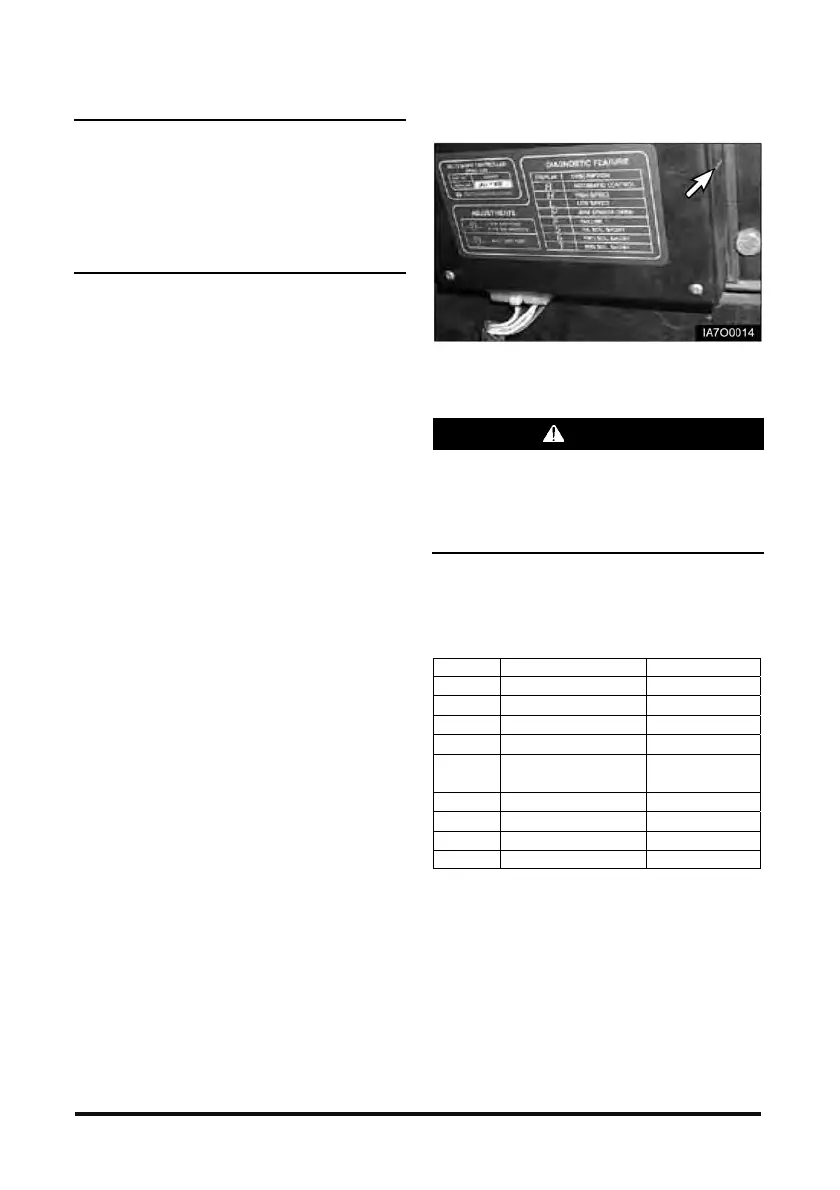

ASC-208 has internal indicator on the right side of
the controller for displaying the selected gear and
the abnormal condition.
WARNING
Do not diagnose or repair Auto Shift Controller
Faults unless trained and authorized to do so.
Improper performance of maintenance
procedures is dangerous and could result in
personal injury or death.
Below is a description applicable for many ASC-208
implementations.
• Display for Operator
Display Description Remark
A Automatic operation
H High speed At 2nd shift gear
L Low speed At 1st shift gear
PT/M Speed sensor open Flashing
E
E/G Speed sensor
open
Flashing
F Controller fault Flashing
5 H/L Sol. Short Flashing
6 Forward Sol. Short Flashing
7 Reverse Sol. Short Flashing
This information is given during normal operating
when something special happens.
For example, on ASC-208's with the speed sensor,
one of the indicators is used to indicate a sensor
problem.
