Operation Section
175
Method and Caution for
Cabin Tilting (Optional)

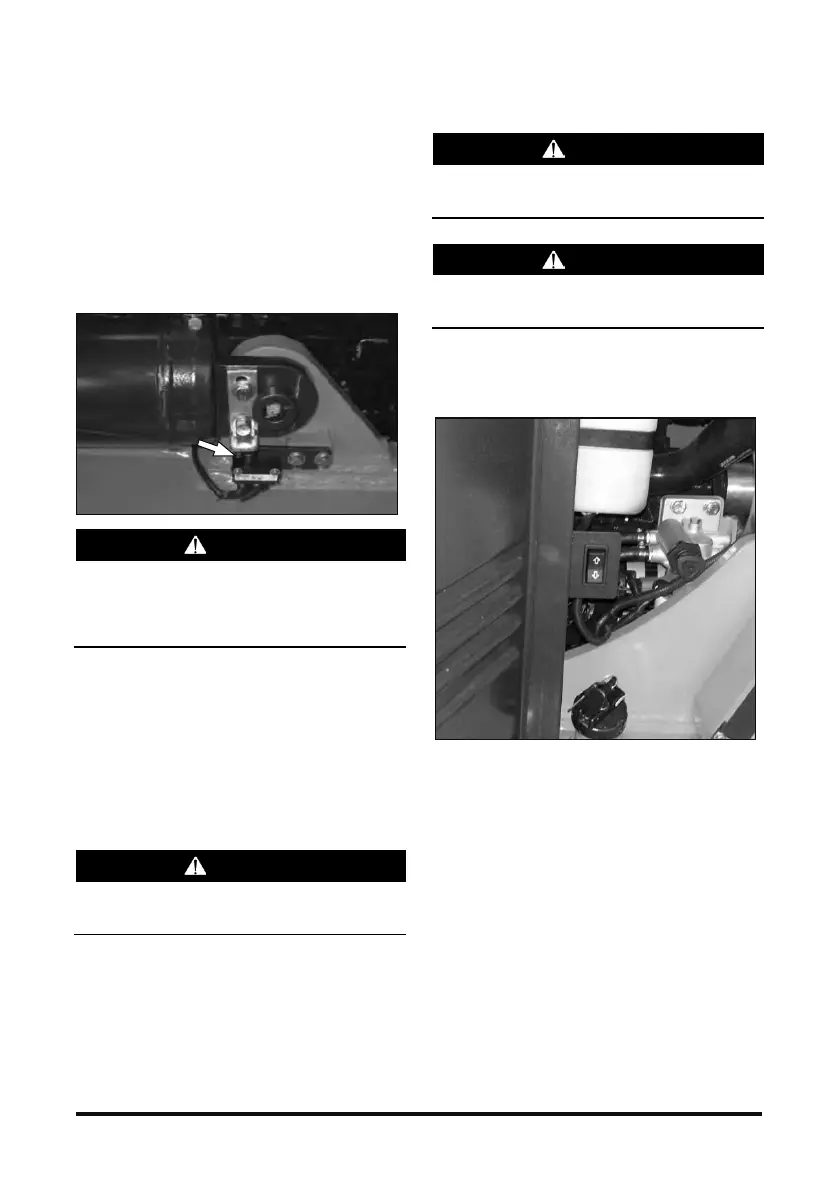

Cabin Tilting
Cabin Tilting Limit Switch
Do not remove the switch on the left tilting cylinder.
The switch protects the front glazing during cabin
tilting. The mast must be at a forward angle of at
least 6 degrees for tilting operation.
WARNING
If the cabin tilting limit switch is not active, the
cabin will be tilted when the mast is inclined
backwards. This may damage cabin chassis or
cabin front glazing.
Do not tilt the cabin when the mast is tilted
backwards. If the cabin tilting limit switch is
damaged or incorrectly adjusted, the cabin may be
tilted and the cabin may be damaged.
Cabin Door
Check that the cabin door is closed before tilting the
cabin.
WARNING
If the cabin door is open when tilting, the cabin
door may touch the frame and damaged.
Cabin Tilting (power type)
WARNING
Make sure that there is sufficient space before
tilting the cabin.
WARNING
If the pin is locked, the cabin structure can be
damaged in tilting operation.
Press the tilting switch on top of the left hood to tilt
the cabin. Press the upper or lower arrow switches
to open or close the cabin, respectively.
