Mast Channels - Lubricate

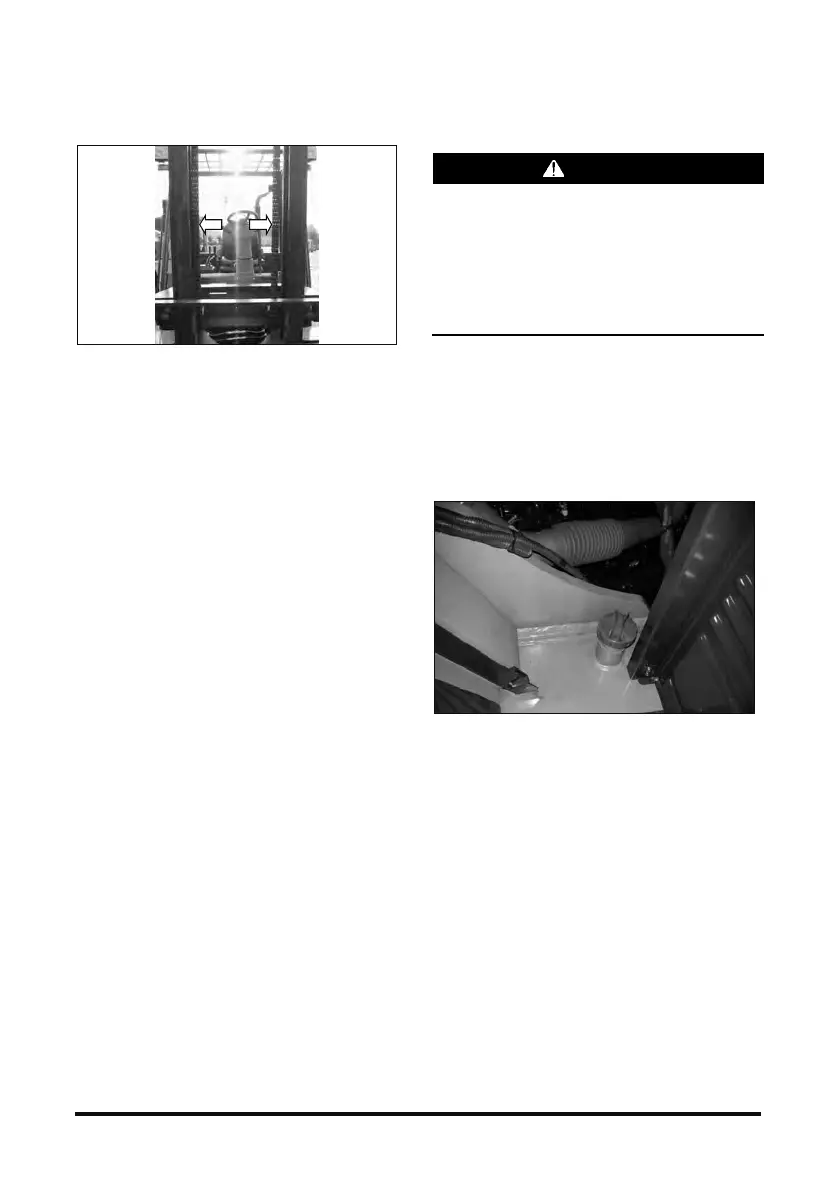

Typical Example
The channels on the roller-type mast require a
break-in period. Apply a light film of lubricant on the
channels where the rollers ride. This will prevent
metal peel until the rollers set a pattern.
DEF/Ad-Blue Fluid Level - Check
1. Start the engine and check DEF/Ad-Blue level at
the LCD.
2. If DEF/Ad-Blue level is less than 20%, must refill
DEF/ Ad-Blue in the DEF/ Ad-Blue tank.
Hydraulic Oil Level - Check
WARNING
At operating temperature, the hydraulic tank is
hot and under pressure.
Hot oil can cause burns.
Remove the filter cap only when the engine is
stopped, and the cap is cool enough to touch
with your bare hand. Remove the filter cap
slowly to relieve pressure.
1. Operate the lift truck for a few minutes to warm
the oil. Park the lift truck on a level surface, with
the forks lowered, mast tilted back, parking
brake engaged, transmission in NEUTRAL and
the engine stopped.
2. Raise the hood and seat assembly. Make sure
the air lift cylinder securely holds the hood open.
Typical Example
3. Check the oil level.
4. Maintain the oil level to the FULL mark on the
dip stick/filter cap assembly.
5. Install the dip stick/filter cap assembly.
