Maintenance Section
224

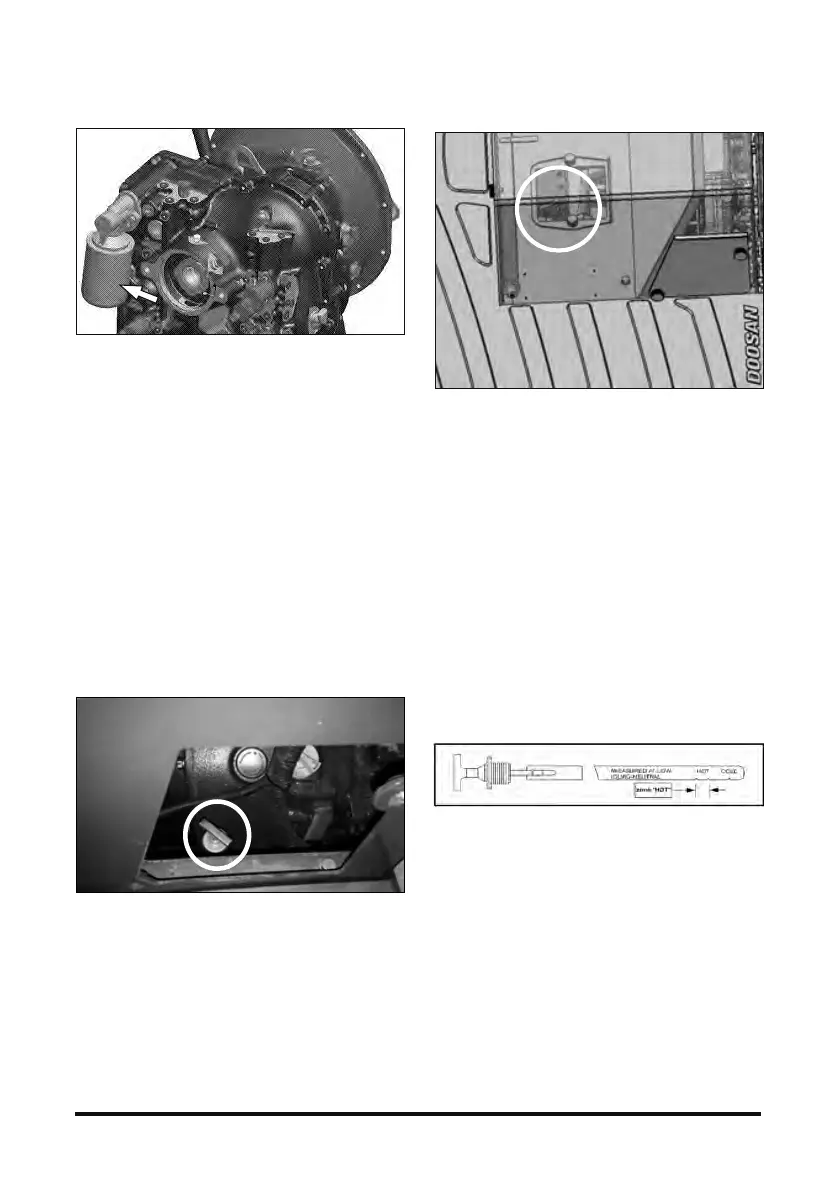

ZF 3WG94
Typical Example D60/70/80/90S-7 (3 Speed)
4. Rotate the oil filter counter clockwise to remove
it.
• Replacement Interval of Transmission Oil Filter
D60/70/80/90S-7 (3 Speed)
: Every 1,500 Service Hours or 9 Months.
D(G)60/70S-7 (2 Speed)
: Every 1,000 Service Hours or 6 Months.
5. Put a small amount of clean oil on the seal
gasket on the new filter. Install the filter by hand.
When the filter contacts the base, tighten it an
additional 3/4 turn.
6. Open the access left door of the seat box.(3
Speed Only)
Typical Example D60/70/80/90S-7 (3 Speed)
7. Open the access door in the seat box.(2 Speed
Only)
Typical Example D(G)60/70S-7 (2 Speed)
8. Remove the dip stick/filter cap. Fill the
compartment with oil. See "Refill Capacities".
Install the dip stick/filter cap.
9. Close the cabin and hood assembly.
10. Start the engine.
11. With the service brake applied and engine at low
idle, shift the transmission to forward and
reverse to fill the clutches.
12. Shift the transmission into NEUTRAL. Engage
the parking brake.
13. Loosen the oil dipstick counter-clockwise,
remove and clear it. Insert the oil dipstick slowly
into the oil level tube until contact is obtained,
and pull the dipstick out again.
14. When the oil temperature is around 40°C, the
marking on the oil dipstick must be lying above
the cold start mark, "COLD". When the oil
temperature is around 80°C, the oil level must
be lying in the zone "HOT".
15. Install the oil dipstick again and tighten it
clockwise.
16. Check for oil leaks at the filter and drain plug.
17. Stop the engine.
