Operation Section
49

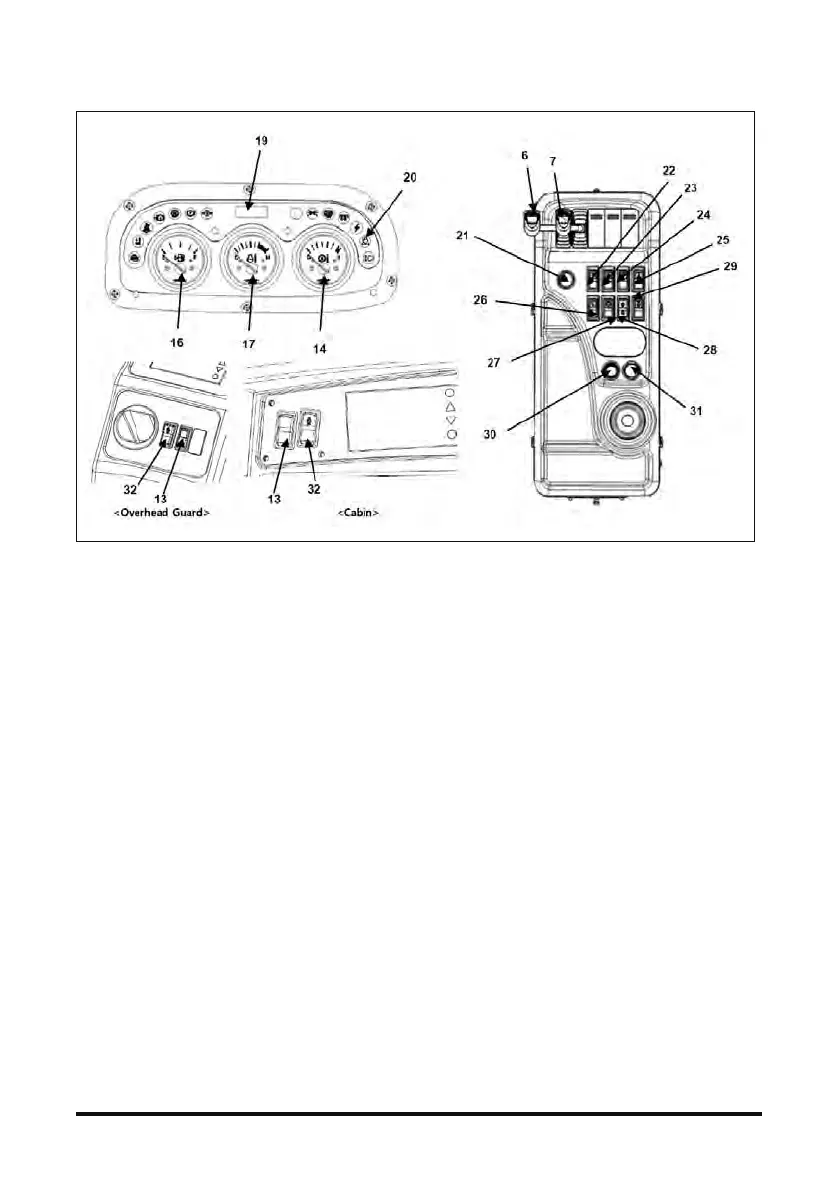

1. Horn Switch
2. Steering Wheel
3. Forward/Backward Control Lever
4. Instrument Panel
5. Parking Brake Lever.
6. Lift Lever
7. Tilt Lever
8. Turn Signal Lever
Front wiper & washer (optional)
9. Start Key Switch
10. Accelerator Pedal
11. Service Foot Brake Pedal
12. Inching Control Pedal
13. SCR Cleaning-DeSOx Switch (Diesel)
14. Transmission Oil Temperature Gauge
15. Speedometer (cabin option)
16. Fuel Level Gauge(Diesel)
17. Engine Coolant Temperature Gauge
18. SCR Display (81kW Engine Only)
19. Hour Counter
20. Warning Lamp Panel
21. Plug
22. Headlamp & Light Switch
23. Automatic Transmission Switch(Diesel)
24. Inching Switch (fuel saving, 3 speed)
25. Danger Lamp Switch (optional)
26. Rear Lamp Switch (optional)
27. Rear Wiper, Washer Switch (cabin)
28. Idle RPM Selector Switch (Diesel)
29. Emergency Engine Stop Switch (Diesel)
30. Cigar Jack Connector (24V, cabin)
31. Power Jack Connector (12V, cabin)
32. Multi Torque Switch (Diesel)
