General Arrangement Operating & Maintenance Manual
35

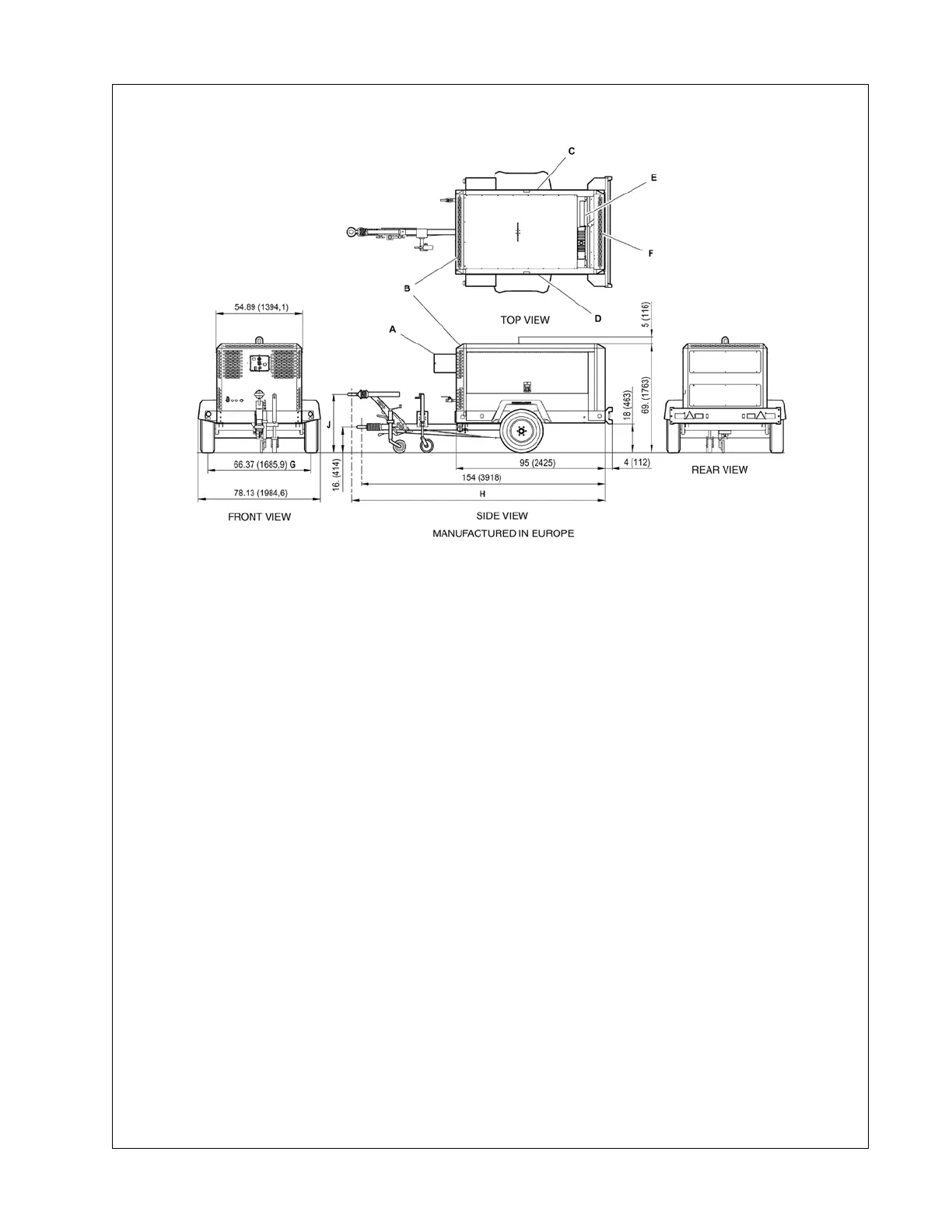

All dimensions in inches(mm) E Access items:
A Instrument panel access door Radiator fill
B Package air inlet F Package air outlet
C Access items: G Track width
Separator element & fill H Variable height drawbar
Compressor oil filter 162 (4114) minimum/168 (4277) maximum
Fuel filters J Variable height drawbar
Dipstick 17 (420) minimum/35 (880) maximum
Engine oil fill
Coolant bottle fill
D Access items:
Fuel fill
Engine oil filter
Fuel filter
Engine and compressor air filter
