Operating & Maintenance Manual General Arrangement
34

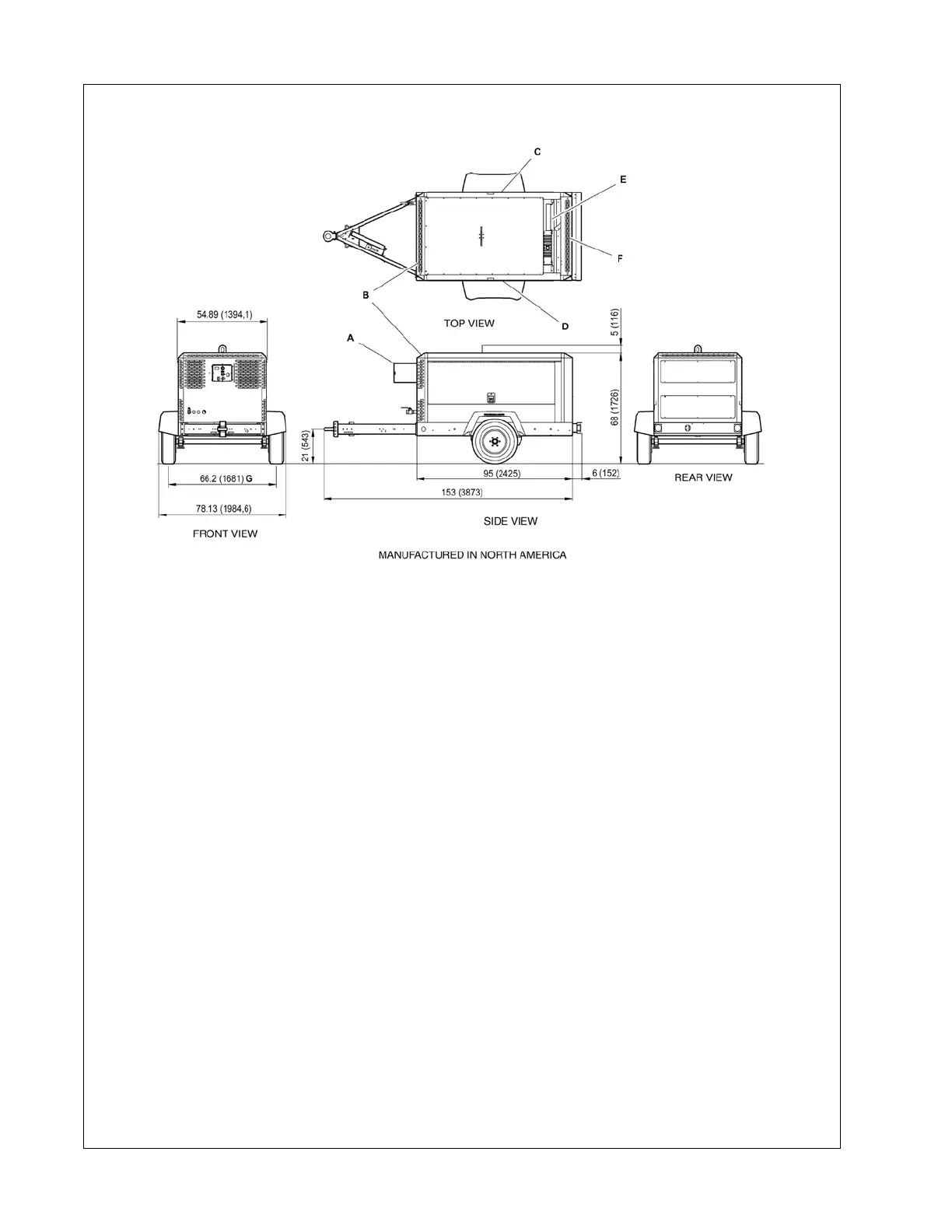

General Arrangement
All dimensions in inches(mm) D Access items:
A Instrument panel access door Fuel fill
B Package air inlet Engine oil filter
C Access items: Fuel filter
Separator element & fill Engine and compressor air filter
Compressor oil filter E Access items:
Fuel filters Radiator fill
Dipstick F Package air outlet
Engine oil fill G Track width
Coolant bottle fill
