4-30 Inspection, Maintenance and Adjustment 022-00029AE Operation and Maintenance Manual
CHANGE ENGINE OIL AND FILTER
NOTE: Engine oil and filter must be changed after first 50 hours of operation to comply with new
machine break-in requirements. After first change, oil and filter should be changed every
250 hours.

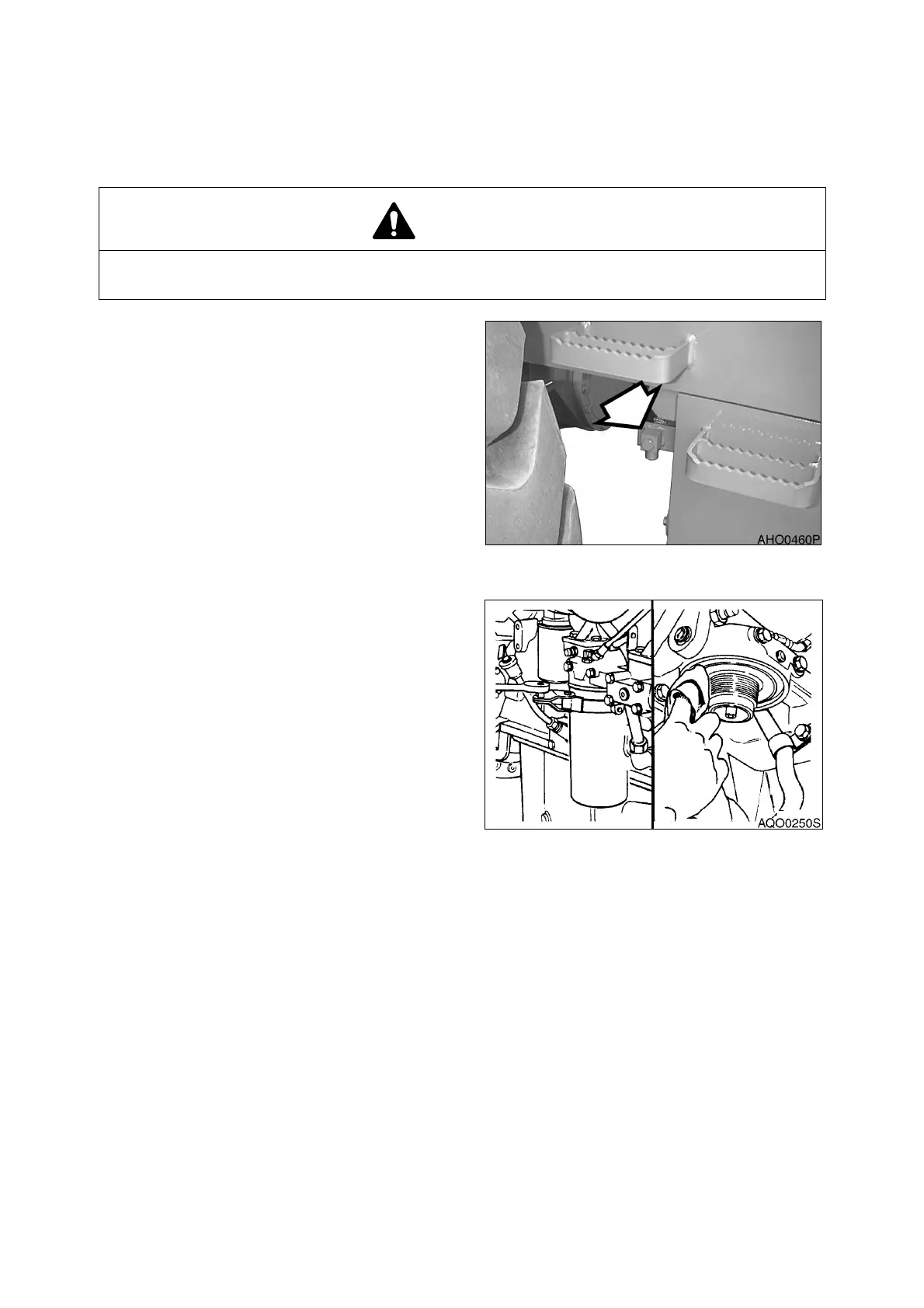

1. Position a larger container under drain
cock beside left wall of fuel tank. Loosen
drain cock and allow all engine oil to drain
out. Tighten drain cock.
NOTE: Oil warming is good when
replacing oil. If machine is cold,
operate the engine to bring the
coolant temperature up to
about 40°C (104°F). When the
needle of the coolant
temperature gauge reaches the
middle of the "WHITE ZONE,"
the temperature is about 40°C
(104°F).
2. Replace engine oil filter. The engine oil
filter is a spin-on type (Figure 55). Remove
and discard filter.
3. Install new filter, Apply a small amount of
oil around filter gasket. Screw filter on
head until gasket contacts head by hand,
turn filter 3/4~1 turn more with filter
wrench.
NOTE: See “Fluid Capacities” on
page 4-5 for capacity.
4. Refill engine with correct oil through oil fill
port. Refer to Lubrication Table of this
manual for recommended oil for the
operating conditions.
5. Start engine and check engine oil pressure
light.
6. Shutdown engine. Lock for signs of leaks
at filter. Recheck oil level.
CAUTION!
Never attempt to change oil or filter on a hot engine. Hot oil could splash and cause burns. Allow
engine to cool down before changing oil or filter.
Figure 54
Figure 55
