022-00029AE Operation and Maintenance Manual Operating Controls 2-23
1. PILOT CONTROL VALVE LEVER
(JOYSTICK)
Used to position bucket and boom. This
lever is capable of raising or lowering
boom, and crowding or dumping bucket.
When machine is being traveled, the lever
(joystick) can be "LOCKED" out, to prevent
any movement of bucket or boom. To
"LOCK" out lever (joystick), place pilot
cutoff switch in "LOCKED" position.
NOTE: If loader is equipped with log
forks the bucket dump circuit is
used to control the angle of the
forks and grasping action.

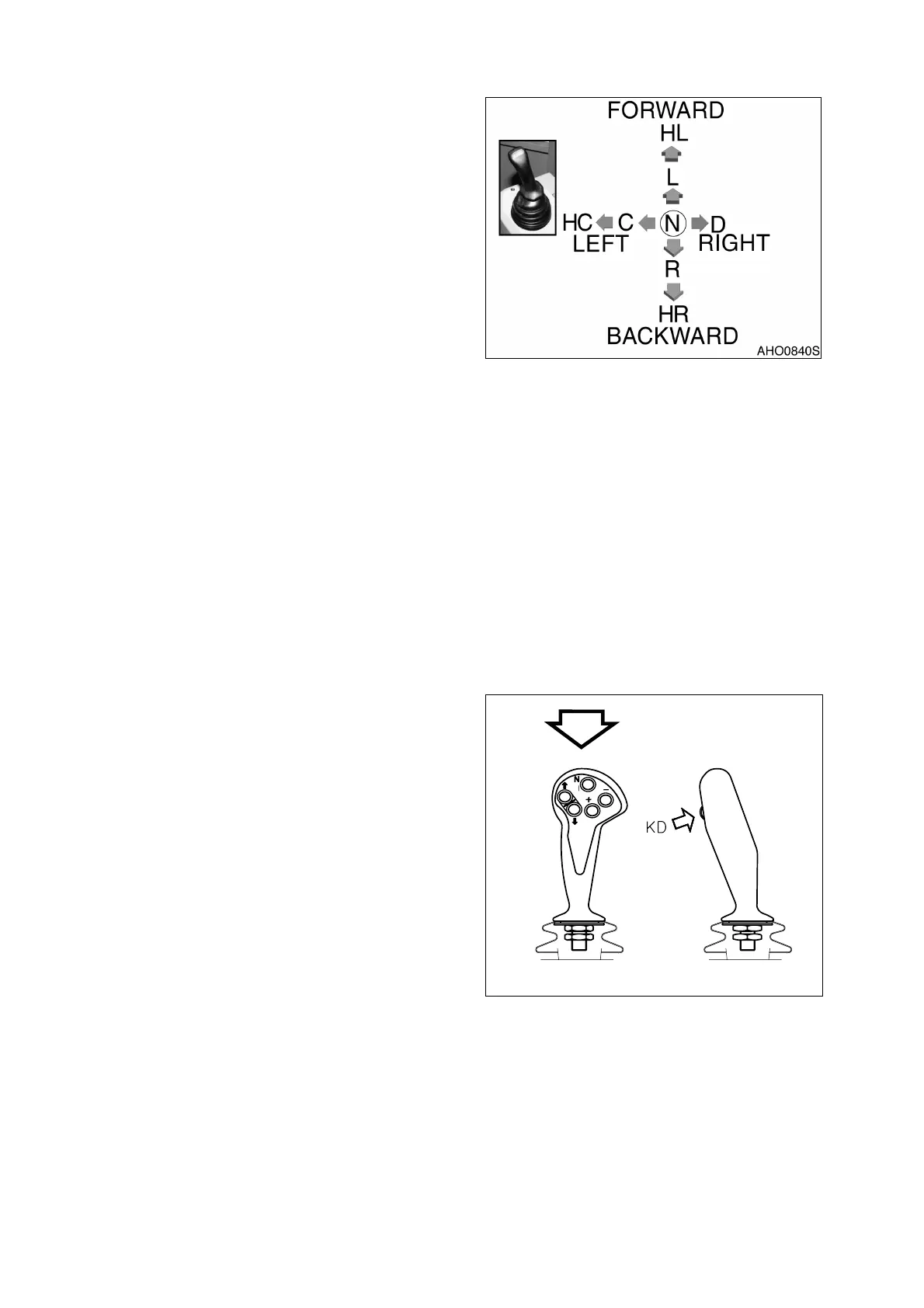

Pilot control valve lever (joystick) operating
pattern and description of operation.
1A. ERGO-II PILOT CONTROL VALVE
LEVER (JOYSTICK) (OPTION)
Ergo-II lever is a pilot control valve lever
that incorporates transmission control
functions. It is used to reduce hand and
arm movement for he otherwise complex
operation of machine.
A. Forward, Neutral and Reverse
Switches.
"↑" Button − When pressing this
switch, machine travels
"FORWARD."
"N" Button − When pressing this
switch, machine is in
"NEUTRAL."
"↓" Button − When pressing this
switch, machine travels
"REVERSE."
HL. Hold lever in
Lower Mode
L. Lower
HC. Hold lever in
Bucket Crowd /
Close Log Fork
C. Bucket Crowd /
Close Log Fork
N. Neutral D.Bucket Dump /
Open Log Fork
R.Raise
HR. Hold lever in
Raise Mode
Figure 46
AJO0591L
Figure 47
