022-00029AE Operation and Maintenance Manual Operating Controls 2-29
10. ALTERNATE IDLE SPEED SWITCH
The alternate low idle switch allows
operator to select an alternate idle speed
(about 1,200 rpm).
This feature is activated whenever the
normally open alternate low idle switch is
closed and 0 volts are detected by the
ECM on the alternate low idle signal line.
This is convenient to use when operator
wants to decrease warm-up time in the
winter.
O. "OFF" position.
I. "ON" position.
11. ROTATING BEACON SWITCH (OPTION)
O. "OFF" position.
I. When this switch is moved to "ON"
position, it activates the warning light.
12. CUP HOLDER
Place to put beverages.
13. ENGINE DIAGNOSTIC SWITCH
If the engine warning light (yellow), engine
stop light (red), or the engine maintenance
light (blue), comes on when the engine is
running, it means a fault code has been
recorded. When this occurs, the engine
diagnostic switch allows the operator to
view the fault codes.
The active fault codes can be viewed using
the engine stop light (Red) as described
below.
A. The engine must be shut off (not
running).
B. The starter switch must be in the
"ON" position.
C. The engine diagnostic switch must
be in the "I" position.
If a fault code is displayed, contact your
authorized dealer for repair.
To know the fault code information, refer to
the engine control system of shop manual.

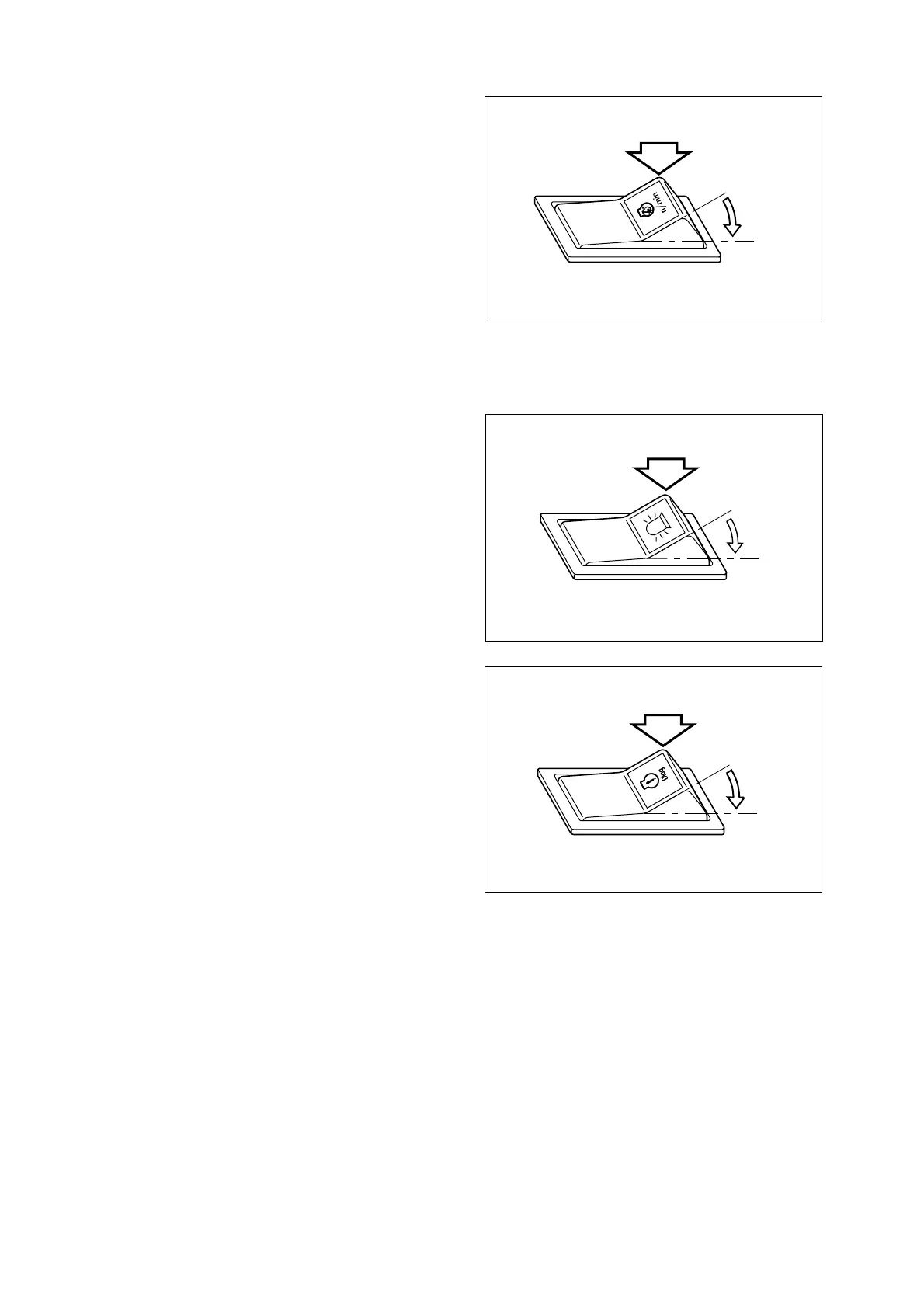

AQO0100L
