2-30 Operating Controls 022-00029AE Operation and Maintenance Manual
14. IDLE SPEED CONTROL SWITCH
The idle speed control allows the idle
speed to be adjusted in 25 rpm increments
by pressing the idle speed control switch.
The switch will only work from 800 to 900
rpm.
Pressing the "I" position of the switch will
increase (+) engine rpm.
Pressing the "II" position of the switch will
decrease (-) engine rpm.
NOTE: This switch is also used to view
the next or previous fault code
in the diagnostic mode.
15. AUTOMATIC TRANSMISSION SWITCH
Automatic speed range:
• Forward - 2nd, 3rd, 4th.
• Reverse - 2nd, 3rd.
O. When this switch is in "O" (MANUAL)
position, travel mode is switched to
"MANUAL" and allows operator to
choose speeds manually.
I. When this switch is in "I" (AUTO)
position, gears are
"AUTOMATICALLY" changed to the
appropriate speed up to the limit set
by the transmission lever and
according to travel load and engine
rpm.

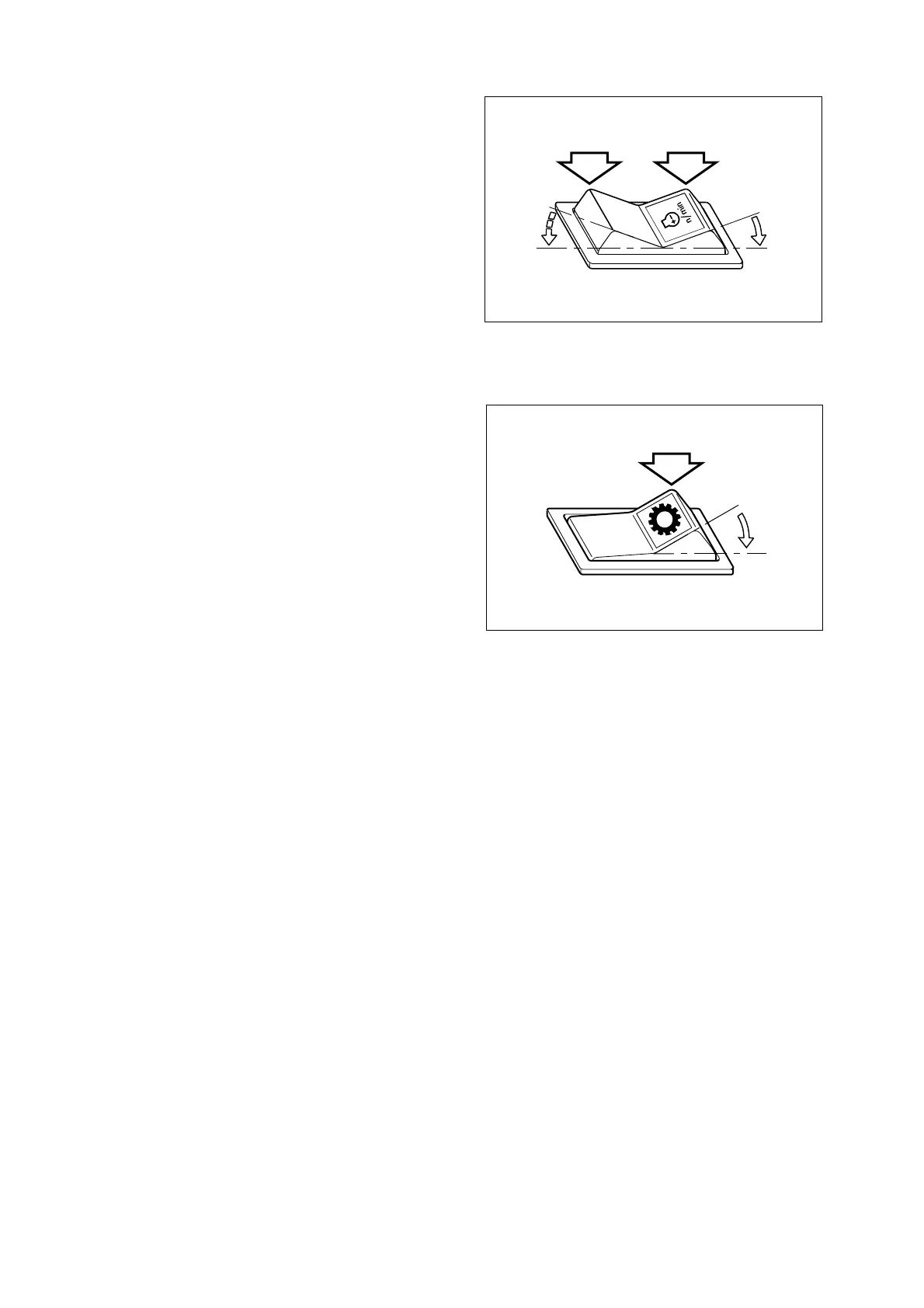

AQO0110L
O
O
II
I
Figure 62
Figure 63
A
HLB20071L
O
I
