Dorma ED 100 Mounting And Commissioning Instructions

45
150
106
45
120 120 95
451
155
B
D
A
C
120100
32
19
63
Ø 6.6
Upper edge door
Upper edge door
Lintel depth maximum ± 30 mm
Space for cable feed
Door without rabbet

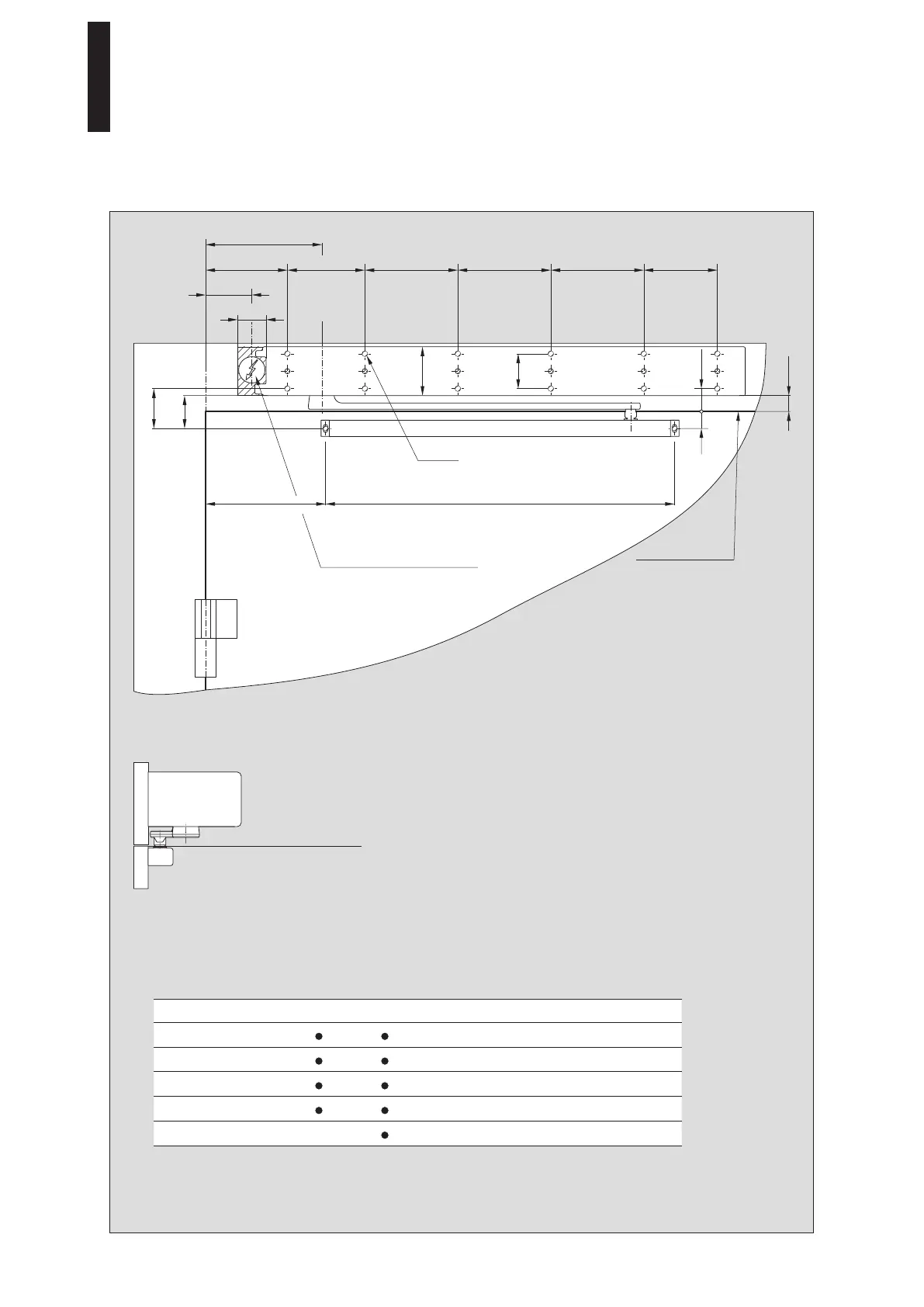

Assembly on the hinge side pull version with slide channel and 12.5 mm lever pin
Axis extension ED 100 ED 250 A B C D
Standard (9 mm) 31 mm 50 mm 22 mm 41 mm
20 mm 51 mm 70 mm 42 mm 61 mm
30 mm 61 mm 80 mm 52 mm 71 mm
60 mm 91 mm 110 mm 82 mm 101 mm
90 mm --- 121 mm 140 mm 112 mm 131 mm
ED 100, ED 250
—
10

Dorma ED 100 Specifications

General

Adjustable Closing Speed	Yes
Latching Speed	Adjustable
Type	Electromechanical
Power Supply	230 V AC, 50 Hz
Fire Rated	Yes
Backcheck	Adjustable
Delayed Action	Adjustable
Hold-Open Function	Yes
Finish	Silver
