Dorma ED 100 Mounting And Commissioning Instructions

45
150
106
45
120 120 95
451
155
B
D
A
C
120100
32
44
63
4
Upper edge door
Upper edge door
Space for cable feed

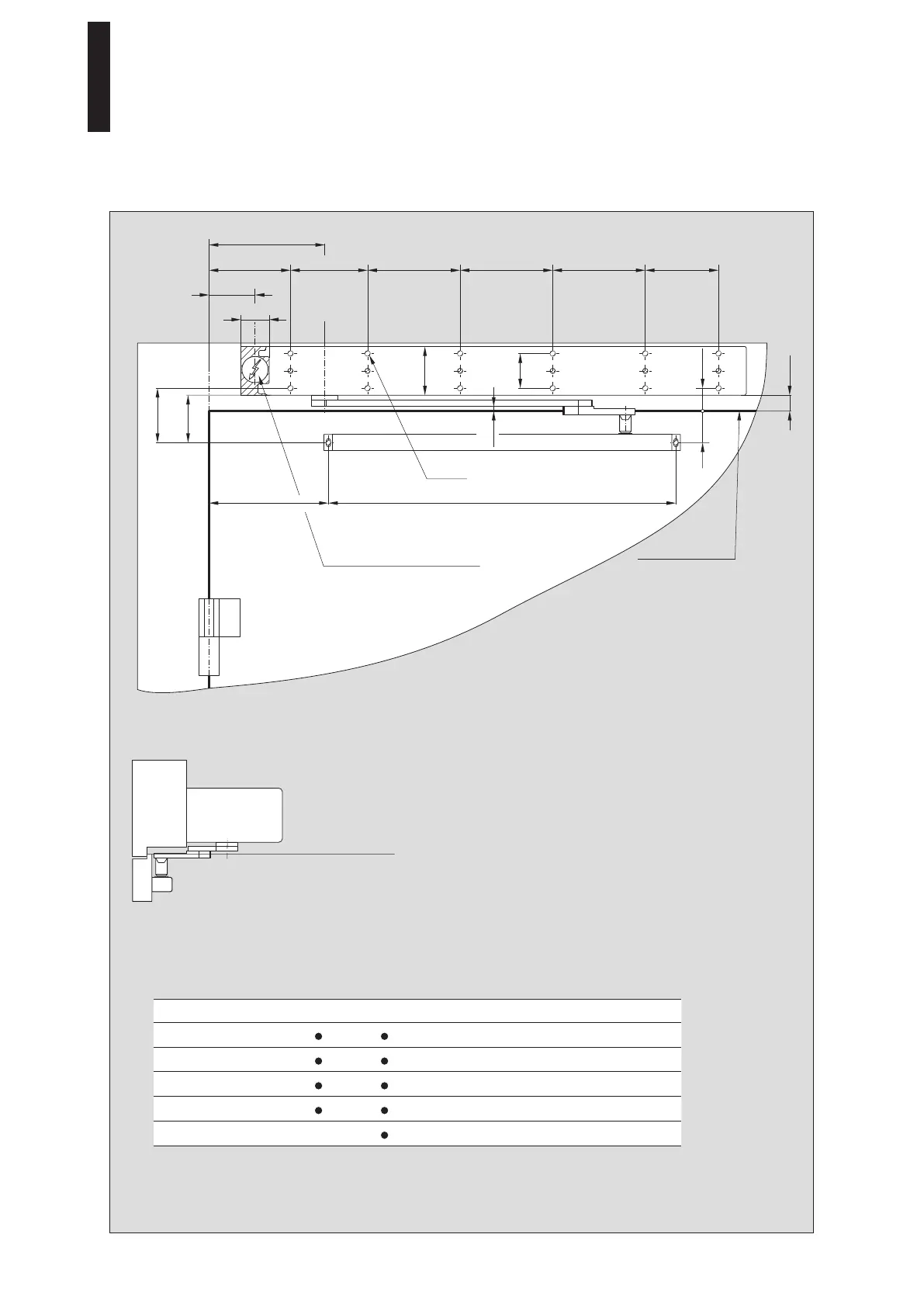

Assembly on the hinge side pull version with slide channel CPD and 25 mm lever pin
Lintel depth maximum 60 mm
Ø 6.6
Axis extension ED 100 ED 250 A B C D
Standard (9 mm) 31 mm 74 mm 22 mm 65 mm
20 mm 51 mm 94 mm 42 mm 85 mm
30 mm 61 mm 104 mm 52 mm 95 mm
60 mm 91 mm 134 mm 82 mm 125 mm
90 mm --- 121 mm 164 mm 112 mm 155 mm
 In case the CPD lever is used, about 30 mm must
be deducted from the actual lintel depth when the
parameter is set.
ED 100, ED 250
—
13

Dorma ED 100 Specifications

General

Adjustable Closing Speed	Yes
Latching Speed	Adjustable
Type	Electromechanical
Power Supply	230 V AC, 50 Hz
Fire Rated	Yes
Backcheck	Adjustable
Delayed Action	Adjustable
Hold-Open Function	Yes
Finish	Silver
