Dorma ED 100 Mounting And Commissioning Instructions

45
32
45
150
10612012095
451
155
B
D
A
C
120100
35
63
Lower edge frame
Lower edge frame
Space for cable feed

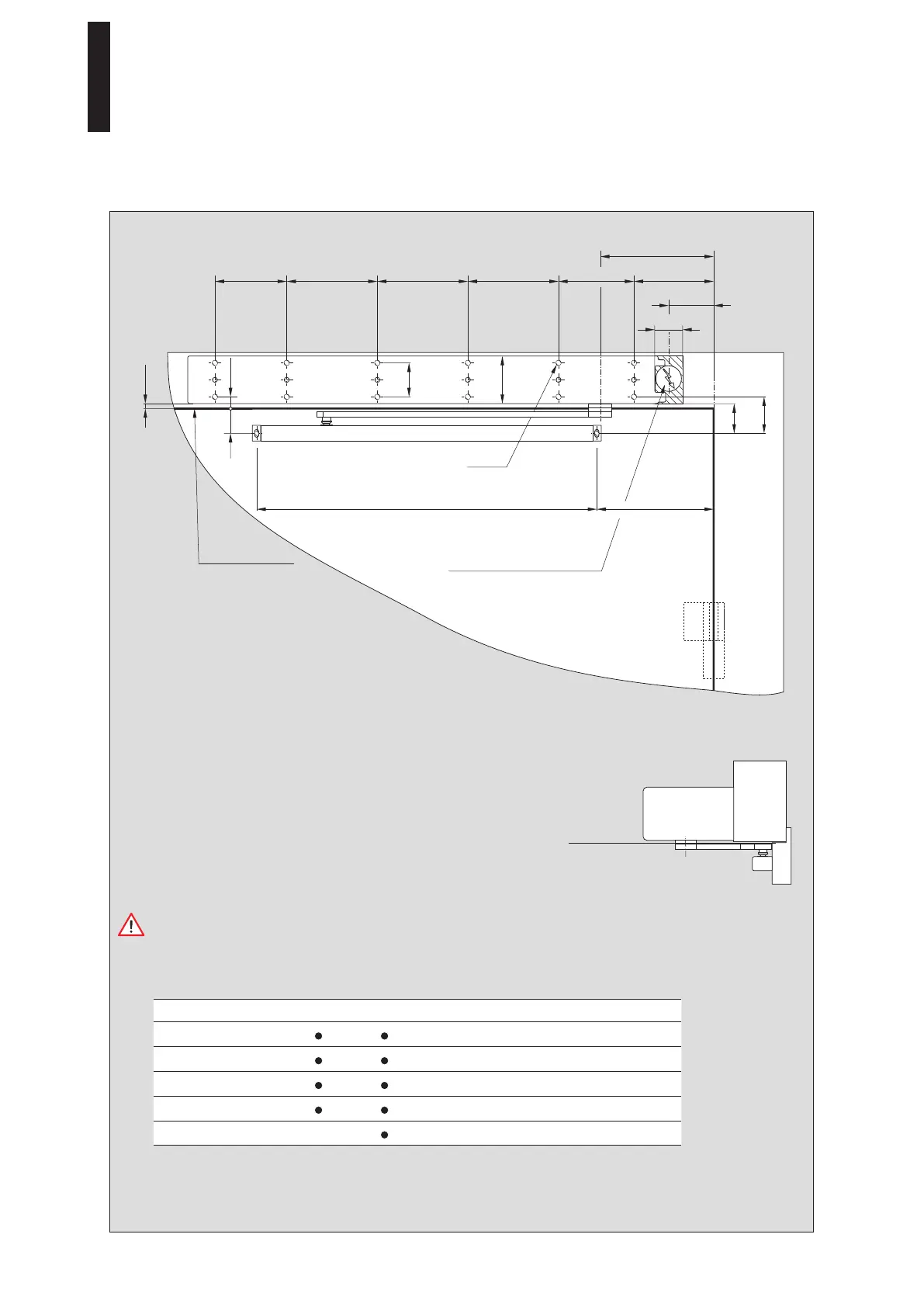

Assembly on the opposite hinge side push version with slide channel and 12.5 mm lever pin
Axis extension ED 100 ED 250 A B C D
Standard (9 mm) 15 mm 49 mm 6 mm 40 mm
20 mm 35 mm 69 mm 26 mm 60 mm
30 mm 45 mm 79 mm 36 mm 70 mm
60 mm 75 mm 109 mm 66 mm 100 mm
90 mm --- 105 mm 139 mm 96 mm 130 mm
Lintel depth maximum 60 mm
 The maximum opening width is 95°.
 The axis adaptor is turned 45°.
Not suitable for fire and smoke control doors!
Ø 6.6
ED 100, ED 250
—
14

Dorma ED 100 Specifications

General

Adjustable Closing Speed	Yes
Latching Speed	Adjustable
Type	Electromechanical
Power Supply	230 V AC, 50 Hz
Fire Rated	Yes
Backcheck	Adjustable
Delayed Action	Adjustable
Hold-Open Function	Yes
Finish	Silver
