Dorma ED 100 Mounting And Commissioning Instructions

45
45
150
10695
245
B
D
C
120100120120
50
32
63
A
33
Lower edge frame
Lower edge frame
ED 100 = 0 mm – 300 mm
ED 250 = 0 mm – 500 mm
Space for cable feed

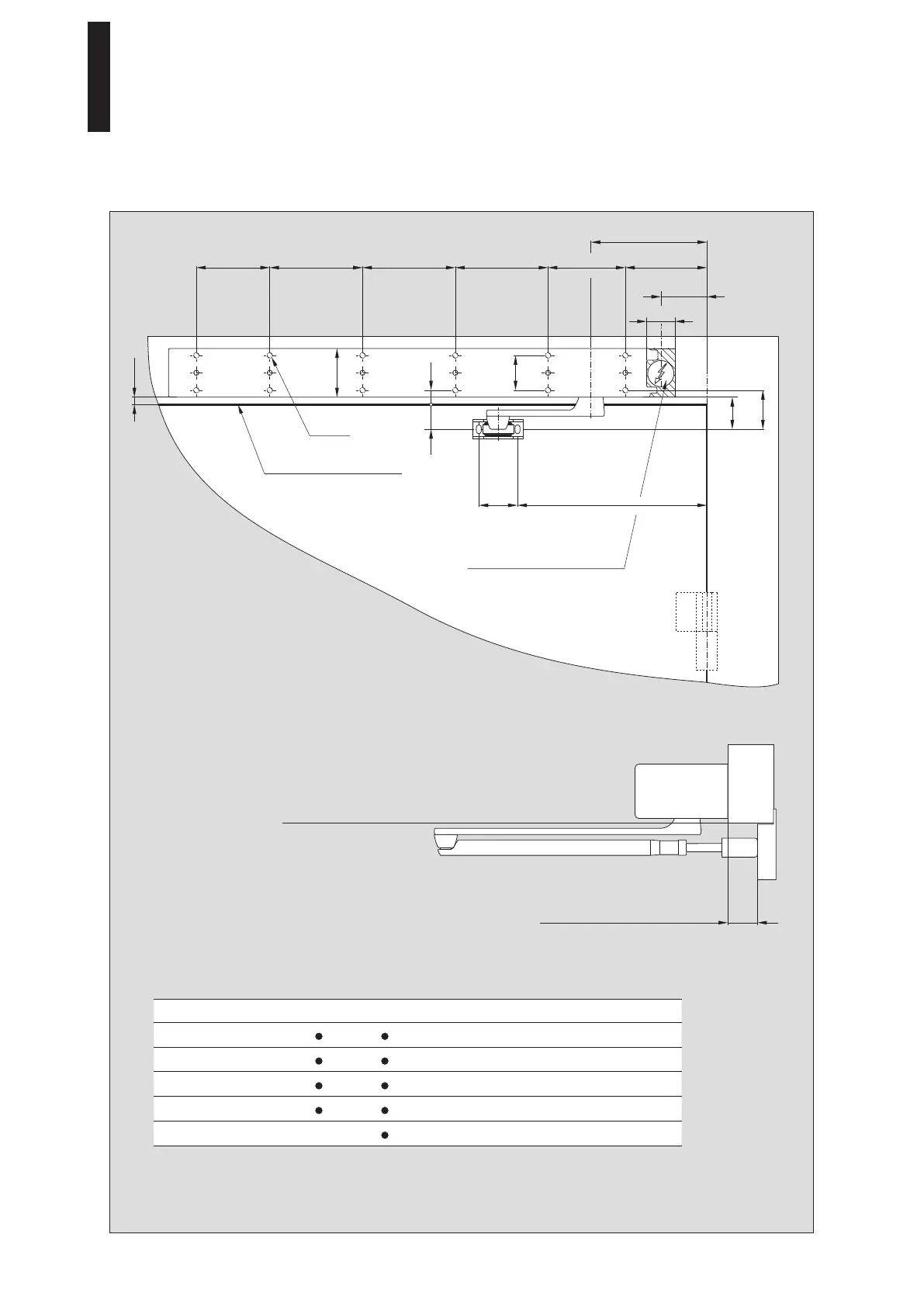

Assembly on the opposite hinge side push version with arm assembly
Axis extension ED 100 ED 250 A B C D
Standard (9 mm) 19 mm 51 mm 9 mm 42 mm
20 mm 39 mm 71 mm 29 mm 62 mm
30 mm 49 mm 81 mm 39 mm 72 mm
60 mm 79 mm 111 mm 69 mm 102 mm
90 mm --- 109 mm 141 mm 99 mm 132 mm
Ø 6.6
ED 100, ED 250
—
15

Dorma ED 100 Specifications

General

Adjustable Closing Speed	Yes
Latching Speed	Adjustable
Type	Electromechanical
Power Supply	230 V AC, 50 Hz
Fire Rated	Yes
Backcheck	Adjustable
Delayed Action	Adjustable
Hold-Open Function	Yes
Finish	Silver
