Dorma ED 100 Mounting And Commissioning Instructions

45
150
45
120120 95
451
195
B
D
A
C
120100
32
63
46
106
The parameter HS (clearance between hinges) must be changed into the negative.
Lower edge frame
Lower edge frame
Space for cable feed

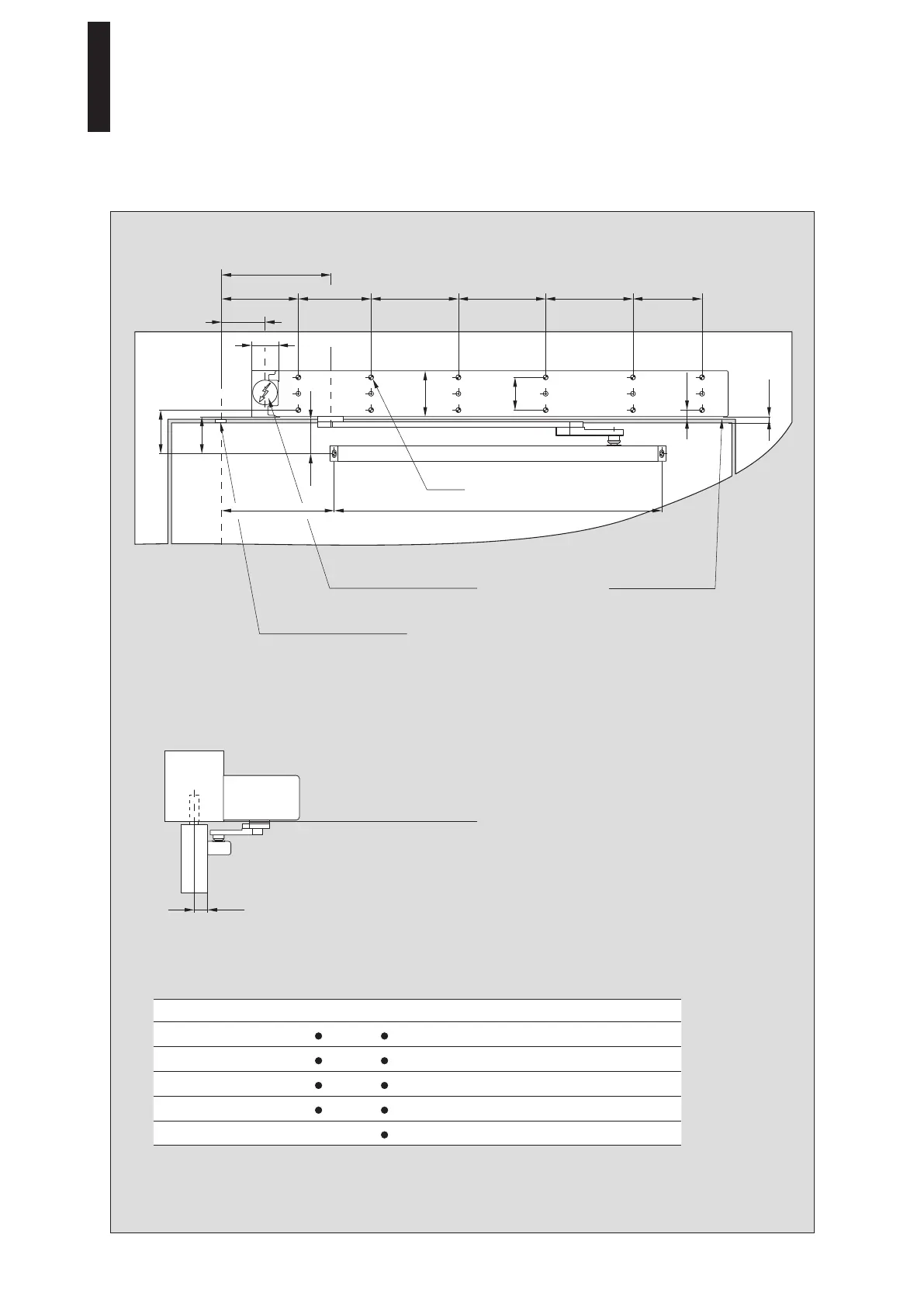

Assembly on the centrally supported door push version with slide channel CPD and 12.5 mm lever pin
Axis extension ED 100 ED 250 A B C D
Standard (9 mm) 15 mm 61 mm 6 mm 52 mm
20 mm 35 mm 81 mm 26 mm 72 mm
30 mm 45 mm 91 mm 36 mm 82 mm
60 mm 75 mm 121 mm 66 mm 112 mm
90 mm --- 105 mm 151 mm 96 mm 142 mm
Pivot point
-HS
Ø 6.6
ED 100, ED 250
—
16

Dorma ED 100 Specifications

General

Adjustable Closing Speed	Yes
Latching Speed	Adjustable
Type	Electromechanical
Power Supply	230 V AC, 50 Hz
Fire Rated	Yes
Backcheck	Adjustable
Delayed Action	Adjustable
Hold-Open Function	Yes
Finish	Silver
