Dorma ED 250 - Page 16

2
3
1

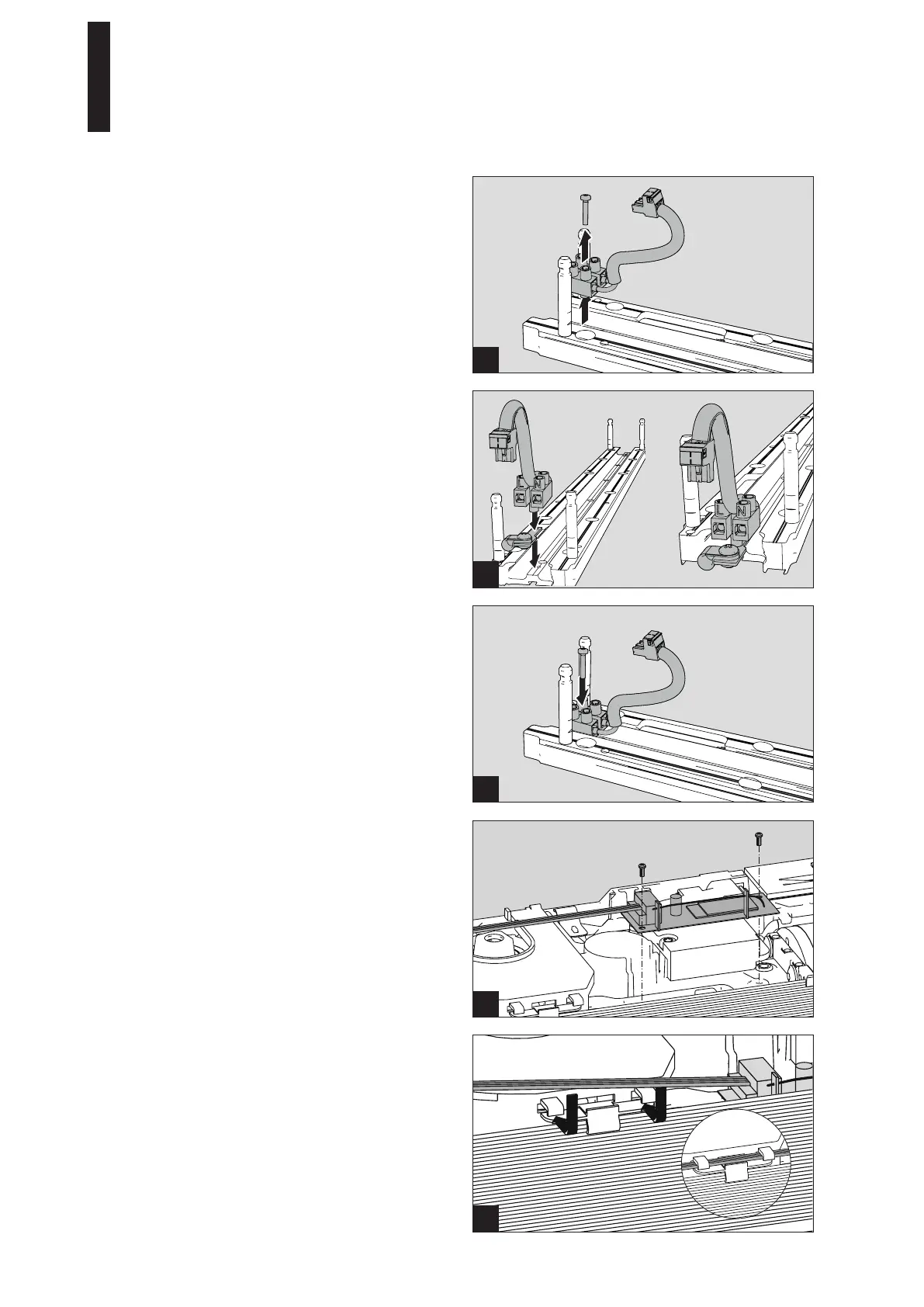

3. Place the strain relief beneath the mains connection.
4. Screw the mains connection and the strain relief to the
mounting plate.
5.2. Installing Strain Relief (Optional)
1. Install the strain relief before fixing the mounting plate
to the door / wall.
2. Remove the screw and take the mains connection off
the mounting plate.
2
1
2. Guide the line through the bracket.
5.3 Installing the Radio Receiver (Optional)
1. Screw the radio receiver PCB onto the drive.
ED 100, ED 250
—
16 DORMA
