DORMA AUTOMATICES, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211 Subject to change without notice
DL3463-050 08/2016 Lake Bluff, IL 60044 Fax: 847-249-3999
ED100 / ED250 SERVICE MANUAL
—
11

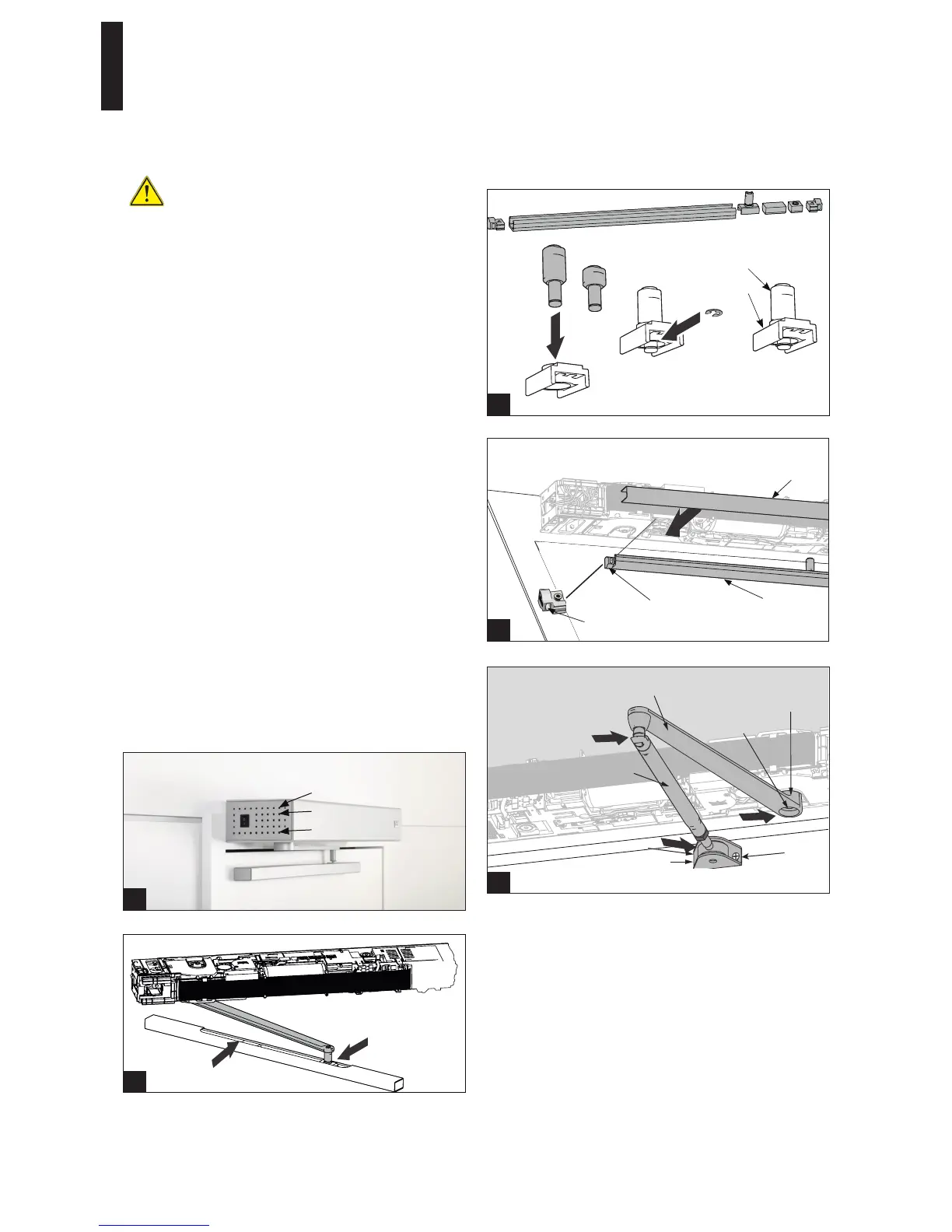

C. Maintenance
Power switch must be in OFF position before any
maintenance work can be performed!
Service interval indicator
1.1 Yellow LED on power switch side of operator is service
interval indicator. Operator system should be scheduled
for service when yellow LED is first illuminated, or
annually, whichever occurs first. Contact the local Dorma
service company.
1.2 The following standards recommend periodic
maintenance and inspection to ensure compliance:
ANSI/BHMA A156.10-2011 – ANSI standard for power
power operated pedestrian doors
ANSI/BHMA A156.19-2013 – ANSI standard for power
assist and low energy power operated doors
Maintenance
Inspection by Dorma service should include, as a minimum:
2.1 Track (slide channel)
Check for wear.
Check for wear or damage at moving joints.
3.1 Slide shoe
Check for wear and excessive play.
4.1 Track mounting
Check tightness of track mounting screws.
5.1 Standard arm
Check for wear or damage at moving joints.
Check tightness of arm shoe mounting screws.
Check tightness of self-locking screw securing drive arm to
drive axle.
Green LED
Yellow LED
Red LED
1
2
1. Pivot pin
2. Slide shoe
1
2
3
Cover
Fixing piece
Fixing piece
mounting hole for track mounting screw
Track
4
5
Mounting screw
Mounting screw
Drive axle
Adjustment screw
Shoe
Drive arm
Self locking screw
