ED100 / ED250 SERVICE MANUAL
—
23

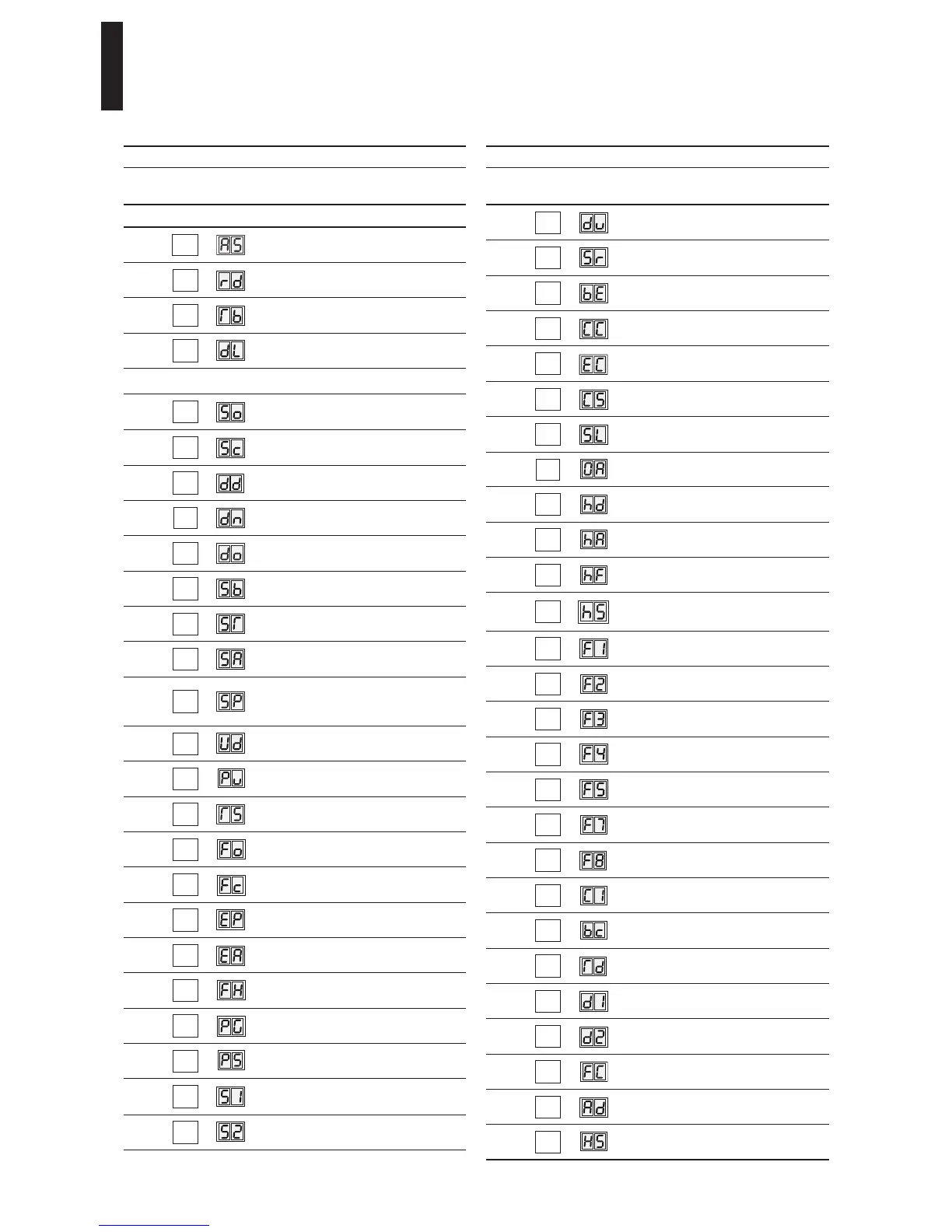

List of parameters
Reference:
number-display
Display Description
Configuration parameters
1
AS
Installation type
2
rd
Reveal depth
3
Tb
Door width
4
dL
Door type
Driving parameters
5
So
Opening speed
6
Sc
Closing speed
7
dd
Hold-open time
8
dn
Night/bank hold-open time
9
do
Hold-open time in event of
manual opening
10
Sb
Wall masking on hinge side
11
ST
Safety sensor test
12
SA
Activation by safety sensor on
approach (opposite hinge) side
13
SP
Suppression of safety sensor on
swing (hinge) side during initial
movement
14
Ud
Delayed opening for locking
mechanism
15
Pu
Door preload prior to unlocking
16
TS
PR (Power Reserve) module test
17
Fo
Static force in opening direction
(basic parameter for wind load control)
18
Fc
Static force in closing direction
(basic parameter for wind load control)
19
EP
Automatic mode - motor-driven
latching action
20
EA
Latching action angle
21
FH
Keep-closed force
22
PG
Push & Go
23
PS
Program switch type
24
S1
EPS DCW – switch behavior
following a power reset
25
S2
Internal program switch – switch
function on delay
18 Parameterization / service
List of parameters
Reference:
number-display
Display Description
26
du
Unlocking during business hours
27
Sr
Status relay function–
terminal block X7
28
bE
Locking device output 1g, with input
4/4a
29
CC
Cycle counter
30
EC
Delete error log
31
CS
Reset service interval display
(yellow LED)
32
SL
Factory setting level
33
OA
Opening angle
34
hd
Door closer mode
35
hA
Power assist function activation angle
36
hF
Power assist function force adjustment
37
hS
Power assist function – support for
manual mode in the "closed" position
38
F1
Upgrade card – Fire protection
39
F2
Upgrade card – Full energy
40
F3
Professional upgrade card –
Flip flop function
41
F4
Professional upgrade card –
extended hold time
42
F5
Professional upgrade card –
nurse /bed function
43
F7
Upgrade card – "restroom for the
handicapped"
44
F8
Upgrade card – DCW
45
C1
Configuration of COM1 interface
(upright connector)
46
bc
Back check when door is opened by
hand
47
Td
Door thickness
48
d1
Deactivation of drive function in
effective direction (v1.7)
49
d2
Night/Bank effective direction (v1.7)
50
FC
Trigger the hold-open system by
manually closing door panel (v1.7)
51
Ad
Castor angle for double door systems
52
HS
Hinge clearance
